NO. Part No. Chinese Name Part Name 1 DZ9114313168  传动轴 Transmission shaft 2 Q151B1455TF3  六角头螺栓 Hexagon headed bolt 3 1.90004E+11 自锁螺母 Self lock nut 1 DZ9114313164  传动轴 Transmission shaft

NO. Part No. Chinese Name Part Name 1 DZ95189582210 组合仪表（CMIC） Customized modular instrument cluster   DZ93189582230 组合仪表（VDO） Instrument cluster   DZ93189582240 组合仪表（ 步进电机） Instrument cluster   DZ93189582270 组合仪表(ISM) Instrument cluster 2 06.13189.0039 簧片螺母 Reed nut 3 Q2714219 十字槽盘头自攻螺钉 Screw 4 DZ95189584615 电动后视镜堵盖 Plug 5 81.25505.0989 门灯开关 Door lamp switch 6 81.61930.6070 室内温度传感器...

NO. Part No. Chinese Name Part Name 1 Q2140508 十字槽盘头螺钉 Screw 2 Q40305 弹簧垫圈 Spring washer 3 Q40005 小垫圈 Small washer 4 81.25509.0124 组合开关 Combination switch 5 81.46433.6009 方向盘锁总成 Steering lock assembly

NO. Part No. Chinese Name Part Name 1 DZ93189360153 手阀堵盖 Cap 2 DZ93259360150 手阀护罩带杯托总成 Hand brake valve cap 3 Q150B0815 六角头螺栓 Hex.screw 4 DZ93189360054 手制动阀支架总成 Hand brake valve bracket 5 DZ93189360061 手制动阀 Hand brake valve 6 81.98181.6125 固定板 Plate

NO. Part No. Chinese Name Part Name 1 DZ93259360150 手阀护罩带杯托总成 Hand brake valve cap 2 Q150B0815 六角头螺栓 Hex.screw 3 DZ93189360054 手制动阀支架总成 Hand brake valve bracket 4 DZ93189360061 手制动阀 Hand brake valve 5 DZ93189360062 挂车手制动阀 Tractor hand brake valve 6 81.98181.6125 固定板 Plate

NO. Part No. Chinese Name Part Name 1  DZ95189580101 中文标志牌(WP 系列) Chinese scutcheon(WP       serial)   DZ95189580102 中文标志牌(ISM 系列) Chinese scutcheon(ISM       serial)   DZ95189580104 中文标志牌（WP 系列/CBCU） Chinese scutcheon(WP       serial/CBCU)   DZ95189580111 英文标志牌（WP 系列） English scutcheon(WP       serial)   DZ951895...

NO. Part No. Chinese Name Part Name 1 07.91203.0106 连接片 Connecting piece 2 81.66818.0002 熔断丝插拔器 Insert pull tools 3 81.25902.0410 继电器 Relay 4 81.25902.0459 继电器 Relay 5 81.25902.0460 继电器（转换式） Relay(transition) 6 07.91203.0104 连接片（长） Connecting piece (long) 7 81.25902.0317 中央继电器 Center relay 8 81.25927.0107 二极管 Diode 9 81.25436.0065 红色熔断丝 Red fuse   81.25436.0066 蓝色熔断丝 Blue fuse   81.25436...

NO. Part No. Chinese Name Part Name 1 81.25444.6060 中央电器装置板 Center electric panel 2 81.25908.0010 两孔连接片 Connecting plate 3 Q340B06 1 型六角螺母 Hex nut 4 DZ95189583640 电器装置板安装支架总成 Center electric panel       bracket assembly   DZ95189583650 电器装置板支架总成 Center electric panel       bracket assembly 5 Q40104T16F9 平垫圈 Flat washer 6 06.07151.1503 十字槽盘头自攻螺钉 Screw 7 Q40206 大垫圈...

NO. Part No. Chinese Name Part Name 1 DZ9112312XXX 中间传动轴 Intermediate drive shaft 2 1491.707-2205062-B 突缘叉 Flange fork 3 1491.707-2205063 卡环 Snap ring 4 1491.707-2205080 十字轴总成 Cross axis assembly 5 1491.707-2205096 万向节叉 Universal joint fork     轴管（规格：Φ104x8） Shaft tube (size: 104x8) 6 99114310100-2204055 橡胶圈 Rubber ring 7 99114310100-2204016-A 中间轴头 Intermediate shaft 8 99114310100-220405...

NO. Part No. Chinese Name Part Name 1 DZ9112313XXX 中间传动轴 Intermediate drive shaft 2 395.411.08.11-B 突缘叉 Flange fork 3 006.994.29.41 卡环 Snap ring 4 HWJ-3276-00 十字轴总成 Cross axis assembly 5 395.411.09.05-A 万向节叉 Universal joint fork     轴管（规格：Φ110x6） Shaft tube (size: 110x6) 6 P2214M-01 中间轴头 Intermediate shaft 7 2232Aa000-04 挡尘圈 Dust ring 8 99114310100-2204030-B 中间支撑总成 Intermediate support a...

NO. Part No. Chinese Name Part Name 1 DZ95189772113 左车门线束（ 电动玻璃升降器） Left door wiring (lifter)   DZ95189772112 右车门线束（ 电动玻璃升降器） Right door wiring 2 DZ9100776234 24V 收放机连接线 (lifter)   DZ9100776277 24V 收放机照明线 24V radio wiring 3 81.25417.6442 雨刮电机电线束 24V radio light wiring 4 DZ93189773412 工作照明灯驾驶室电线束 Washing wiring 5 DZ9100776102 ABS 驾驶室电线束 Floodlight cab wiring 6 DZ93189773010 ABS 驾驶室电线束（CAN...

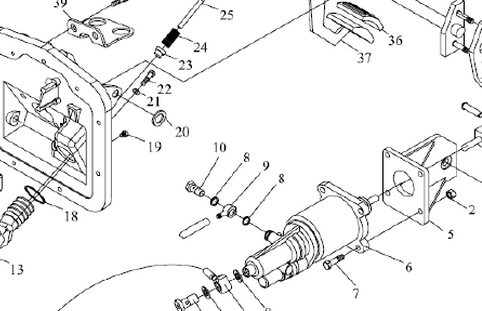

NO. Part No. Chinese Name Part Name 1 DZ9112230020 分离摇臂 Release arm 2 Q33210 II 型全金属锁紧螺母 Nut 3 Q40314 弹簧垫圈 Spring washer 4 Q151B1435 六角头螺栓 Hex. screw 5 DZ9112230029 离合器分泵支架 Bracket 6 DZ9112230166 离合器分泵 Operating cylinder 7 Q150B1045 六角头螺栓 Hex. screw 8 Q72314 T5F 密封垫圈 Gasket 9 1.991E+11 软管接头 Hose plug 10 SXQ84310 空心螺栓 Hollow bolt 11 DZ9112230011 油管 Hose 12 DZ9112230212 卡环 Spring 13 DZ9114230022 离合器...

  NO. Part No. Chinese Name Part Name 1 1.792E+11 带纤维夹层的橡胶软管 Rubber hose 2 Q676B25 C 型蜗杆传动式软管环箍 Clip 3 250-3408017 空心螺栓 Hollow screw 4 Q72318 垫圈 Washer 5 DZ9100470013 旋转管接头 Nozzle 6 1.90004E+11 空心螺栓 Hollow screw 7 DZ9100470383 压油管总成 Delivery line 8 DZ91189470003 聚氨脂软管总成 Pipe 9 DZ91189470015 聚氨脂软管总成 Pipe 10 DZ9118470190 转向油罐总成 Steering oil tank assy 11 DZ9100470040 油罐支架总成 Oil tank bracket assy...

NO. Part No. Chinese Name Part Name 1 DZ9114470075 循环球式动力转向器 Steering gear 2 DZ95259470009 转向摇臂 Pitman arm 3 Q151B2040TF2 六角头螺栓 Hex screw 4 DZ95259470029 转向器支架 Bracket 5 1.90004E+11 自锁螺母 Locking nut 6 Q151B1470TF2 六角头螺栓 Hex screw 7 DZ9100430011 转向直拉杆 Drag link 8 DZ9118430026 转向中间拉杆 Drag link 9 Q5006356 开口销 Uncork pin 10 81.90610.0031 六角开槽螺母 Hexagon slotted nut 11 81.90713.0837 垫圈 Washer 12 81.9300...

  NO. Part No. Chinese Name Part Name 1 DZ9114470075 循环球式动力转向器 Steering gear 2 Q151B2040TF2 六角头螺栓 Hex screw 3 DZ95259470009 转向摇臂 Pitman arm 4 DZ95259470029 转向器支架 Bracket 5 06.11251.2005 自锁螺母 Locking nut 6 Q151B1435TF2 六角头螺栓 Hex screw 7 Q151B1445TF2 六角头螺栓 Hex screw 8 81.46610.6780 转向拉杆 Drag link 9 81.46610.6791 转向拉杆 Drag link 10 Q5006356 开口销 Uncork pin 11 81.90610.0031 六角开槽螺母 Hexagon slotted n...

NO. Part No. Chinese Name Part Name 1 DZ95259521411 前簧前支架 Front Leaf -spring Bracket 2 Q33010T13F2 全金属六角法兰面锁紧螺母 Hex locked-metal nut with frange 3 Q150B1090TF2 六角头螺栓 Hexagon Bolt 4 81.41304.0053 轴套 Bush 5 81.43402.6142 前板簧总成 Front Leaf-spring Assembly 81.43402.6115 前板簧总成 Front Leaf-spring Assembly 6 06.11289.0003 台肩螺母 Nut 7 06.02839.0021 六角头螺栓M24*2*160 Hex Bolt M24*2*160 81.90490.0622 螺栓 Bolt 8 81...

NO. Part No. Chinese Name Part Name 1 Q1811440T 六角法兰面承面带齿螺栓 Hex bolt with flange & teeth 2 190004000000 自锁螺母 Self-locking Nut 3 DZ95189680011 减振器 Shocker   DZ95259680012 减振器 Shocker 4 Q151B16100 六角头螺栓 Hex Bolt 5 81.43740.0171 减振器支架 Shocker Assembly 6 Q151B24115TF2 六角头螺栓 Hex Bolt 7 06.11251.2005 六角自锁螺母 Hex Self-locking Nut     M14X1.5-10-MAN183-B1 M14X1.5-10-MAN183-B1 8 81.97485....

NO. Part No. Chinese Name Part Name 1 81.43715.6063 横向稳定杆总成 Transverse Stabilizer Rod 2 1.90004E+11 自锁螺母 Self-locking Nut 3 06.11251.2005 六角自锁螺母 Self-locking Nut M14X1.5-10-MAN183-B1 M14X1.5-10-MAN183-B1 4 Q1811435T 六角法兰面承面带齿螺栓 Hex bolt with flange & teeth 5 81.90010.0034 导颈螺栓 Guide Bolt 6 81.43718.6021 支承板总成 Supporting Panel 7 1.90004E+11 自锁螺母 Self-locking Nut 8 85.90010.0002 定位螺栓M16*1.5*85 P...
