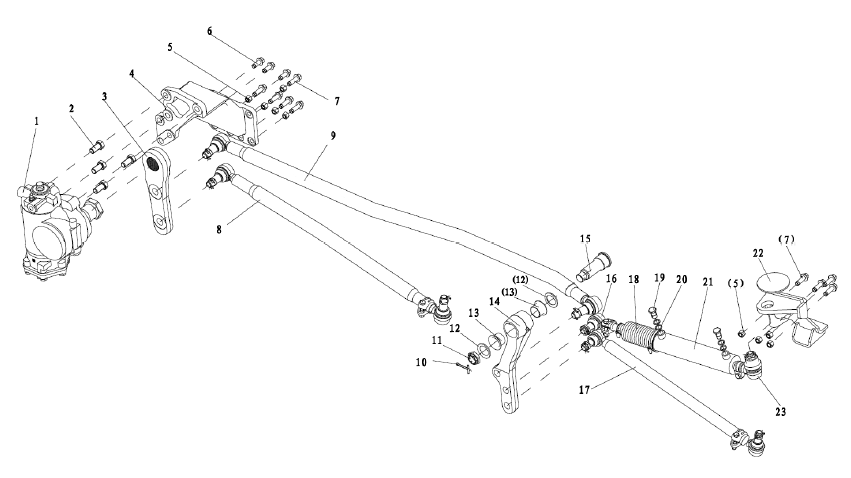

NO. |
Part No. |
Chinese Name |
Part Name |
|
1 |
DZ9114470075 |
循环球式动力转向器 |
Steering gear |
|
2 |
Q151B2040TF2 |
六角头螺栓 |
Hex screw |
|
3 |
DZ95259470009 |
转向摇臂 |
Pitman arm |
|
4 |
DZ95259470029 |
转向器支架 |
Bracket |
|
5 |
06.11251.2005 |
自锁螺母 |
Locking nut |
|
6 |
Q151B1435TF2 |
六角头螺栓 |
Hex screw |
|
7 |
Q151B1445TF2 |
六角头螺栓 |
Hex screw |
|
8 |
81.46610.6780 |
转向拉杆 |
Drag link |
|
9 |
81.46610.6791 |
转向拉杆 |
Drag link |
|
10 |
Q5006356 |
开口销 |
Uncork pin |
|
11 |
81.90610.0031 |
六角开槽螺母 |
Hexagon slotted nut |
|
12 |
81.90713.0837 |
垫圈 |
Washer |
|
13 |
81.93001.0319 |
套筒 |
Sleeve |
|
14 |
81.46720.0111 |
操纵杆 |
Pitman arm |
|
15 |
DZ9118470605 |
销轴 |
Pin spindle |
|
16 |
DZ95319470003 |
球接头 |
Ball joint |
|
17 |
81.46610.6798 |
转向拉杆 |
Drag link |
|
18 |
DZ93319470015 |
油缸护套 |
Hydraulic cylinder jacket |
|
19 |
1900040000000 |
空心螺栓 |
Hollow screw |
|
20 |
Q72318T5F |
密封垫圈 |
Seal-washer |
|
21 |
DZ95319470001 |
液压油缸 |
Hydraulic cylinder |
|
22 |
81.47505.5023 |
左支板总成 |
Left board assy |
|
23 |
81.95301.6225 |
球接头 |
Ball joint |
