FRONT AXLE

Product catalog

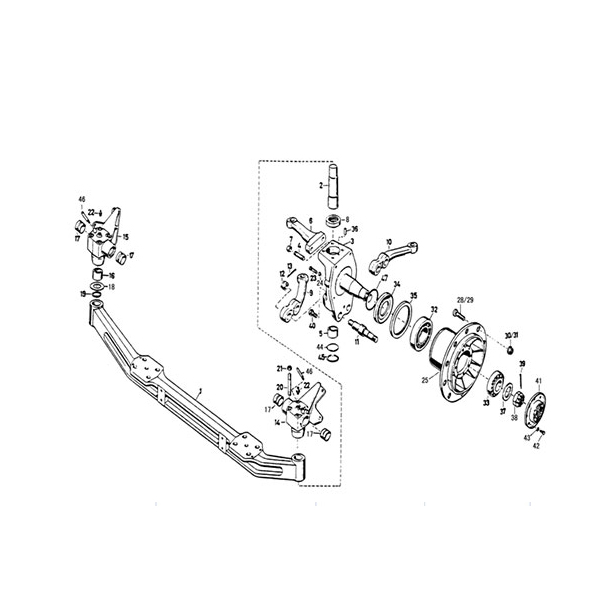

FRONT AXLE

FRONT AXLE
2016-09-27

NO. Part No. Part Name Quantity 0 AH71141.00705 HOWO front steering axle 1 1 AZ9719410103 Front axle HOWO 1 1/1 WG9719410054 Front axle 1 2 WG880 410031 Knuckle pin 2 3 199112410057 Left knuckle assembly 1 3a 199112410058 Right knuckle assembly 1 4 WG880 410060 Stud 4 5 WG880 410029 Bushing 2 5/A WG9100410129 Bushing 2 6 AZ9719410001 Steering knuckle Arm 1 6/A WG9719410001...
read more

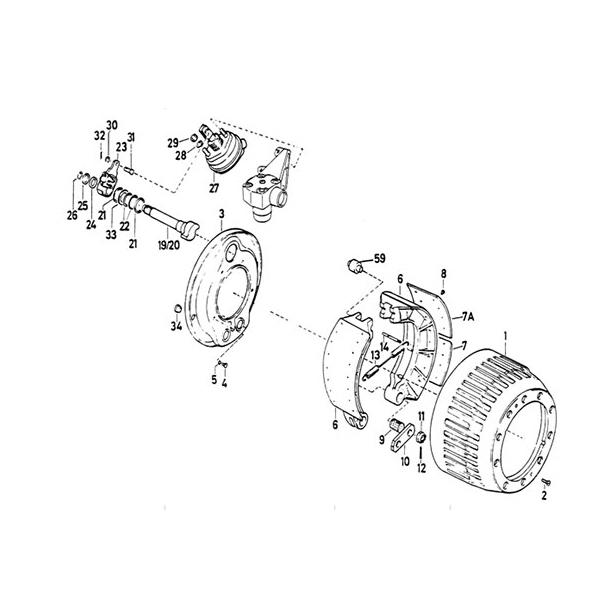

FRONT WHEEL BREAK
2016-09-27

NO. Part No. Part Name Quantity 1 WG9112440001 Brake drum 2 2 Q2541025 Bolt 4 3 1880 440007 Dust shield 2 4 Q150B0816 Screw 8 5 Q40308 Shim 8 6 199000440031 Brake shoe C 4 6/A WG9100440030 Brake shoe C(Incl.6-1,7,7A,8) 4 6/1 AZ9100440018 Brake shoe 4 7 WG9100440029 T brake lining 4 7A WG9100440027 T brake lining 4 8 189000340068 Rivet 56 9 WG880 440006 Bushing 4 10 WG880 4...
read more
THE ROD
2016-09-27

THE ROD/钢性前桥转向横拉杆 D NO. Part NO. Part Name Quantity 0 AZ9112430003 Tie rod C 1 0/A AZ9700430050 Tie rod 1 2 AZ9112430003-1 Tie rod 1 2/A AZ9700430050-1 Tie rod 1 7 Q387B20T15 Gastle nut 1 8 Q5004036 Cotter pin 1 10 AZ9112430003-4 Ball joint Right 1 10/A AZ9700430050-4 Ball joint Right 1 11 AZ9112430003-11 Ball joint Left 1 11/A AZ9700430050-11 Ball joint Left 1 12 AZ9112430003-1...
read more
