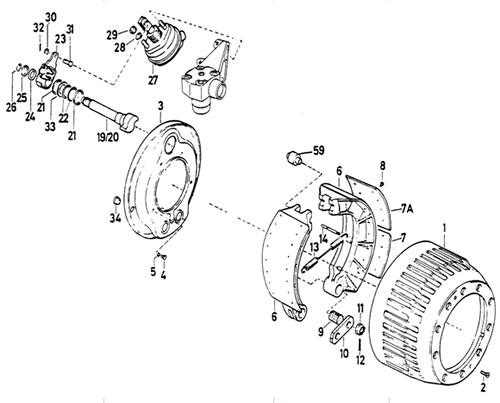

| NO. | Part No. | Part Name | Quantity |
| 1 | WG9112440001 | Brake drum | 2 |
| 2 | Q2541025 | Bolt | 4 |
| 3 | 1880 440007 | Dust shield | 2 |
| 4 | Q150B0816 | Screw | 8 |
| 5 | Q40308 | Shim | 8 |
| 6 | 199000440031 | Brake shoe C | 4 |
| 6/A | WG9100440030 | Brake shoe C(Incl.6-1,7,7A,8) | 4 |
| 6/1 | AZ9100440018 | Brake shoe | 4 |
| 7 | WG9100440029 | T brake lining | 4 |
| 7A | WG9100440027 | T brake lining | 4 |
| 8 | 189000340068 | Rivet | 56 |
| 9 | WG880 440006 | Bushing | 4 |
| 10 | WG880 440008 | Washer | 2 |
| 11 | Q381B24 | Castle nut | 4 |
| 12 | Q5005045 | Cotter pin | 4 |
| 13 | 2258W803 | Return spring | 2 |
| 13/A | AZ9100440061 | Return spring | 2 |
| 14 | WG1218G85 | Return spring pin | 4 |
| 15 | 199112440018 | Bushing | 4 |
| 19 | WG9100440001 | Camshaft(left) | 1 |
| 20 | WG9100440002 | Camshaft(right) | 1 |
| 21 | WG880440010 | Washer | 4 |
| 21 | WG9100440011 | Washer | 4 |
| 21 | WG9100440012 | Washer | 4 |
| 22 | WG880340023 | O seal ring | 4 |
| 23 | WG9100440005 | Slack adjuster | 2 |
| 24 | WG880340022 | Shim | 2 |
| 25 | WG80 320028 | Shim | nb |
| 25 | WG80 320029 | Shim | nb |
| 25 | WG80 320030 | Shim | nb |
| 25 | WG80 320046 | Shim | nb |
| 26 | 190003933116 | Washer | 2 |
| 27 | WG9000360100 | Diaphragrm cyl. left | 1 |
| 27a | WG9000360101 | Diaphragrm cyl. Right | 1 |
| 28 | Q41216 | Shim | 4 |
| 29 | Q340B16 | Nut | 4 |
| 30 | Q40114 | Flat shim | 2 |
| 31 | 190003903661 | Pin | 2 |
| 32 | Q5004022 | Cotter | 2 |
| 33 | WG880440015 | Spacers | 2 |
| 34 | WG880340037 | Plug | 4 |
| 59 | 199000340027 | Roller | 4 |
| 59/A | WG9100440021 | Roller | 4 |
