2015-10-19 14:31:31
|

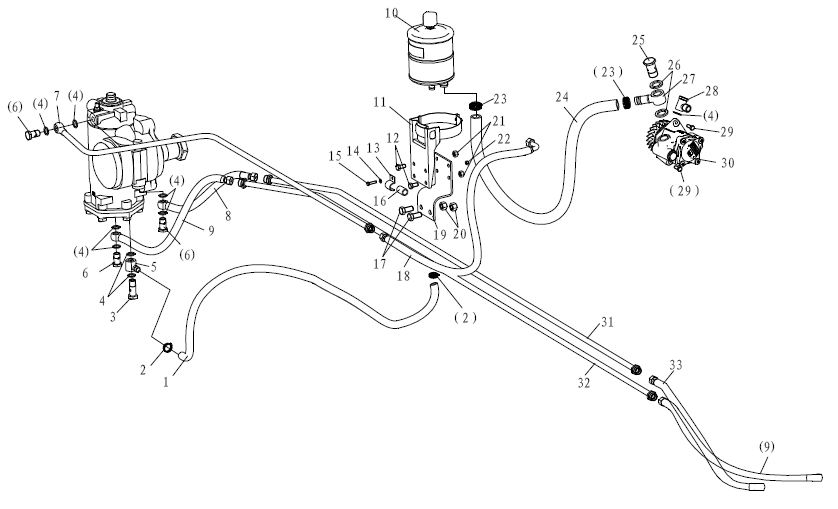

NO. |
Part No. |
Chinese Name |
Part Name |
|
1 |
1.792E+11 |
带纤维夹层的橡胶软管 |
Rubber hose |
|
2 |
Q676B25 |
C 型蜗杆传动式软管环箍 |
Clip |
|
3 |
250-3408017 |
空心螺栓 |
Hollow screw |
|
4 |
Q72318 |
垫圈 |
Washer |
|
5 |
DZ9100470013 |
旋转管接头 |
Nozzle |
|
6 |
1.90004E+11 |
空心螺栓 |
Hollow screw |
|
7 |
DZ9100470383 |
压油管总成 |
Delivery line |
|
8 |
DZ91189470003 |
聚氨脂软管总成 |
Pipe |
|
9 |
DZ91189470015 |
聚氨脂软管总成 |
Pipe |
|
10 |
DZ9118470190 |
转向油罐总成 |
Steering oil tank assy |
|
11 |
DZ9100470040 |
油罐支架总成 |
Oil tank bracket assy |
|
12 |
Q150B1020 |
六角头螺栓 |
Hex screw |
|
13 |
1.38091E+11 |
管夹 |
Clamp |
|
14 |
Q40106 |
平垫圈 |
Washer |
|
15 |
Q150B0625TF2 |
六角头螺栓 |
Hex screw |
|
16 |
1.61E+11 |
橡胶软管 15/21 |
Nipple |
|
17 |
Q150B1430TF2 |
六角头螺栓 |
Hex screw |
|
18 |
DZ9100470108 |
高压软管 |
Pipe |
|
|
DZ9100470106 |
高压软管 |
Pipe |
|
19 |
DZ9100470380 |
油罐支架 |
Oil tank bracket |
|
20 |
Q33214 |
六角锁紧螺母 |
Locking nut |
|
21 |
Q33210 |
六角锁紧螺母 |
Locking nut |
|
22 |
Q33206 |
六角锁紧螺母 |
Locking nut |
|
23 |
Q67632 |
B 型蜗杆传动式软管环箍 |
Clip |
|
24 |
1.691E+11 |
成形软管 |
Hose |
|
|
DZ9100470044
|
成形软管 |
Hose |
|
25 |
190003962651
|
空心螺栓 |
Hollow
screw |
|
26 |
190003098031
|
密封垫圈 |
Seal-washer |
|
27 |
199100470076
|
环形接头 |
Nipple |
|
28 |
199100470110
|
旋转管接头 |
Screwing |
|
29 |
Q150B0830TF2
|
六角头螺栓 |
Hex screw |
|
30 |
DZ95319130001 |
转向油泵 |
Pump |
|
|
DZ9100130008
|
转向油泵 |
Pump |
|
|
DZ9100130045
|
转向油泵 |
Pump |
|
31 |
DZ9118470624
|
压油管总成 |
Delivery
line |
|
32 |
DZ9118470626
|
压油管总成 |
Delivery
line |
|
