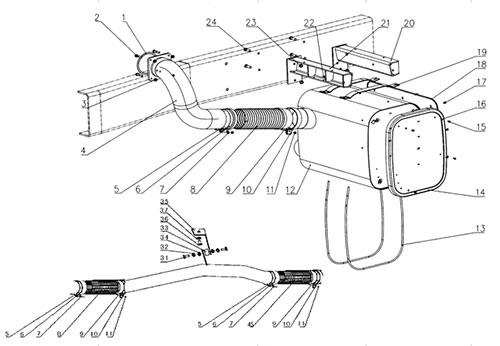

| NO. | Part No. | Part Name | Quantity |
| 1 | AZ9719540019 | Gasket | 1 |
| 2 | Q150B1045 | Screw | 4 |
| 4 | WG9719540012 | Exhaust line | 1 |
| 4/A | WG9725541041 | Exhaust line | 1 |
| 1/5 | Q150B0830 | Screw | 2 |
| 5/A | Q150B0845 | Screw | 2 |
| 6 | WG9719540016 | Clamp | 1 |
| 7 | Q33208 | Nut | 2 |
| 8 | WG9725540053 | Corrugated flexible metal tube | 1 |
| 9 | Q150B0830 | Screw | 1 |
| 9/A | Q150B0845 | Screw | 1 |
| 10 | AZ9719540018 | Clamp | 1 |
| 10/A | WG9725540009 | Clamp | 1 |
| 11 | Q33208 | Nut | 1 |
| 12 | WG9725540060 | Muffler | 1 |
| 13 | AZ9719540008 | Strap | 2 |
| 14 | WG9719540025 | Garnish plate | 1 |
| 15 | Q150B0620 | Screw | 4 |
| 16 | Q40306 | Spring washer | 4 |
| 17 | Q150B0610 | Screw | 9 |
| 18 | WG9719540017 | Heat shield | 1 |
| 19 | AZ9719540007 | Stop plate | 2 |
| 20 | AZ9719540002 | Rear bracket | 1 |
| 21 | AZ9719540003 | Front bracket | 1 |
| 22 | Q33208 | Nut | 4 |
| 23 | Q33212 | Nut | 4 |
| 24 | Q150B1235 | Screw | 4 |
| 36 | AZ9718360009 | Rubber bush | 1 |
| 37 | WG9725540009 | Clamp | 1 |
