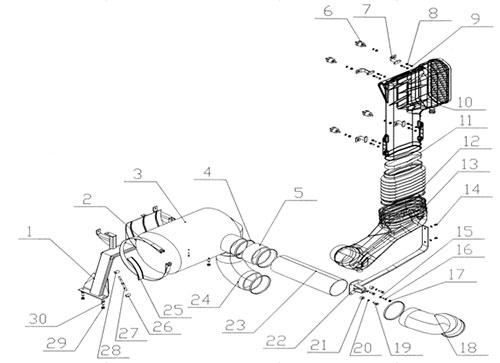

| NO. | Part No. | Part Name | Quantity |
| 1 | WG9719190002 | supporter | 1 |
| 2 | WG9100190026 | strap | 1 |
| 3 | WG9719190001 | air filter | 1 |
| 3/1 | WG9719190001-1 | air filter element | 1 |
| 4 | AZ9003980025 | clamp | 6 |
| 5 | WG9719190046 | hose | 1 |
| 6 | WG9725190004 | rubber block | 4 |
| 7 | WG9725190003 | bracket | 4 |
| 8 | Q1840825 | screw | 8 |
| 8/A | Q150B0825 | screw | 8 |
| 9 | Q33208 | nut | 8 |
| 10 | WG9725190002 | air intake line I | 1 |
| 10/A | WG9725190001 | air intake line I | 1 |
| 11 | WG9725190007 | strap | 1 |
| 12 | WG9725190008 | siphon | 1 |
| 13 | WG9725190009 | air intake line II | 1 |
| 14 | Q150B0810 | screw | 2 |
| 14/A | Q150B0815 | screw | 2 |
| 15 | Q150B0825 | screw | 1 |
| 16 | Q40108 | washer | 7 |
| 17 | Q33008 | nut | 5 |
| 18 | WG9719190009 | hose | 1 |
| 19 | Q150B1030 | screw | 3 |
| 20 | Q40310 | spring washer | 3 |
| 21 | 1113 010043 | spacer | 3 |
| 22 | WG9725190010 | bracket | 1 |
| 23 | WG9719190050 | pipe | 1 |
| 24 | WG9719190008 | hose | 1 |
| 25 | 199100190065 | sheet | 1 |
| 26 | 1280 550028 | bolt | 1 |
| 27 | 1280 550029 | screw | 1 |
| 28 | 1280 550027 | bolt | 1 |
| 29 | Q33212 | nut | 4 |
| 30 | Q150B1235 | screw | 4 |
| 40 | WG1200190040 | Sensor | 1 |
