WD615 SERIES

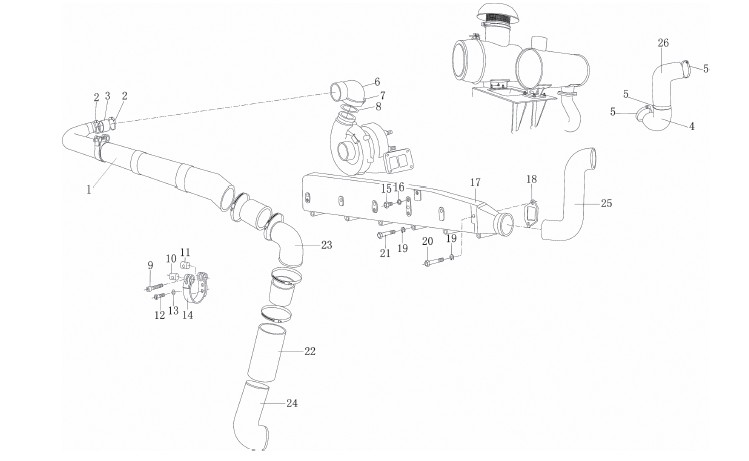

AIR INTAKE EXHAUST MANIFOLD(2)

2016-10-14 09:33:17

 NO. Part No. Chinese Name Part Name
1 612600110442 中冷器上进气管 Pipe
2 90003989312 软管卡箍 Clamp
3 89200530051 带纤维夹层橡胶软管 Pipe
4 612600110794 进气弯管组件 Pipe
5 90003989318 软管卡箍 Clamp
90003989315 软管卡箍 Clamp
6 61560110165 连接弯管 Pipe
6180110045 进气接管 Pipe
612600110407 连接弯管 Pipe
7 61560110226 夹子 Clip
8 190320035 密封圈 Seal ring
9 90003862462 内六角圆柱头螺钉 Screw
10 20190017 拉紧销 Pin
11 1700550013 张紧销 Pin
12 90003802415 六角头螺栓 Bolt
90003802411 六角头螺栓 Bolt
13 609E110036 调整垫圈 Washer
14 61560110021 卡箍带 Clamp
15 90003962014 六角头螺塞 Plug
16 90003098010 密封垫圈 Seal ring
17 612600110191 进气管总成 Air intake pipe ass'y
61560110131 进气管总成 Air intake pipe ass'y
18 61500110024 进气管垫片 Air intake pipe shim
19 90003932023 波形弹性垫圈 Spring washer
20 61500110013 进气管紧固螺栓 Bolt
614110064 六角头螺栓 Bolt
90003800497 六角头螺栓 Bolt
21 90003800465 六角头螺栓 Bolt
22 612600110443 中冷器下进气管 Pipe
23 612600110444 中冷器上进气弯管 Pipe
24 612600110439 中冷器下进气弯管 Pipe
25 612600110445 中冷器出气管 Pipe
26 612600110259 空滤器进气管 Pipe
612600110408 进气管组件 Pipe
612600110409 橡胶弯管 Pipe
