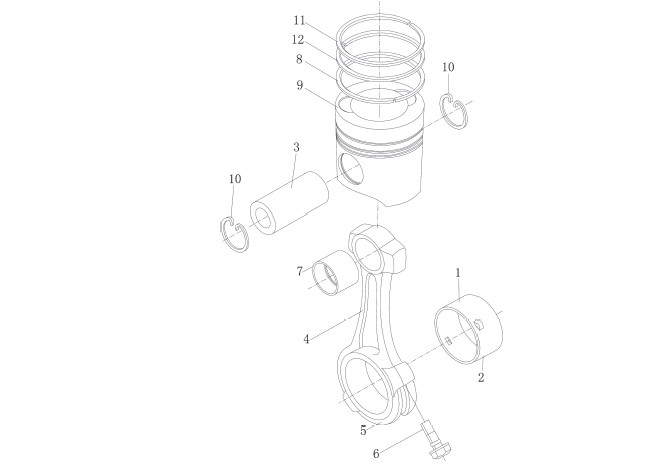

| NO. | Part No. | Chinese Name | Part Name |
| 1 | 61560030033 | 连杆轴瓦 | Shell pin |
| 2 | 612600030020 | 连杆轴瓦(上瓦) | Shell pin(upper) |
| 3 | 61560030013 | 活塞销 | Piston pin |
| 4 | 61500030008 | 连杆体 | Connecting rod |
| 5 | 61500030022 | 连杆盖 | Connecting cover |
| 6 | 81500030023 | 连杆螺栓 | Bolt |
| 7 | 61500030077 | 连杆衬套 | Bushing |
| 8 | 61560030045 | 油环 | Spiral spring oil ring |
| 9 | 612600030011 | 活塞 | Piston |
| 612600030007 | 活塞 | Piston | |
| 10 | 81560030012 | 活塞销挡圈 | Circlip |
| 11 | 61560030047 | 梯形环 | Iaddler ring |
| 12 | 612600030019 | 扭曲锥面环 | Conical ring |
