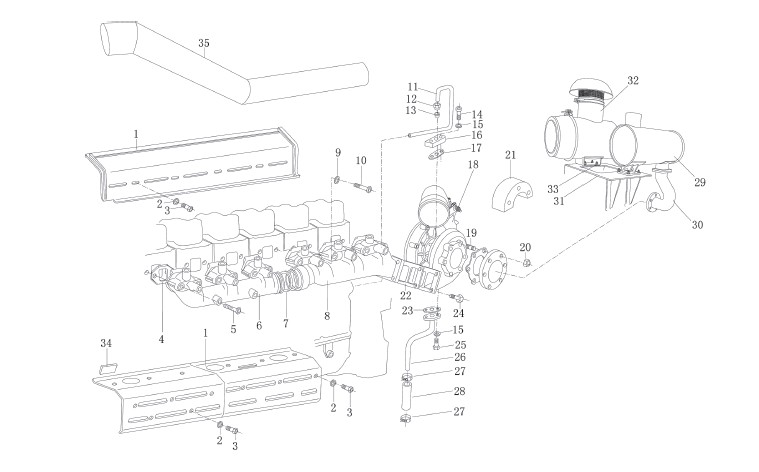

| NO. | Part No. | Chinese Name | Part Name |
| 1 | 612600110856 | 前隔热罩 | Front heat shield |
| 612600110857 | 后隔热罩 | Rear heat shield | |
| 2 | 90014320002 | 小垫圈 | Washer |
| 3 | 612600110961 | 螺栓 | Bolt |
| 612600110683 | 螺栓 | Bolt | |
| 4 | 615600110242 | 排气管垫片 | Exhaust shim |
| 5 | 61560110104 | 排气管紧固螺栓 | Bolt |
| 6 | 612600111290 | 前排气歧管 | Pipe |
| 7 | 61260110162 | 排气管密封环 | Seal ring |
| 8 | 612600110855 | 后排气歧管 | Pipe |
| 9 | 609090003 | 隔圈 | Thrust washer |
| 10 | 612600110252 | 排气管紧固螺栓 | Bolt |
| 11 | 61560070001 | 进油管 | Intake pipe |
| 12 | 90003559513 | 管接头螺母 | Nut |
| 13 | 90003559563 | 卡套 | Clip |
| 14 | 90003862428 | 内六角圆柱头螺钉 | Screw |
| 15 | 188250083 | 自锁垫圈 | Washer |
| 16 | 81560110152 | 进油管法兰 | Flange |
| 17 | 609E110050 | 进油管垫片 | Shim |
| 18 | 61560110227 | 废气涡轮增压器 | Turbocharger |
| 61561110227 | 废气涡轮增压器 | Turbocharger | |
| 61560113223 | 废气涡轮增压器 | Turbocharger | |
| 19 | 81560110187 | 双头螺柱 | Stud |
| 20 | 90003888470 | 2型全金属六角锁紧螺母 | Nut |
| 21 | 612600110759 | 隔热罩 | Heat shield |
| 22 | 61560110210 | 增压器垫片 | Shim |
| 23 | 612600110048 | 回油管法兰垫片 | Shim |
| 24 | 61560112241 | 六角头螺栓 | Bolt |
| 25 | 61460070014 | 回油管螺栓 | Bolt |
| 26 | 612600112294 | 回油管 | Oil pipe |
| 27 | 90003989340 | 软管卡箍 | Clamp |
| 28 | 612600070071 | 增压器回油用软管 | Pipe |
| 29 | 612600110108 | 消音器 | Silencer |
| 612600110496 | 消音器 | Silencer | |
| 30 | 612600110226 | 消音器进气管 | Pipe |
| 612600111024 | 消音器进气管 | Pipe | |
| 615G60110032 | 垫片 | Washer | |
| 61568D110002 | 排气管法兰垫片 | Washer | |
| 31 | 612600111059 | 支架 | Bracket |
| 612600111018 | 支架 | Bracket | |
| 612600111179 | 支撑板 | Plate | |
| 612600111027 | 空滤器支架 | Braket | |
| 32 | 612600110244 | 空滤器总成 | Air filter |
| 612600110411 | 空滤器总成 | Air filter | |
| 33 | 90003802523 | 六角头螺栓 | Bolt |
| 90003931122 | 弹簧垫圈 | Spring washer | |
| 90003871252 | 1型六角螺母 | Nut | |
| 90003930271 | 平垫圈 | Washer | |
| 90018240007 | 双环丝式环箍 | Clamp | |
| 34 | 612600111026 | 垫块 | Block |
| 90011270072 | 六角头螺栓全螺纹 | Bolt | |
| 35 | 612600111023 | 中冷前进气管 | Pipe |
| 99112530148 | 橡胶软管 | Pipe | |
| 90003989318 | 软管卡箍 | Clamp |
