NO. Part No. Part Name Chinese name 1 61560080219 Connector 弹性连接片 2 81560080273 Bush 衬套 3 90003802639 Bolt 六角头螺栓 4 90003871344 Nut 1 型六角螺母 5 AZ1560080001 Bolt 六角头螺栓 6 81560080271 Washer 垫圈 7 90003802637 Bolt 六角头螺栓 8 90003930282 Washer 平垫圈 9 81560080275 Flange 联轴器法兰组件 10 61560080194 Adjust plate 角度调整板 11 90003800160 Bolt 六角头螺栓...

 NO. Part No. Part Name Chinese name 1 61500080095 Oil line 回油管总成 2 90003098012 Seal washer 密封垫圈(波许系) 3 61560080284 Air pipe ass’y 空气管总成 4 90003962612 Bolt 空心螺栓(波许系) 5 90003962621 Boll 空心螺栓(波许系) 6 612600080200 Seal washer 密封垫圈 7 AZ1560080017 Fuel pipe 燃油管 8 90003962603 Bolt 空心螺栓 9 90003098008 Seal washer 密封垫圈   612600080201 Seal washer 密封垫圈 10 609080037 Bolt 空心螺栓 11 AZ1560080018 Fuel oil...

   NO. Part No. Part Name Chinese name 1 61500080095 Oil line 回油管总成 2 90003098012 Seal washer 密封垫圈(波许系) 3 61560080284 Air pipe ass’y 空气管总成 4 90003962612 Bolt 空心螺栓(波许系) 5 90003962621 Boll 空心螺栓(波许系) 6 612600080200 Seal washer 密封垫圈 7 AZ1560080017 Fuel pipe 燃油管 8 90003962603 Bolt 空心螺栓 9 90003098008 Seal washer 密封垫圈   612600080201 Seal washer 密封垫圈 10 609080037 Bolt 空心螺栓 11 AZ1560080018 F...

   NO. Part No. Part Name Chinese name 1 90003802578 Bolt 六角头螺栓 2 90003931122 Spring washer 弹簧垫圈 3 900033114lO Bearing 向心球轴承 4 90003934732 Snap ring 带凸齿的孔用挡圈 5 6140749 Ring 中间隔圈 6  61407006l Gear 机油泵中间齿轮 7 614070155 Seal ring 密封圈 8 6140756 Gear shaft 中间齿轮轴 9 90003800551 Bolt 六角头螺栓 10 AZl500070021A Oil pump 48mm 加宽机油泵 10-1 61500070029 Front cover 机油泵前盖 10-2 AZ1500070019A Gear assy 机油...

   NO. Part No. Part Name Chinese name 1 61560060072 Cover 盖 2 61560060074 Ring 防护圈 3 90003310067 Bearing 向心球轴承 4 612600060392 Tension pulley 张紧轮 5 61560060073 Spacer 隔套 6 61560060071 Pin 偏心销

   NO. Part No. Part Name Chinese name 1 612600060390 Belt 皮带轮 2 61500060248 Shaft 泵轴 3 61500060237 Ring 防护圈 4 90016040012 Bearing 圆柱滚子轴承 5 6150006025l Bush 支承套 6 90016020017 Bearing 深沟球轴承 7 61500060234 Pump body 水泵体 8 612600060538 Screw 紧定螺钉 9 612600060539 Water seal ass’y C16水封总成 10 61500060249 Bottom roller 水泵叶轮...

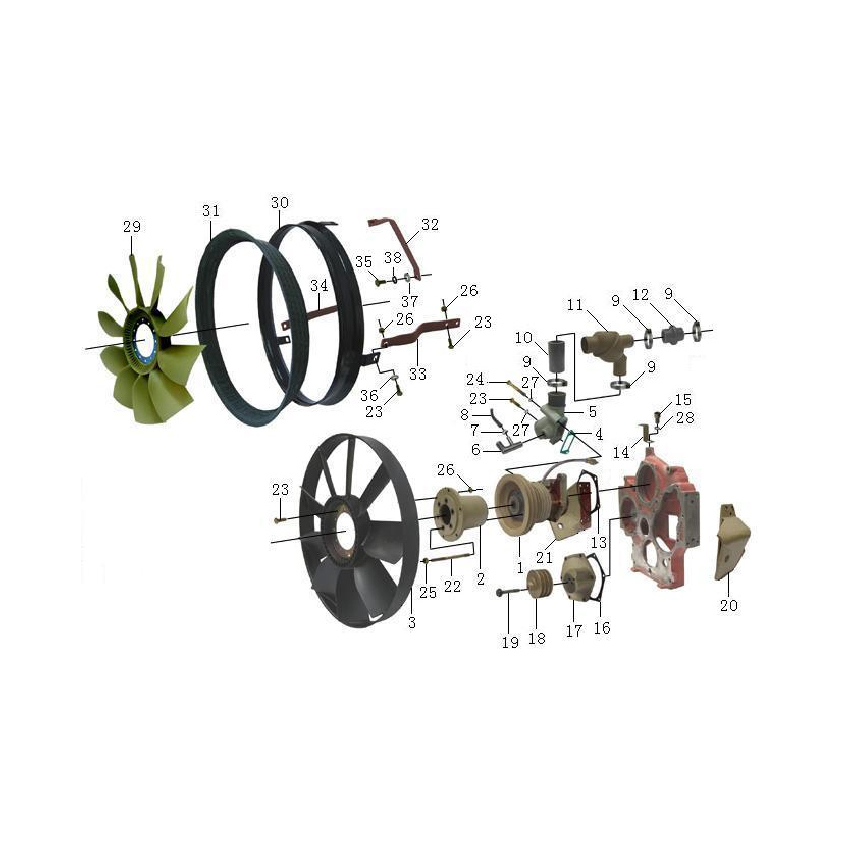

   NO. Part No. Part Name Chinese name 1 612600060398 Visw hub 硅油离合器风扇 2 61560060004 Ring 护风罩总成 3  AZ1560060016 Siphon 护风带总成 4 90003802424 Bolt 六角头螺栓 5 90003932023 Spring Washer 波形弹性垫圈 6 61560060012 Bracket 支架 7 90003888451 Nut 2 型全金属六角锁紧螺母 8 61560060010 Bracket 支架 9 90003871252 Nut 1 型六角螺母 10 90003811420 Stud 双头螺柱 11 61500060239 Flange 中间法兰 12  AZ1560060001 Pipe connector 管接头组...

   NO. Part No. Part Name Chinese name 1 90003871252 Nut 1 型六角螺母 2 90003932023 Spring washer 波形弹性垫圈 3 61560050046A Cover plate 盖板 4 90003813414 Stud 双头螺柱 5 90003120602 Seal ring 密封圈 6 61560050045 Snap plale 垫片 7 90003862419 Bolt 圆柱头内六角螺栓 8 61560050059 Bolt 六角头螺栓 9 6156000058 Shaft 轴 10 61560050053 Intermed wheel 中间齿轮总成 11 61560050044 Intermed wheel 中间齿轮轴 12 612600050073 Intake valve 进气门 ...

 NO. Part No. Part Name Chinese name 1 61200040034 Nut 带肩螺母 2 61200040023 Clip 夹紧块 3 90003800466 Bolt 六角头螺栓 4 90003932023 Spring washer 波形弹性垫圈 5 612600040149 Cover 气缸盖罩 6 614040021 Joint 气缸盖罩衬垫 7 90003989277 Cover plug 碗形塞片 8 90003989721 Cover plug 碗形塞片 9 90003989294 Cover plug 碗形塞片 10 612600040294 Cover 气缸盖 11 61500040049 Joint 气缸盖衬垫 11 612600040178 Joint 气缸盖衬垫 12 61560040057 Intake valve se...

   NO. Part No. Part Name Chinese name 1 61560030047 Double ladderring 梯形环 2 61560030078 Conical ring 锥面环 3 61560030045 Spiral spring oil ring 螺旋撑簧油环 4 612600030010 Piston 活塞   612600030011 Piston 活塞 5 61560030013 Piston pin 活塞销 6 81560030012 Ring 活塞销挡圈 7 61500030009 Connecting rod 连杆总成 7-1 61500030077 Connecting bush 连杆衬套 7-2 61500030008 Connector body 连杆体 7-3 61500030022 Connector...

   NO. Part No. Part Name Chinese name 1 90003802558 Bolt 六角头螺栓 2 61260002025l 汽车多楔带 3 612600020252 Belt pulley 皮带轮 4 61560020010 Vibration damper 减震器 5 90003960569 Key 普通平键 6 90003961504 Cylinderical pin 圆柱销 612600020311 Plug 堵塞 7 90003901418 Pin 圆柱销 8 61500020070 Flange 法兰 9 614020038 Crank shaft wheel 曲轴齿轮 10 61500020071 Crankshaft C 曲轴总成   61560020029 Crankshaft C 曲轴总成   61...

   NO. Part No. Part Name Chinese name 1 612G00040038 Hose 带纤维夹层橡胶软管 2 90003989336 Clamp 软管卡箍 3 90003802321 Bolt 六角头螺栓 4 90003931082 Spring washer 弹簧垫圈 5 90003936101 Washer 大垫圈 6 612600011422 Oil separator 油气分离器组件 7 90003989336 Clamp 软管卡箍 8 90003862427 Screw 圆柱头内六角螺钉 9 90003932023 Spring Washer 波形弹性垫圈 10 609E100049 Plate 固定板 11 612600011106 Hose 无纤维夹层橡胶软管 12 90003069303 Shim 垫片 13 900038...

  Pos. Teile.Number Designation Chinese name 1 612600010489 Cover 加油管盖组件 2 612600010522 Nozzle 加油管组件 3 90003888451 Nut 2 型全金属六角头锁紧螺母 4 90003989306 Clamp 软管卡箍 5 61500010079 Hose 带纤维夹层橡胶软管 6 61560010028 Nozzle 加油短管组件 7 90003802321 Bolt 六角螺栓 8 90003931082 Spring washer 弹簧垫圈 9 614010086 Joint 加油短管垫片 10 612600010639 Strut block 支撑块 11 612600010647 Clip 单管夹片 12 612600010638 Clamp 橡胶管箍 13 9000380241...

  Pos. Teile.Number Designation Chinese name 1 90003888451 Nut 2 型金属六角头螺母 2 90003813470 Stud 双头螺柱 3 90003871352 Nut 1 型六角头螺母 4 90003902023 Spring washer 波形弹簧性垫圈 5 90003813429 Stud 双头螺柱 6 612600010652 Cover 空压机齿轮盖 7 614010040 Shim 空压机齿轮盖垫片 8 90003888453 Nut 2 型金属六角头锁紧螺母 9 90003813638 Stud 双头螺拄 10 612600010932 Gear 正时齿轮室 11 90003802523 Bolt 六角头螺栓 12 90003901507 Pin 圆柱销 13 90003888452 Nut 2 型金属六...

   NO. Part No. Part Name Chinese name 1 612600011792 Crankcaase 气缸体 2 90003982121 Corehole plug 碗形塞 3 90003989480 Corehole plug 碗形塞 4 90003989204 Corehole plug 碗形塞 5 615600l0029 Bush 凸轮轴衬套 5 612600010990 Bush 凸轮轴衬套 6 81500010046 Shell pin 主轴瓦(付) 7 81500010125 Stop washer 止推片(付) 8 61500010366 Crank case 曲轴箱 9 90003901604A Dowel pin 圆柱销 10 61500010344 Liner 气缸套 11 90003909626 Dowel pin 弹性...

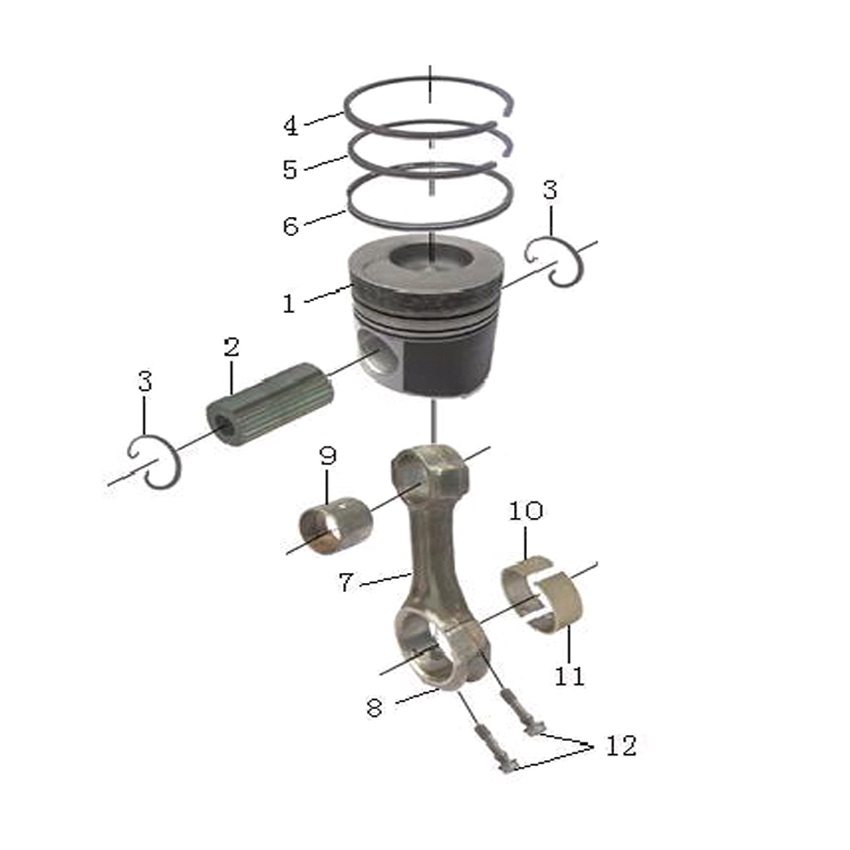

   NO. Part No. Chinese Name Part Name 1 61800030049 连杆轴瓦 Shell pin 612600030033 连杆轴瓦 Shell pin 2 61560030013 活塞销 Piston pin 3 61800030040 连杆体 Connecting rod 4 61800030044 连杆盖 Connecting cover 5 61800030019 连杆螺栓 Bolt 6 61500030077 连杆衬套 Bushing 7 612600030017 活塞 Piston 8 81560030012 活塞销挡圈 Circlip 9 61560030047 梯形环 Double ladder ring 10 612600030019 锥面环 Conical ring 11 61560030045 螺旋撑簧油封 S...

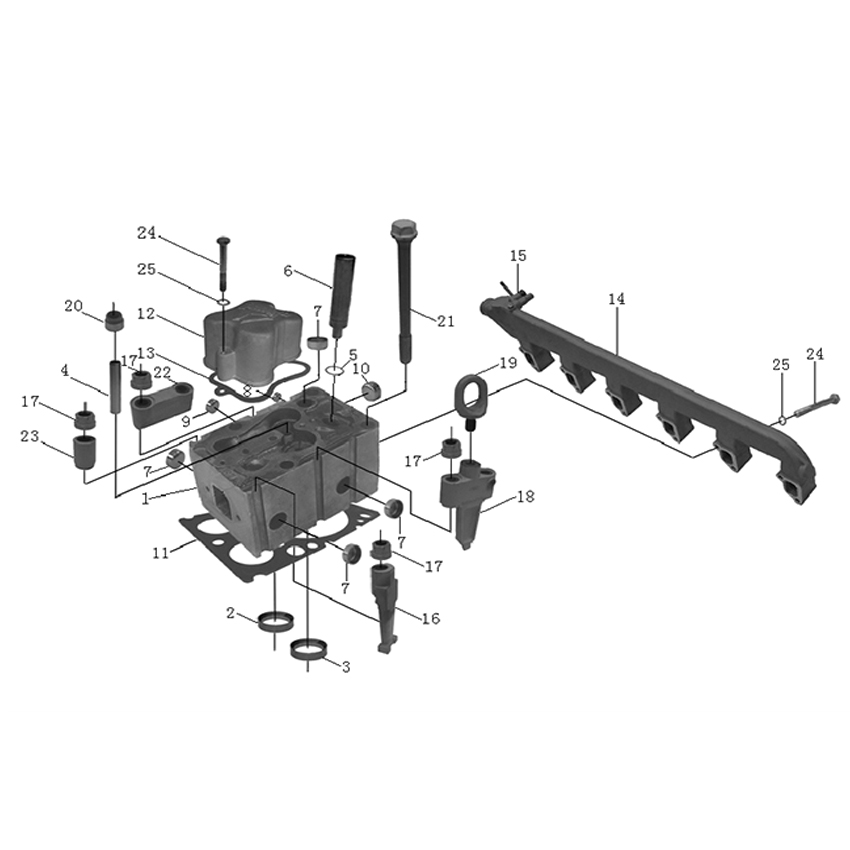

   NO. Part No. Chinese Name Part Name 1 612600040293 气缸盖总成 Cylinder head 2 61500040049 气缸盖衬垫 Joint 3 612600040114 气门阀杆密封套 Socket ring 4 61800040076 管子 Tubbe 5 61404002l 气缸盖罩衬垫 Joint 6 61500040023 气缸盖主螺栓 Bolt 612600040253 气缸盖主螺栓 Bolt 7 61800040074 出水管 Pipe 8 614040065 气缸盖罩 Cover 9 90003802466 六角头螺栓 Bolt 10 61000040030 连接管 Connector pipe 11 61800040075 节温器盖 Thermostat cover 12 90003932030...

 NO. Part No. Chinese Name Part Name 1 90003802549 六角头螺栓 Hexagon bolt 2 81500060188 压紧块 Clamp plate 3 61800061013 风扇托架 Fan bracket 4 90003932025 鞍形弹性垫圈 Spring washer 5 90003802542 六角头螺栓 Hexagon bolt 6 61500060030 防护圈 Guard ring 7 90003310017 径向推力球轴承 Radial thrust bearing 8 90003934260 孔用弹性挡圈 Circlip 9 61500060151 隔套 Spacing sleeve 10 90003320056 圆往滚子轴承 Bearing 11 61500060030 防护圈 Guard ring 12...
