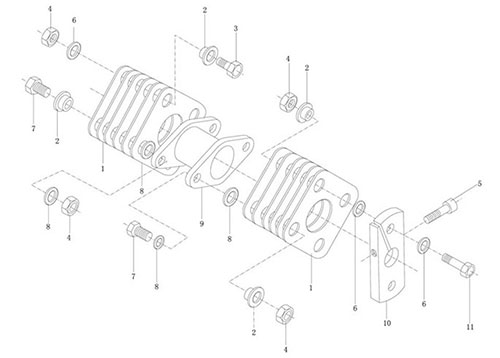

| NO. | Part No. | Part Name | Chinese name |
| 1 | 61560080219 | Connector | 弹性连接片 |
| 2 | 81560080273 | Bush | 衬套 |
| 3 | 90003802639 | Bolt | 六角头螺栓 |
| 4 | 90003871344 | Nut | 1 型六角螺母 |
| 5 | AZ1560080001 | Bolt | 六角头螺栓 |
| 6 | 81560080271 | Washer | 垫圈 |
| 7 | 90003802637 | Bolt | 六角头螺栓 |
| 8 | 90003930282 | Washer | 平垫圈 |
| 9 | 81560080275 | Flange | 联轴器法兰组件 |
| 10 | 61560080194 | Adjust plate | 角度调整板 |
| 11 | 90003800160 | Bolt | 六角头螺栓 |
