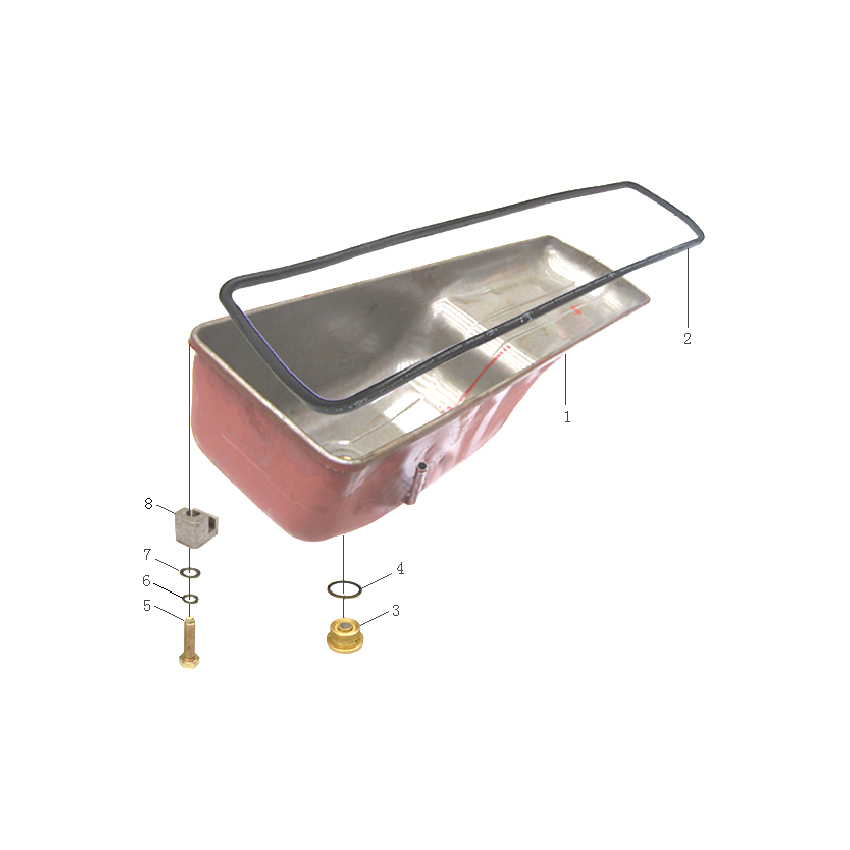

NO. Part no Part Name Chinese name 1 VG1800150015A Oil pan 油底壳总成   VG1540150002A       VG1540150010     2 VG14150046 Holding piece 油底壳托块 3 VG14150004 Joint 密封垫   4 VG2600150108 Plug 磁性螺塞总成 5 90003930261 Washer 平垫圈 6 90003802442 Bolt 六角头螺栓 7 VG2600150106 Washer 密封垫圈

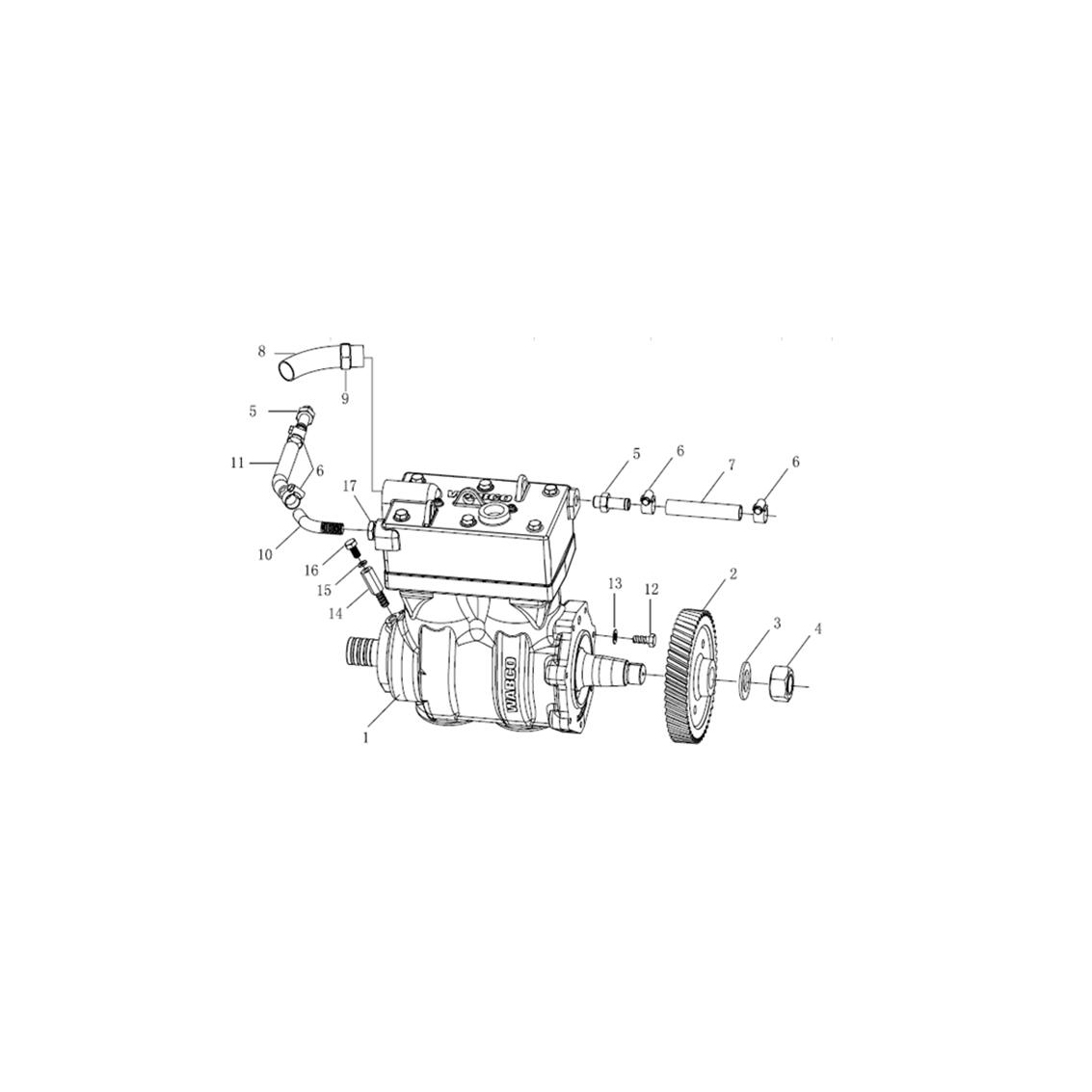

   NO. Part no Part Name Chinese name 1 VG1099130010 Water cooling air compressor 双缸水冷空压机 2 Q150B0820TF2 Bolt 六角头螺栓 3 90003932023 Spring washer 波形弹性垫圈 4 VG1560130064 Gear 喷油泵齿轮 5 VG2600130045 Nut 六角螺母 6 VG409020045 Joint 垫片 7 VG1092060010 Hose 空压机进水管 8 VG2600130053 Bolt 空心螺栓 9 VG1560060019 Hose 空压机出水管 10 90003989336 Hose clamp  软管卡箍 11 VG2600130026 Water pipe connector 水冷空压机水管接头 13 ...

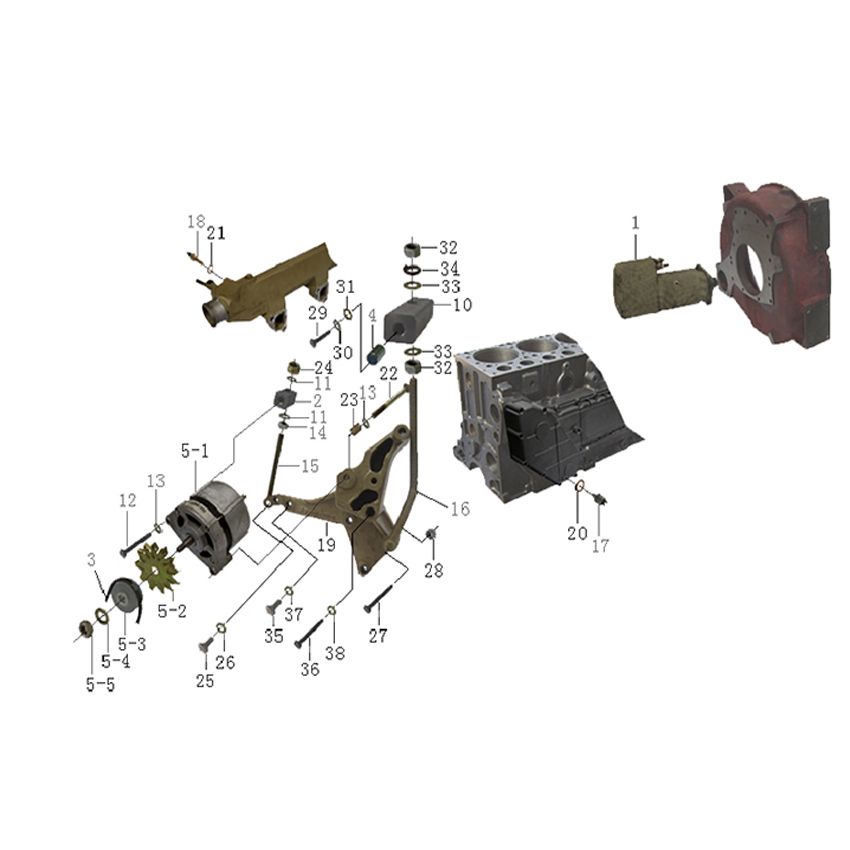

   NO. Part no Part Name Chinese name 1 VG1560090011 Alternator 1.5kW交流发电机 2 VG1500090066 Ribbed  belt 发电机多楔带 3 VG1500130018 Air-condition bracket 空调托架 4 VG1500090026 Bolt 拉紧螺栓 5 VG1500090027 Distance piece 拉紧块 6 VG1500090018 Bolt 拉紧螺栓 7 90003800564 Bolt 六角头螺栓 8 90003932025 Spring washer 鞍形弹性垫圈 9 90003935125 Washer 平垫圈 10 90003871305 Nut 1型六角螺母 11 90003888452 Nut 2型全金属六角锁紧螺母 12 VG15...

   NO. Part no Part Name Chinese name 1 VG1540080299 Coupling flange 联轴器法兰组件 2 VG1540080004B Spring sheets 弹性连接片 3 VG1540080295 Bush 衬套 4 VG1540080296 Bush 衬套 5 VG1540080007B Washer 垫圈 6 VG1540080293 Injection adjusting block 角度调节板 7 90003802544 Bolt 六角头螺拴 8 90003802513 Bolt 六角头螺拴      9 90003802536 Bolt 六角头螺拴      10 VG1540080297 Washer ...

   NO. Part no Part Name Chinese name 1 VG14070055 Gasket 机油泵垫片 2 VG1500070021 Oil pump ass 45mm机油泵总成 3 VG1800070051 Strainer 集滤器总成   VG1800070052     4 VG140778 Washer 垫片 5 90003802523 Bolt 六角头螺栓 6 90003930271 Washer 垫片 7 90003931122 Spring washer 弹簧垫圈 8 VG14070061 Gear 机油泵中间齿轮 9 VG14070056 Gear axle 中间齿轮轴 10 VG14070155 O-ring 密封圈 11 VG14070049 Intermediate ring 中间隔圈 12 9...

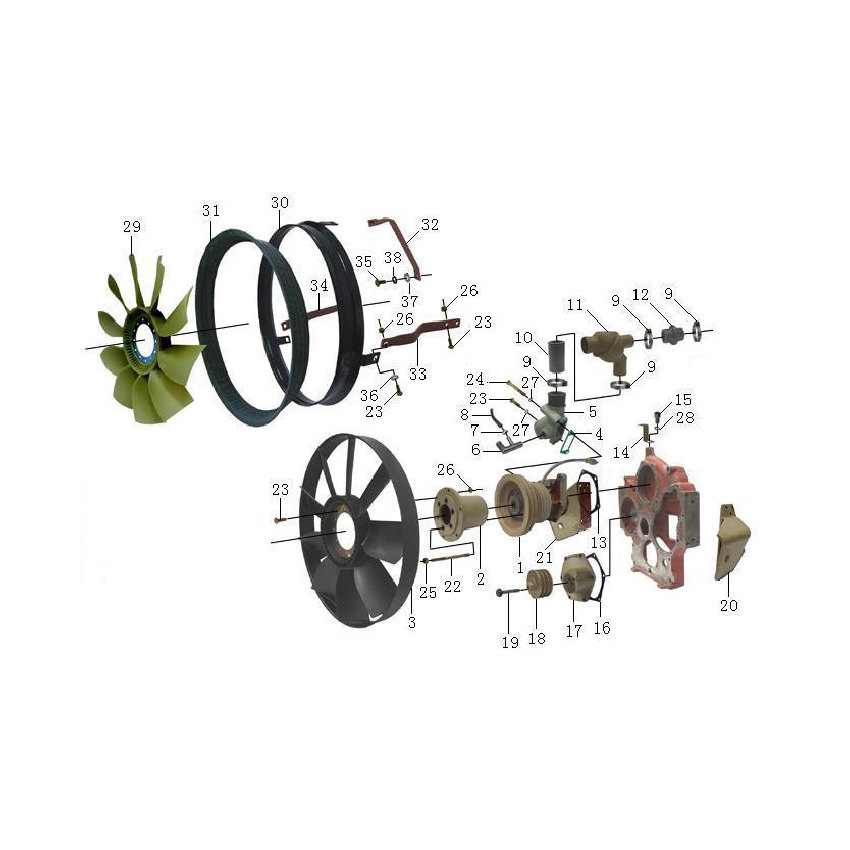

   NO. Part no Part Name Chinese name 1 VG1500060051 Water pump housing 水泵总成   VG1062060010     2 VG140608 Gasket 水泵密封垫   VG1500060108     3 VG2600060446 Fan φ640环形风扇   VG1500060447 Fan φ590环形风扇   VG1099060201 Fan φ704环形风扇 4 90003813148 Stud 双头螺柱   Q12010170F3     5 VG1500060240 Intermediate piece 中间法兰   VG1500060241   &nbs...

   NO. Part no Part Name Chinese  name 1 AZ1099010079 Cylinder Block 气缸体 2 161500010369 Crankcase 曲轴箱 3 VG1500110024 Gasket 进气管垫片 4 VG1540110036 Intake manifold 进气管 5 Q1201030F3 Bolt 双头螺柱 6 Q340B10 Nut 六角螺母    7 Q41810 Spring washer 波形弹性垫圈 8 VG1095110100 Intake connecting manifold　 进气接管 9 VG1540110145 Exhaust manifold (front) 第一、二缸排气歧管 10 VG1540110146 Exhaust manifold...

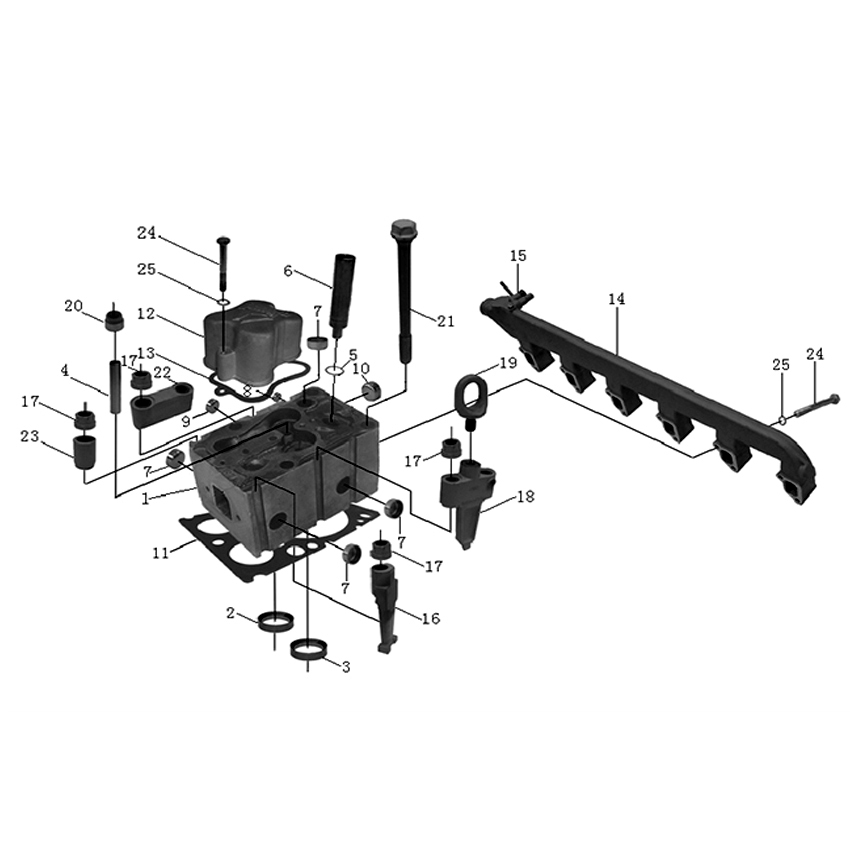

   NO. Part no Part Name Chinese  name 1 AZ1099040003A Cylinder head 气缸盖 2 VG1540040006 Ring (outlet) 进气门座 3 VG1540040007 Ring (inlet) 排气门座 4 VG1540040008 Valve guide 气门导管 5 VG1092040306 Nozzle holder 喷油器衬套 6 VG1540040010 Nozzle holder gasket 喷油器衬套密封圈 7 VG1540040011 Bolt 油孔堵塞 8 90003989721 Core plug 碗形塞片 9 90003989294 Core plug 碗形塞片 10 90016210001 Steel ball 钢珠 11 VG1540040015A Join...

   NO. Part no Part Name Chinese  name 1 AZ1099040003A Cylinder head 气缸盖 2 VG1540040006 Ring (outlet) 进气门座 3 VG1540040007 Ring (inlet) 排气门座 4 VG1540040008 Valve guide 气门导管 5 VG1092040306 Nozzle holder 喷油器衬套 6 VG1540040010 Nozzle holder gasket 喷油器衬套密封圈 7 VG1540040011 Bolt 油孔堵塞 8 90003989721 Core plug 碗形塞片 9 90003989294 Core plug 碗形塞片 10 90016210001 Steel ball 钢珠 11 VG1540040015A Join...

   NO. Part No Part Name Chinese  name 1 AZ1096040028 Cylinder head 气缸盖 2 VG1560040057 Ring (outlet) 进气门座 3 VG1560040037 Ring (inlet) 排气门座 4 VG1560040031 Valve guide 气门导管 5 VG1096040001A Nozzle holder 喷油器衬套 6 VG1540040010 Nozzle holder gasket 喷油器衬套密封圈 7 VG1540040011 Bolt 油孔堵塞 8 90003989721 Core plug 碗形塞片 9 90003989294 Core plug 碗形塞片 10 VG1500040065 Joint 气缸盖衬垫 11 VG1560040032 Scrape...

   NO. Part  no Part Name Chinese name 1 161500030008 Connecting rod 连杆体 2 161500030022 Connecting rod cover 连杆盖 3 VG1500030077 Connecting rod bush 连杆衬套 4 VG1500030023 Connecting rod bolt 连杆螺栓 5 VG1560037034 Connecting rod bearing 连杆上瓦   VG1540030015 Connecting rod bearing 连杆上瓦 6 VG1560037033 Connecting rod bearing 连杆下瓦   VG1540030016 Connecting rod bearing 连杆下瓦 7 VG156003...

   NO. Part  no Part Name Chinese name - 61560020029 Crankshaft ass 曲轴总成   61500020071 Crankshaft ass 曲轴总成 1 61560020024 Crankshaft 曲轴   61500020012 Crankshaft 曲轴 2 VG1560029001 Jam 堵头 3 VG1500020070 Flange 法兰 4 VG14020038 Crankshaft gear 曲轴齿轮 5 Q5510828 Key 平键 6 90003901418 Dowel pin 圆柱销 7 VG1560020010 Vibration damper 减振器   VG1540020003 Vibration damper 减振器 8 VG2600...

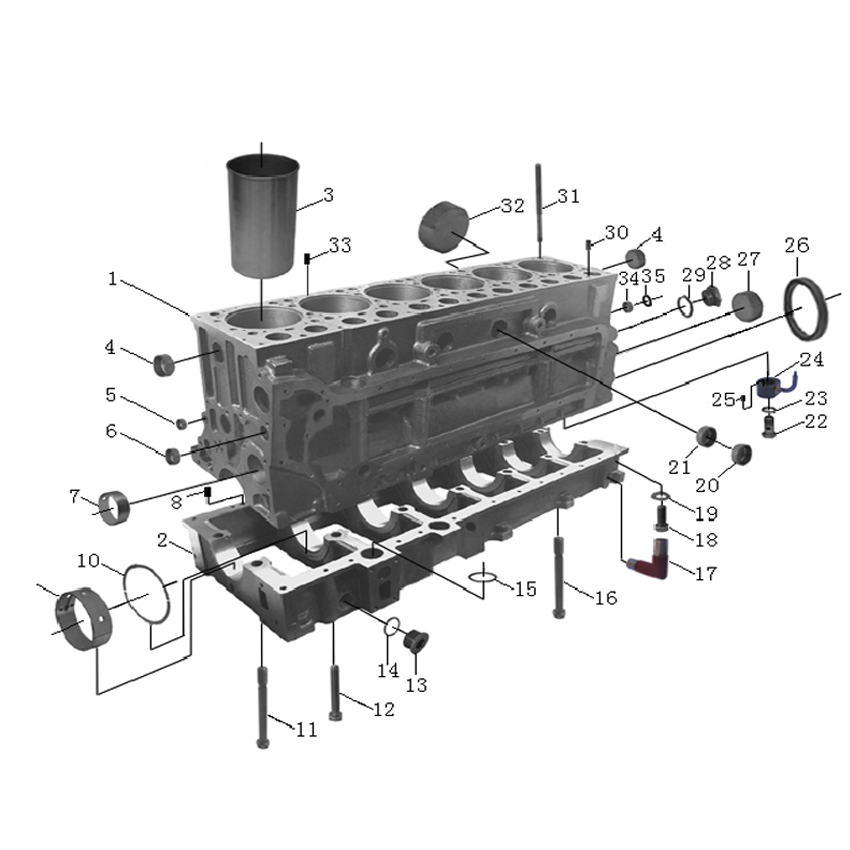

   NO. Part No Part Name Chinese  No. - AZ1096010190 Cylinder block ass 气缸体总成   AZ1096010020 Cylinder block ass 气缸体总成   AZ1099010077 Cylinder block ass 气缸体总成   AZ1099010081 Cylinder block ass 气缸体总成 1 AZ1096010134 Cylinder block 气缸体   AZ1095010010 Cylinder block 气缸体   AZ1099010078 Cylinder block 气缸体   AZ1099010079 Cylinder block 气缸体 2 61500010366C Crankc...

   NO. Part No. Chinese Name Part name - AZ1246010049  气缸体总成 Cylinder block assembly 1 AZ1246010040 气缸体 Cylinder block 2 AZ1246010029 曲轴箱 Crankcase 3 VG1246010042 凸轮轴衬套 Camshaft bush 4 VG1246010043 凸轮轴衬套 Camshaft bush 5 190003989289 碗形塞 Core hole plug 6 VG1246010044 碗形塞 Core hole plug 7 VG1246010041 碗形塞 Core hole plug 8 VG1246010046 碗形塞 Core hole plug 9 VG1246010048 碗形塞 Core hole pl...

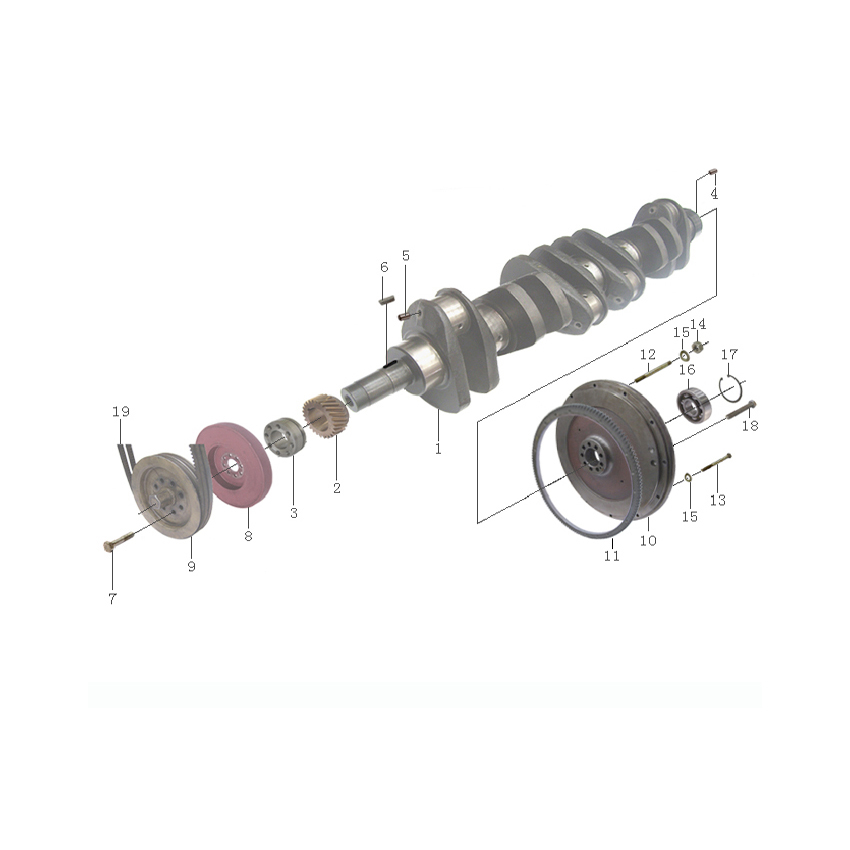

 NO. Part No. Chinese Name Part name 1 AZ1246020013 曲轴 Crankshaft 2 VG1246020012 曲轴前齿轮 Front crankshaft gear 3 VG1246020011 曲轴后齿轮 Rear crankshaft gear 4 Q5210816 圆柱销 Dowel pin 5 AZ1246020005A 飞轮 Flywheel 6 Q43062 孔用弹性挡圈 Circlip 7 190003311416 球轴承 Ball bearing 8 VG2600020208 飞轮齿圈 Ring gear 9 Q1201090F3 双头螺柱 Stud 10 Q340B10 六角螺母 Hexagon nut 11 Q150B1085 六角头螺栓 Hex head bolt 12 Q41810 波形弹性垫圈 Spri...

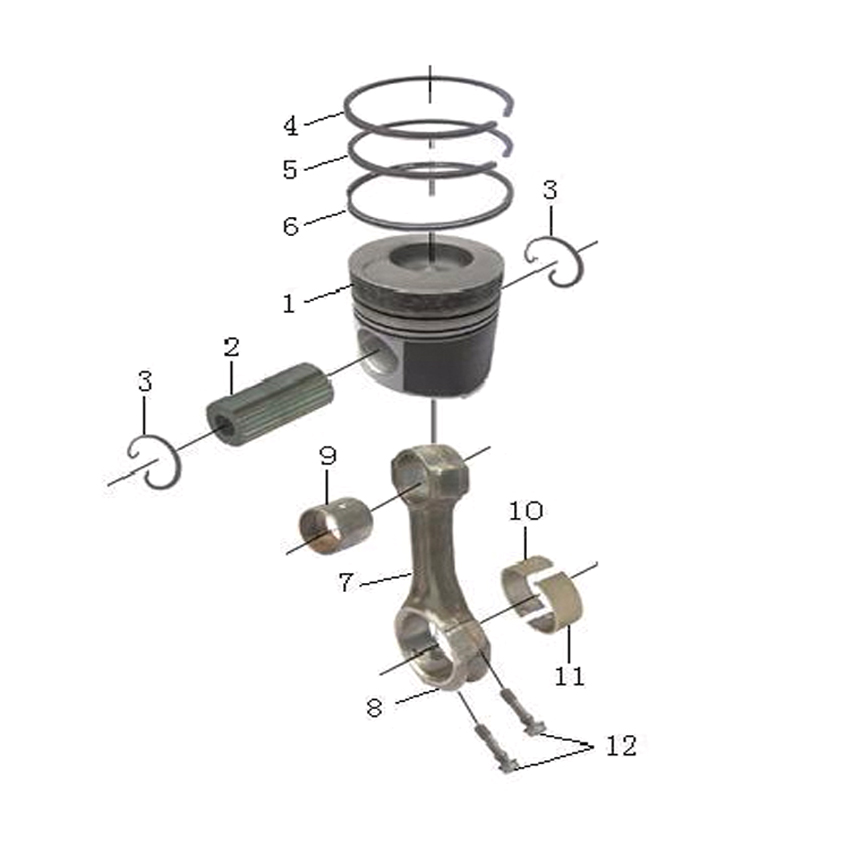

  Pos. Teile.Number Chinese name Designation 1 VG1246030001 活塞 Piston 2 VG1246030002 活塞销 Piston pin 3 VG1246030003 活塞销挡圈 Retaining ring 4 VG1246030004 梯形环 Double ladder ring 5 VG1246030005 锥面环 Conical ring 6 VG1246030006 螺旋撑簧油环 Spiral spring oil ring - AZ1246030007 连杆总成 Connecting rod assembly 7 AZ1246030008 连杆体 Connecting rod 8 AZ1246030009 连杆盖 Connecting rod cover 9 VG1246030010 连杆衬套 Connec...

   NO. Part No. Chinese Name Part name - AZ1246040010 气缸盖总成 Cylinder head assembly 1 AZ1246040011 气缸盖 Cylinder head 2 VG1246040012 进气门座 Intake valve support 3 VG1246040013 排气门座 Exhaust valve support 4 VG1246040014 气门导管 Valve guide 5 VG1246040015 气门推杆衬套 Valve push rod bush 6 VG1246040016 喷油器衬套 Fuel injector bush 7 190004000000 碗形塞 Core hole plug 8 VG1246040031 碗形塞 Core hole plug 9 VG12460...

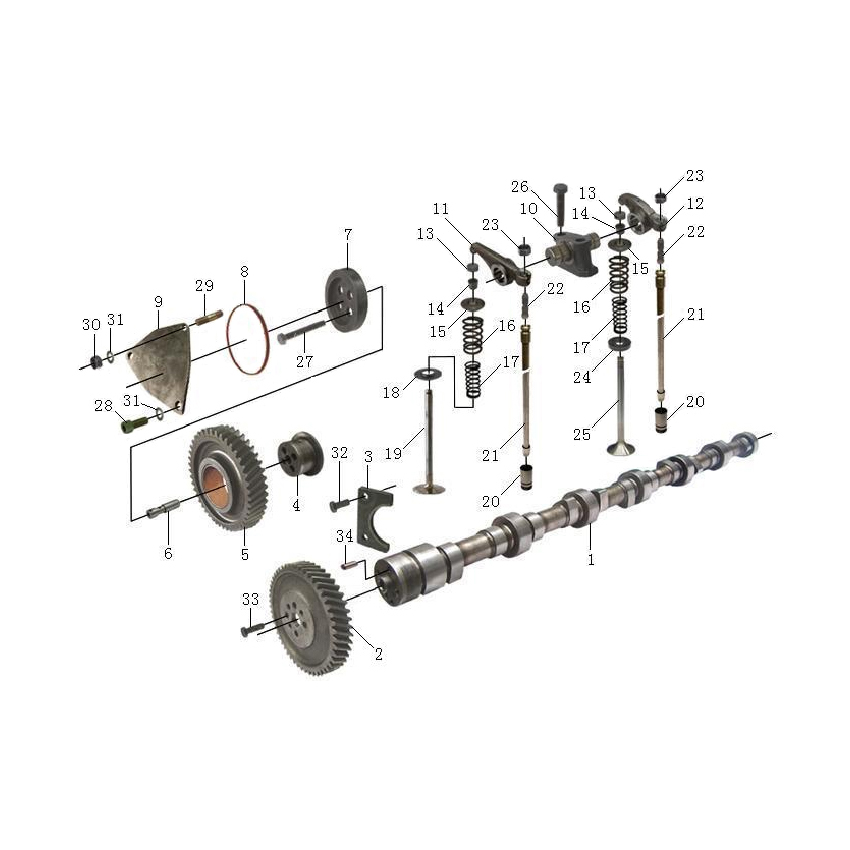

   NO. Part No. Chinese Name Part name 1 VG1246050038 凸轮轴 Camshaft 2 VG1246050039 凸轮轴止推片 Thrust flange 3 Q150B0820TF2 六角头螺栓 Hex head bolt 4 VG1246050029 气门挺柱 Valve tappet 5 VG1246050020 气门推杆 Valve push rod 6 VG1246050005 摇臂座 Rocker arm support 7 Q5210406 圆柱销 Dowel pin 8 VG1246050006 摇臂轴总成 Rocker arm shaft assembly 9 VG1246050050 EVB排气门桥组件 EVB exhaust valve bridge assembly 10 VG1246050055...
