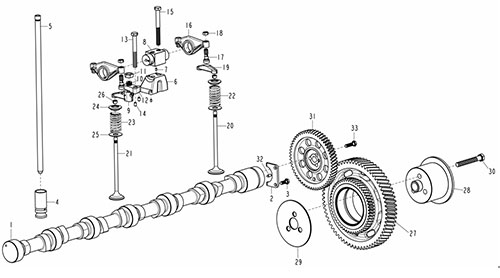

| NO. | Part No. | Chinese Name | Part name |
| 1 | VG1246050038 | 凸轮轴 | Camshaft |
| 2 | VG1246050039 | 凸轮轴止推片 | Thrust flange |
| 3 | Q150B0820TF2 | 六角头螺栓 | Hex head bolt |
| 4 | VG1246050029 | 气门挺柱 | Valve tappet |
| 5 | VG1246050020 | 气门推杆 | Valve push rod |
| 6 | VG1246050005 | 摇臂座 | Rocker arm support |
| 7 | Q5210406 | 圆柱销 | Dowel pin |
| 8 | VG1246050006 | 摇臂轴总成 | Rocker arm shaft assembly |
| 9 | VG1246050050 | EVB排气门桥组件 | EVB exhaust valve bridge assembly |
| 10 | VG1246050055 | EVB调节螺钉 | EVB setting screw |
| 11 | VG1246050056 | EVB调节螺母 | EVB setting nut |
| 12 | VG1246050057A | EVB压板 | EVB impaction plate |
| 13 | Q150B1095TF2 | 六角头螺栓 | Hex head bolt |
| 14 | Q5210614 | 圆柱销 | Dowel pin |
| 15 | Q150B10100TF2 | 六角头螺栓 | Hex head bolt |
| 16 | VG1246050008 | 气门摇臂总成 | Rocker arm assembly |
| 17 | VG1246050011 | 气门桥调节螺钉总成 | Valve setting screw |
| 18 | VG2130050065 | 气门间隙调整螺母 | Nut |
| 19 | VG1246050013 | 气门桥 | Valve bridge |
| 20 | VG1246050021 | 进气门 | Intake valve |
| 21 | VG1246050022 | 排气门 | Exhaust valve |
| 22 | VG1246050023 | 进气门弹簧 | Intake valve spring |
| 23 | VG1246050024 | 排气门弹簧 | Exhaust valve spring` |
| 24 | VG1246050025 | 气门弹簧上座 | Spring cup |
| 25 | VG1246050026 | 气门弹簧下座 | Spring seat |
| 26 | VG1246050028 | 气门锁夹 | Valve cone |
| 27 | VG1246050060 | 中间齿轮总成 | Idle gear assembly |
| 28 | VG1246050034 | 中间齿轮轴 | Idle gear axle |
| 29 | VG1246050035 | 止推片 | Thrust washer |
| 30 | Q150B1290TF2 | 六角头螺栓 | Hex head bolt |
| 31 | VG1246050036 | 凸轮轴齿轮 | Camshaft gear |
| 32 | Q5210612 | 圆柱销 | Dowel pin |
| 33 | Q150B0830TF2 | 六角头螺栓 | Hex head bolt |
