NO PART NO QUANTIT PART NAME 名  称 1 WG9000361203 1 NG12 / NW12 right Angle connector body 直角接头体NG12/NW12 2 WG9000361204 2 NG12 / NW9 right Angle connector body 直角接头体NG12/NW9 3 WG9000361402 2 Water drain valve 放水阀 4 WG9000361012 1 Jam NG12 - M22X1. 5 堵塞NG12-M22X1.5 其他管路连接件Other pipe fittings       WG9000361007 3 Elastic element NG12 弹性元件NG12   WG9000361008 3 Circlip ...

   NO. Part No. Quantity Chinese name Part Name 1 WG9000361104 1 直通接头体NG12/NW6 Through joint NG12 / NW6 2 190003559385 1 隔壁直通接头体2-M22×1.5 Through joint body 2 - M22 x 1.5 next door 3 WG9000361202 1 直角接头体NG12/NW6 Right Angle connector body NG12 / NW6 4 WG9000361402 2 放水阀 Water drain valve 5 WG9000361103 1 直通接头体NG12/NW4 Through joint NG12 / NW4 其他管路连接件Other pipe fittings     &nbs...

   NO. Part No. Quantity Part Name Chinese Name 1 WG9000361101 3 Through joint NG12 / NW9 直通接头体NG12/NW9 2 WG9000361204 3 NG12 / NW9 right Angle connector body 直角接头体NG12/NW9 3 WG9000361110 1 Through joint NG12 / NW12 直通接头体NG12/NW12 4 WG9000361401 1 Pressure test joint assembly 压力测试接头总成 5 WG9000361301 1 L tee joint body NG12 NW12 / M12 x 1.5 L型三通接头体NG12/NW12/M12×1.5 6 WG9000361201 1 Right ...

  NO PART NO QUANTITY PART NAME 名  称 1 WG9000361204 3 NG12 / NW9 right Angle connector body 直角接头体NG12/NW9 2 WG9000361318 1 L tee joint body NG12 NW6 / M12 x 1.5 L型三通接头体NG12/NW6/M12×1.5 其他管路连接件         WG9000361007 4 Elastic element NG12 弹性元件NG12   WG9000361008 4 Circlip NG12 卡簧NG12   WG9000361009 4 Nut seat NG12 螺母座NG12...

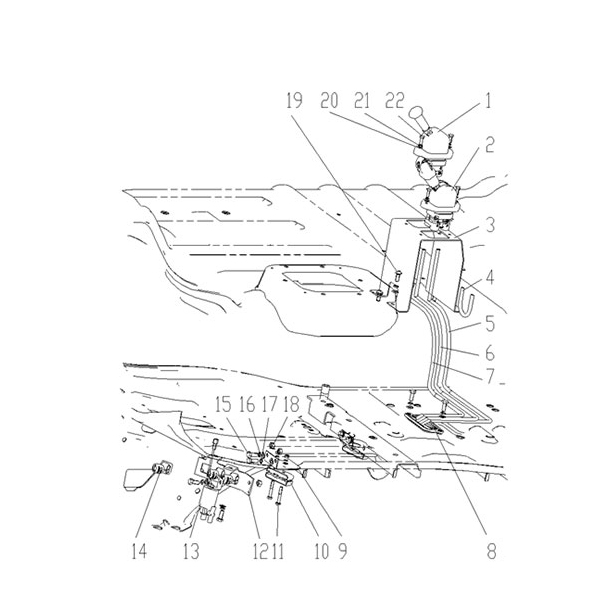

  NO PART NO QUANTITY PART NAME 名  称 1 WG9000360522 1 Hand brake valve 手制动阀 2 WG9000360528 1 Hang the driver brake valve 挂车手制动阀 3 AZ9925360501 1 Hand brake valve holder assembly 手制动阀支架总成 4 AZ9925360528 1 Shaping hose (in driver 22 mouth to hang a driver valves 1) 成型软管(驻车手阀22口到挂车手阀1口) 5 AZ9925360506 1 Forming a hose (high floor hang a driver valve control line) 成形软管（高地板挂车手阀控制管路） 6 AZ99253...

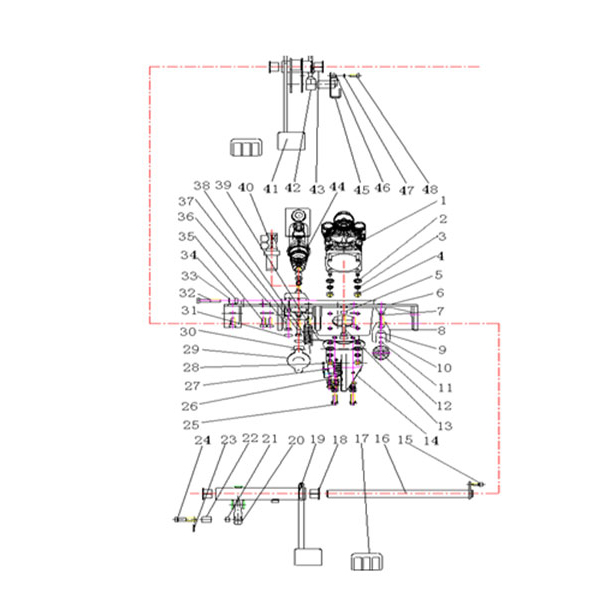

   NO. Part No. Quantity Part  Name Chinese Name 1 WG9000361106 牵引车5 Through joint NG8 / NW6 直通接头体NG8/NW6     非牵引车3     2 AZ9925360508 1 15 / rubber via retainer (Φ Φ 8) 橡胶过孔护圈(Φ15/Φ8) 3 WG9000361317 1 T the tee joint body 3 - NW6 T型三通接头体3-NW6 4 WG9000361403 3 Combination pedal bracket plate joint 组合踏板支架过板接头NG8/NW6/135° 5 WG9000361405 1 2 - NG6 cross connectors b...

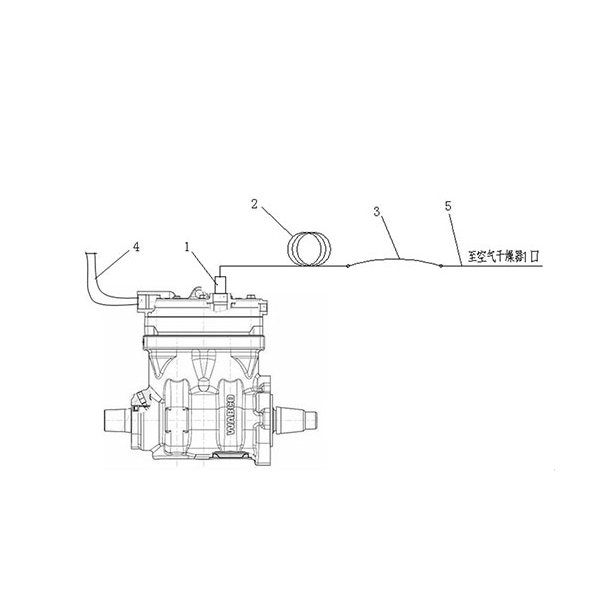

  NO Part NO. Quantity  Part Name 名  称 1 199112360189 1 Through joint body (M26 / M22) 直通接头体（M26/M22） 2 AZ9918360202 1 15 air compressor/bellows tube 管子15 空压机/波纹管 3 WG9100360183 1 Stainless steel corrugated pipe assembly (300 mm) 不锈钢波纹管总成(300mm) 4 WG9918360101 1 Rubber hose (950 mm) long 橡胶软管(长950mm) 5 AZ9918360217 1 15 corrugated pipe/tube drye 管子15波纹管/干燥器 Other pipe fittings  ...

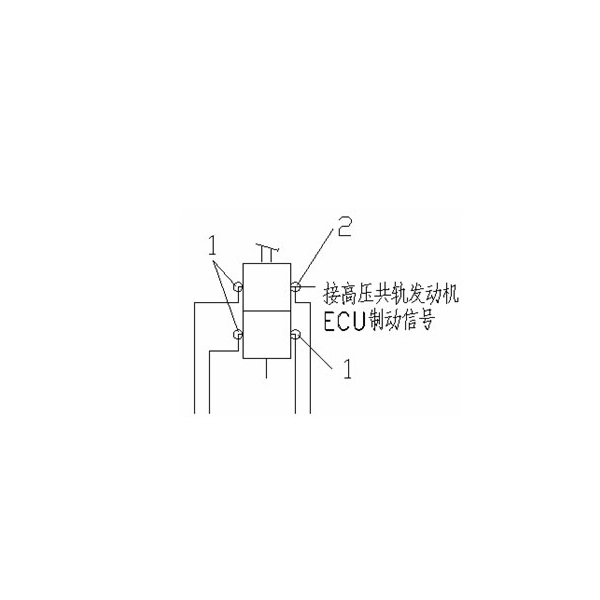

  NO PART NO QUANTITY PART NAME 名  称 1 WG9000360520 1 Total brake valve 制动总阀 2 Q40108 4 Flat washer 平垫圈 3 Q40308 4 Spring washer 弹簧垫圈 4 Q340B08 4 Type 1 hexagonal nut 1型六角螺母 5 Q340B08 1 Type 1 hexagonal nut 1型六角螺母 6 AZ9925360020 1 Composite scaffolds 组合支架 7 Q150B0616 2 Hexagon head bolts 六角头螺栓 8 AZ9925360027 1 Brake light sensor bracket 制动灯传感器支架 9 Q40106 2 Flat washer 平垫圈 10 Q40306 2 Spr...

  no part no part name A 　   1 190003559516 Pipe joint with a nut 2 190003559508 Pipe joint with a nut 3 190003559561 Card set 4 190003559509 Pipe joint with a nut 5 190003559558 Card set 6 190003559514 Pipe joint with a nut 7 190003559563 Card set 8 190003559520 Pipe joint with docking nut 9 190003559562 Card set 10 190003559538 To take over the joint of cutting sleeve type has the tape...
