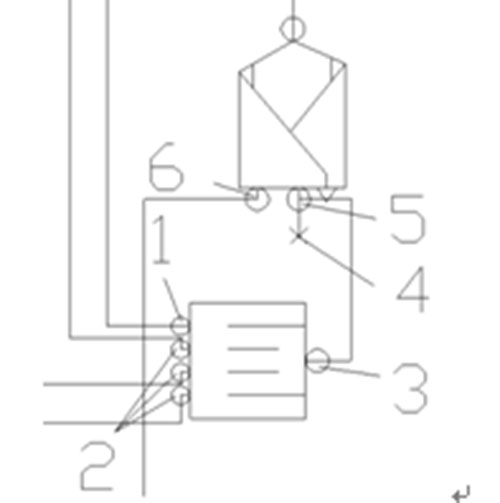

| NO. | Part No. | Quantity | Part Name | Chinese Name |
| 1 | WG9000361101 | 3 | Through joint NG12 / NW9 | 直通接头体NG12/NW9 |
| 2 | WG9000361204 | 3 | NG12 / NW9 right Angle connector body | 直角接头体NG12/NW9 |
| 3 | WG9000361110 | 1 | Through joint NG12 / NW12 | 直通接头体NG12/NW12 |
| 4 | WG9000361401 | 1 | Pressure test joint assembly | 压力测试接头总成 |
| 5 | WG9000361301 | 1 | L tee joint body NG12 NW12 / M12 x 1.5 | L型三通接头体NG12/NW12/M12×1.5 |
| 6 | WG9000361201 | 1 | Right Angle connector body NG8 / NW6 | 直角接头体NG8/NW6 |
| 其他管路连接件Other pipe fittings | ||||
| WG9000361004 | 1 | Elastic element NG8 | 弹性元件NG8 | |
| WG9000361005 | 1 | Circlip NG8 | 卡簧NG8 | |
| WG9000361006 | 1 | Nut seat NG8 | 螺母座NG8 | |
| WG9000361007 | 5 | Elastic element NG12 | 弹性元件NG12 | |
| WG9000361008 | 5 | Circlip NG12 | 卡簧NG12 | |
| WG9000361009 | 5 | Nut seat NG12 | 螺母座NG12 | |
