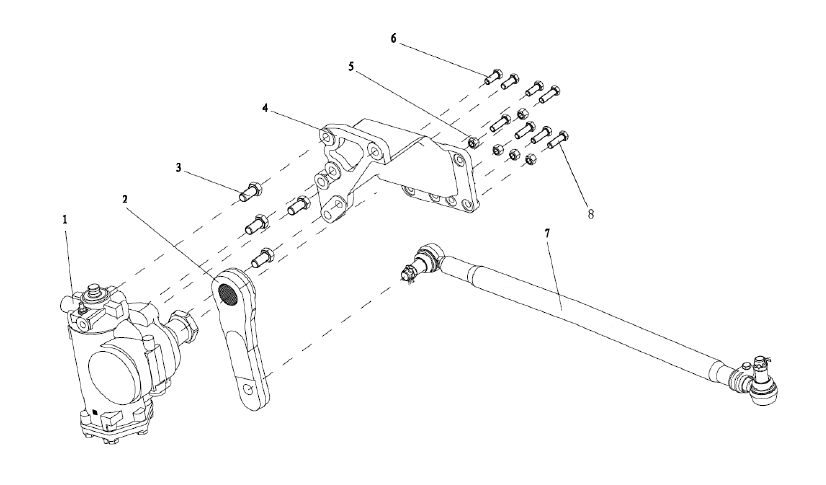

NO. |
Part No. |
Chinese Name |
Part Name |
|
1 |
DZ9114470075 |
循环球式动力转向器 |
Steering gear |
|
2 |
DZ9100470238 |
转向摇臂 |
Pitman arm |
|
3 |
Q151B2040TF2 |
六角头螺栓 |
Hex screw |
|
4 |
DZ95259470029 |
转向器支架 |
Bracket |
|
|
DZ9100470215 |
转向器支架 |
Bracket |
|
5 |
190004000000 |
自锁螺母 |
Locking nut |
|
6 |
Q151B1435TF2 |
六角头螺栓 |
Hex screw |
|
7 |
DZ9100430017 |
转向直拉杆 |
Drag link |
|
8 |
Q151B1445TF2 |
六角头螺栓 |
Hex screw |
|

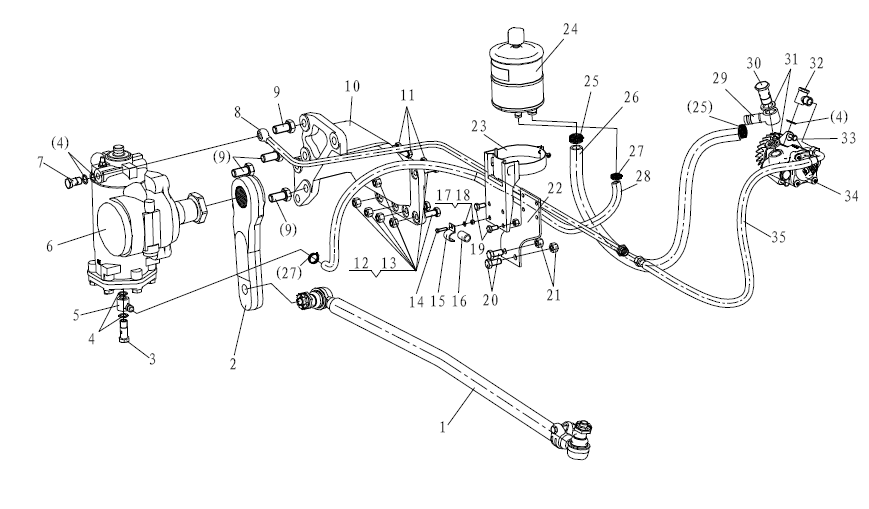

NO. |
Part No. |
Chinese Name |
Part Name |
|
1 |
DZ9100430017 |
转向拉杆 |
Drag link |
|
2 |
DZ9100470238 |
转向摇臂 |
Pitman arm |
|
|
DZ93259470002 |
转向摇臂 |
Pitman arm |
|
3 |
250-3408017 |
空心螺栓 |
Hollow screw |
|
4 |
Q72318T5F |
垫圈 |
Washer |
|
5 |
DZ9100470013 |
旋转管接头 |
Nozzle |
|
6 |
DZ9114470070 |
循环球式动力转向器 |
Steering gear |
|
7 |
1.90004E+11 |
空心螺栓 |
Hollow screw |
|
8 |
DZ9100470383 |
压油管总成 |
Delivery line |
|
|
DZ9100470041 |
压油管总成 |
Delivery line |
|
|
DZ95259470001 |
压油管总成 |
Delivery line |
|
|
DZ93319470005 |
压油管总成 |
Delivery line |
|
|
DZ93259470010 |
压油管总成 |
Delivery line |
|
|
DZ93319470013 |
压油管总成 |
Delivery line |
|
9 |
Q151B2040TF2 |
六角头螺栓 |
Hex screw |
|
10 |
DZ95259470029 |
转向器支架 |
Bracket |
|
|
DZ95259470021 |
转向器支架 |
Bracket |
|
11 |
Q1811435TF2 |
六角头螺栓 |
Hex screw |
|
12 |
Q1811445TF2 |
六角头螺栓 |
Hex screw |
|
13 |
06.11251.2005 |
自锁螺母 |
Locking nut |
|
14 |
Q150B0625TF2 |
六角头螺栓 |
Hex screw |
|
15 |
1.38091E+11 |
管夹 |
Clamp |
|
16 |
1.61E+11 |
橡胶软管 15/21 |
Nipple |
|
17 |
Q40106 |
平垫圈 |
Washer |
|
18 |
Q33206 |
六角锁紧螺母 |
Locking nut |
|
19 |
Q150B1020 |
六角头螺栓 |
Hex screw |
|
|
Q33210 |
六角锁紧螺母 |
