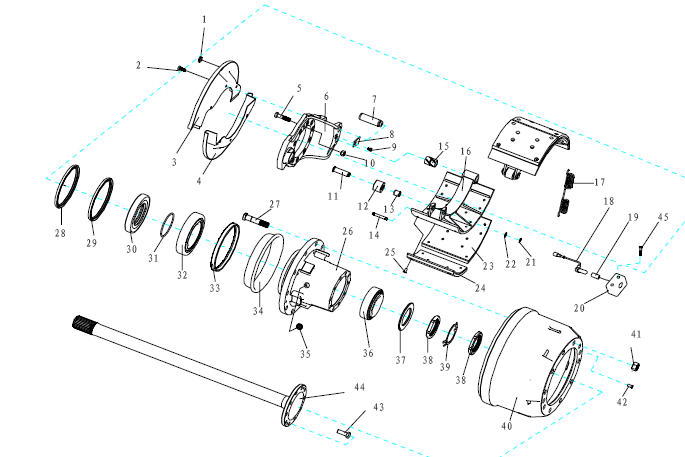

NO. |
Part No. |
Chinese Name |
Part Name |
|

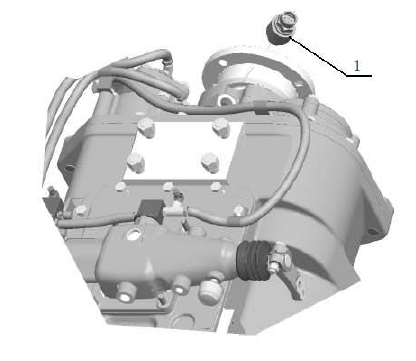

1 |
81.27421.0129 |
车速里程表传感器 |
Vehicle speed sensor |
|
NO. |
Part No. |
Chinese Name |
Part Name |
|
1 |
88000340037 |
密封圈 |
Packing ring |
|
2 |
Q150B1012 |
六角头螺栓 |
Hex bolt |
|
3 |
DZ9112340012 |
防尘罩（左） |
Dust cover（left） |
|
4 |
DZ9112340013 |
防尘罩（右） |
Dust cover（right） |
|
5 |
Q151B1460TF2 |
六角头螺栓 |
Hex bolt |
|
6 |
DZ9112340051 |
制动底板（右） |
Brake floor（right） |
|
|
DZ9112340055 |
制动底板（左） |
Brake floor（left） |
|
7 |
81.50212.0032 |
制动蹄销 |
Brake shoe pin |
|
8 |
81.90801.0225 |
护板 |
Cover sheet |
|
9 |
06.02828.4505 |
六角头螺栓 |
Hex bolt |
|
10 |
1.90004E+11 |
自锁螺母 |
Locknut |
|
11 |
81.50211.0030 |
销 |
Pin |
|
12 |
81.50213.0013 |
滚轮 |
Roller |
|
|
81.50213.6006 |
滚轮总成 |
|
|
13 |
81.93021.0220 |
衬套 |
Sleeve |
|
14 |
81.50211.0018 |
回位弹簧销 |
Returning spring pin |
|
15 |
81.93021.0141 |
衬套 |
Sleeve |
|
16 |
DZ9112340061 |
制动蹄 |
Brake shoe |
|
17 |
81.97610.0115 |
回位弹簧 |
Returning spring |
|
18 |
DZ9100580214 |
传感器 |
Sensor |
|
19 |
DZ9100580215 |
传感器衬套 |
Sensor sleeve |
|
20 |
DZ9112340053 |
ABS 支架 |
ABS bracket |
|
21 |
90003933072 |
轴用弹性挡圈 |
Circlip for axle |
|
22 |
06.15113.2615 |
垫圈 |
Washer |
|
23 |
DZ9112340063 |
下摩擦片 |
Lower friction plate |
|
24 |
DZ9112340062 |
上摩擦片 |
Upon friction plate |
|
25 |
81.92201.0109 |
铆钉 |
Rive |
|
|
81.92201.0108 |
铆钉 |
Rivet |
|
26 |
DZ9112340309 |
轮毂 |
Wheel hub |
|
|
DZ9112340307 |
轮毂总成 |
Wheel hub assy. |
|
27 |
DZ9112340123 |
车轮螺栓 |
Wheel bolt |
|
28 |
DZ9112340052 |
油封 |
Grease packing |
|
29 |
DZ9112340153 |
油封 |
Grease packing |
|
|
DZ9112340154 |
油封 |
Grease packing |
|
