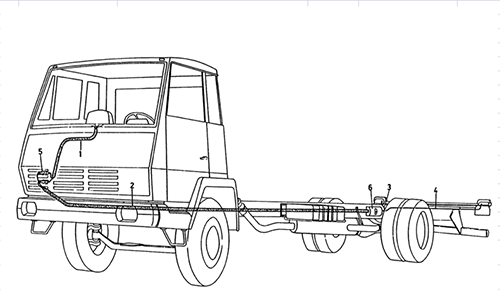

ELECTRICAL LINES

2016-09-27 12:00:20



 NO. Part No. Part Name Quantity
1 AZ9725770010 Driver’s cab-line 1
1 AZ9725770073 Starter-connector negative line(350) 1
1 AZ9719770002 Switch-line 1
1 AZ9725770086 Speedmeter cable (470) 1
2 AZ9725770061 Starter-line 1
2/A AZ9719770061 Starter-line 1
2 AZ9725770052 Chassis-line  1
2 AZ9725770060 Tractor line 1
2 AZ9718770014 Transmission-line 1
2 AZ9719770022 Fuel tank,solenoid valve and air dryer-line 1
2 AZ9719770012 Engine-line 1
2 WG9130775007 Work lamp chassis-line 1
2 AZ9725770068 Seven hole socket-line 1
2/A AZ9725770069 Seven hole socket-line 1
2 AZ9725770001 Side lamp-line 1
2 189100770255 Flexible spirality cable-line 1
2 AZ9719770009 Bottom line of cab 1
3 AZ9725770081 Axle diff.lock and wheel diff.lock-line 1
4 AZ9725770065 Right,rear combination lamp-line 1
4/A AZ9725770035 Right,rear combination lamp-line 1
4 AZ9725770064 Left,rear combination lamp-line 1
4 AZ9718770060 Connector negative-line 1
5 189100770103 Connecting box I 1
5a 189100770104 Connecting box I 1
6 WG9100770392 Line connector body 1
6a 179100770391 Line connector 1
6b WG9100770394 Line connector cover 1
8 AZ9725770027 Line for Running recorder assembly  1
9 Q41205 Toothed washer 7
10 Q68620 Clamp 1
11 Q150B0616 Screw 1
12 Q40306 Spring washer 1
13 WG1642110018 Protecting strip 10
14 WG9130773002 Line through box 1
15 Q2714219 Screw 7
16 Q340B08 Nut 4
17 Q2140820 Screw 4
18 Q40208 Big washer 4
19 Q2762995 Screw 3
20 190003120032 Circular seal strip 4
21 179100770395 wire cover 570MM
22 Q2713525 Screw 4
23 Q150B0630Q Screw 2
24 Q40206 Big washer 2
25 Q40106 Washer 2
26 Q40306 Spring washer 2
27 Q340B06 Nut 2
28 190003171356 Wire fastener 15
29 190003171392 Wire fastener 16
30 190003171393 Wire fastener 10
31 190003171397 Wire fastener 10
32 190003179044 Edge protection 120MM
33 190003179045 Edge protection 150MM
34 190003179046 Edge protection
