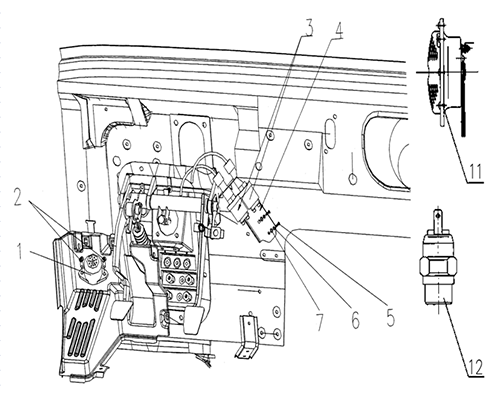

| NO. | Part No. | Part Name | Quantity |
| 1 | WG9719710001 | Exhaust brake switch | 1 |
| 2 | Q2714216 | Screw | 2 |
| 3 | WG9130713001 | Air pressure sensor | 2 |
| 4 | AZ9725710001 | Bracket | 1 |
| 5 | Q150B0616 | Screw | 2 |
| 6 | Q40306 | Spring washer | 2 |
| 7 | Q41206 | Washer | 2 |
| 9 | WG9718710001 | Electromagnetic valve for pneumatic horn | 1 |
| 9/A | WG9718710003 | Electromagnetic valve for pneumatic horn | 1 |
| 9a | Q150B0816 | Screw | 3 |
| 9b | Q40308 | Spring washer | 3 |
| 10 | WG9100710008 | Electromagnetic valve | 5 |
| 10 | WG9719710003 | Electromagnetic valve | 3 |
| 10a | Q150B08110 | Screw | 2 |
| 10b | 190003800497 | Screw | 2 |
| 10c | 190003962019 | Screw | 4 |
| 10d | Q72312T5F | Gasket | 3 |
| 10e | Q33208 | Nut | 4 |
| 11 | WG9718710002 | Electro horn | 1 |
| 11a | Q1460825 | Combination screw | 1 |
| 11b | Q33208 | Nut | 1 |
| 12 | WG9100710004 | Air pressure signal lamp switch | 2 |
| 19 | 190003499855 | Seven hole socket | 1 |
