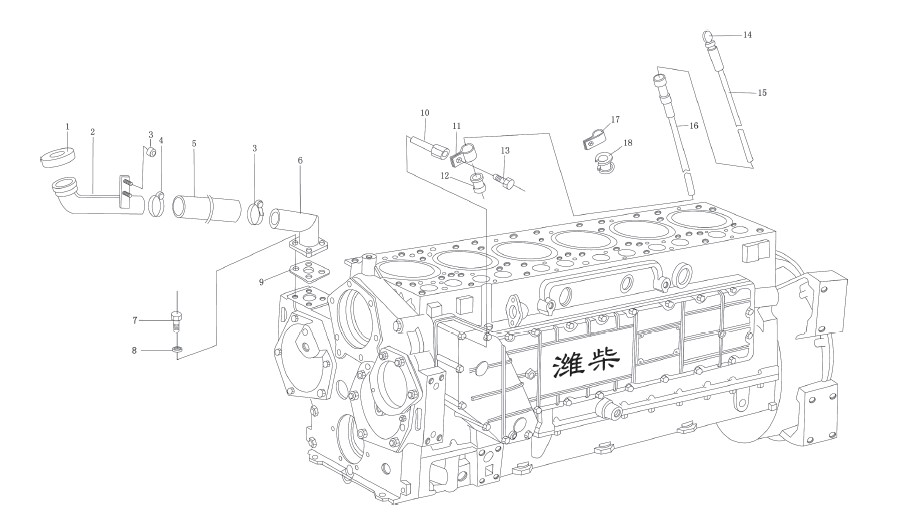

| NO. | Part No. | Chinese Name | Part Name |
| 1 | 612600010489 | 加油管盖组件 | Cover |
| 2 | 612600010522 | 加油管组件 | Nozzle |
| 3 | 90003888451 | 2 型全金属六角头锁紧螺母 | Nut |
| 4 | 90003989306 | 软管卡箍 | Clamp |
| 5 | 61500010079 | 带纤维夹层橡胶软管 | Hose |
| 6 | 61560010028 | 加油短管组件 | Nozzle |
| 7 | 90003802321 | 六角螺栓 | Bolt |
| 8 | 90003931082 | 弹簧垫圈 | Spring washer |
| 9 | 614010086 | 加油短管垫片 | Joint |
| 10 | 612600010639 | 支撑块 | Strut block |
| 11 | 612600010647 | 单管夹片 | Clip |
| 12 | 612600010638 | 橡胶管箍 | Clamp |
| 13 | 90003802411 | 六角头螺栓 | Bolt |
| 14 | 612600010532 | 油标尺 | Oil dipstick |
| 15 | 61800010331 | 油尺管上组件 | Jauge |
| 16 | 612600010705 | 机油尺管下组件 | Jauge |
| 17 | 612600010447 | 单管夹子 | Clip |
| 18 | 612600010446 | 机油标尺橡胶软管 | Connector pipe |
