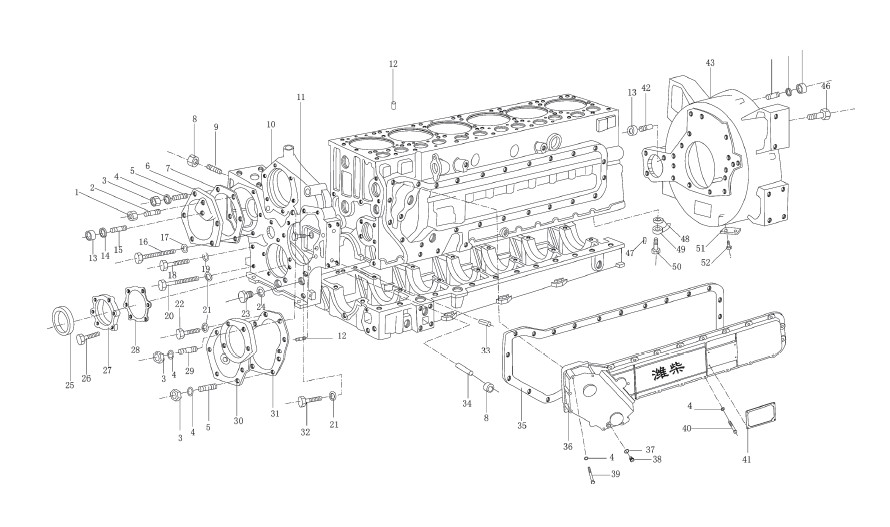

| NO. | Part No. | Chinese Name | Part Name |
| 1 | 90003888451 | 2 型金属六角头螺母 | Nut |
| 2 | 90003813470 | 双头螺柱 | Stud |
| 3 | 90003871352 | 1 型六角头螺母 | Nut |
| 4 | 90003902023 | 波形弹簧性垫圈 | Spring washer |
| 5 | 90003813429 | 双头螺柱 | Stud |
| 6 | 612600010652 | 空压机齿轮盖 | Cover |
| 7 | 614010040 | 空压机齿轮盖垫片 | Shim |
| 8 | 90003888453 | 2 型金属六角头锁紧螺母 | Nut |
| 9 | 90003813638 | 双头螺拄 | Stud |
| 10 | 612600010932 | 正时齿轮室 | Gear |
| 11 | 90003802523 | 六角头螺栓 | Bolt |
| 12 | 90003901507 | 圆柱销 | Pin |
| 13 | 90003888452 | 2 型金属六角锁紧螺母 | Nut |
| 14 | 90003930012 | 垫圈 | Washer |
| 15 | 90003811531 | 双头螺柱 | Stud |
| 16 | 90003802576 | 六角头螺栓 | Bolt |
| 17 | 90003932024 | 波形弹性垫圈 | Spning washer |
| 18 | 90003802561 | 六角头螺栓 | Bolt |
| 19 | 90003931122 | 六 角头螺栓 | Bolt |
| 20 | 90003800571 | 六角头螺栓 | Bolt |
| 21 | 90003932025 | 鞍形弹性垫圈 | Spring washer |
| 22 | 90003862524 | 内六角圆柱头螺钉 | Screw |
| 23 | 90003962051 | 六角头螺栓 | Bolt |
| 24 | 90003098086 | 密封垫圈 | Seal washer |
| 25 | 61500010037 | 前油封接受圈 | Ring |
| 26 | 90003862327 | 内六角圆柱头螺钉 | Screw |
| 27 | 612600010928 | 前油封座 | Front oil seal seat |
| 28 | 612600010934 | 前油封垫片 | Shim |
| 29 | 90003813443 | 双头螺拄 | Stud |
| 30 | 61500010008A | 凸轮轴齿轮盖总成 | Cover |
| 31 | 614010070 | 凸轮轴齿轮盖垫片 | Cover |
| 32 | 90003862532 | 内六角圆柱头螺钉 | Screw |
| 33 | 90003909626 | 弹性圆柱销 | Pin |
| 34 | 90003813628 | 双头螺柱 | Stud |
| 35 | 614010084B | 机油冷却器盖垫片 | Joint |
| 36 | 614010083B | 机油冷却器盖 | Joint |
| 37 | 90003098014 | 密封垫圈 | Seal wahser |
| 38 | 90003962020 | 六角头螺栓 | Bolt |
| 39 | 90003800467 | 六角头螺栓 | Bolt |
| 90003800465 | 六角头螺栓 | Bolt | |
| 40 | 90003802424 | 六角头螺栓 | Bolt |
| 41 | 612600010193 | 铭牌 | Nameplate |
| 42 | 90003813527 | 双头螺栓 | Stud |
| 43 | 61500010012 | SAE1 飞轮壳 | Flywheel |
| 44 | 90003813537 | 双头螺柱 | Stud |
| 45 | 90003871305 | 1 型六角螺母 | Nut |
| 46 | 61500010101 | 飞轮壳螺栓 | Bolt |
| 61500010062 | 飞轮壳螺栓 | Bolt | |
| 47 | 90003909603 | 弹性圆柱销 | Pin |
| 48 | 90003098015 | 密封垫圈 | Seal washer |
| 49 | 612600010659 | 喷嘴组件 | Spraying nozzle |
| 61560010090 | 喷嘴总成 | Spraying assembly | |
| 50 | 90003962621 | 空心螺栓 | Bolt |
| 51 | 1800210011 | 观察孔盖 | Cover |
| 52 | 90003802511 | 六角头螺栓 | Bolt |
