DRIVER CAB

Product catalog

DRIVER CAB

THE INNER CEILING PANEL OF CAB CANOPY
2016-09-27

NO. Part No. Part Name Quantity 1 WG1644770150 bracket 1 2 WG1644770149 bracket 1 3 WG1644770155 bracket 1 4 WG1644770123 bracket assy I 1 5 WG1644770125 bracket assy II 1 6 WG1644770122 Rubber buffer 1 7 WG1644770140 board 1
read more

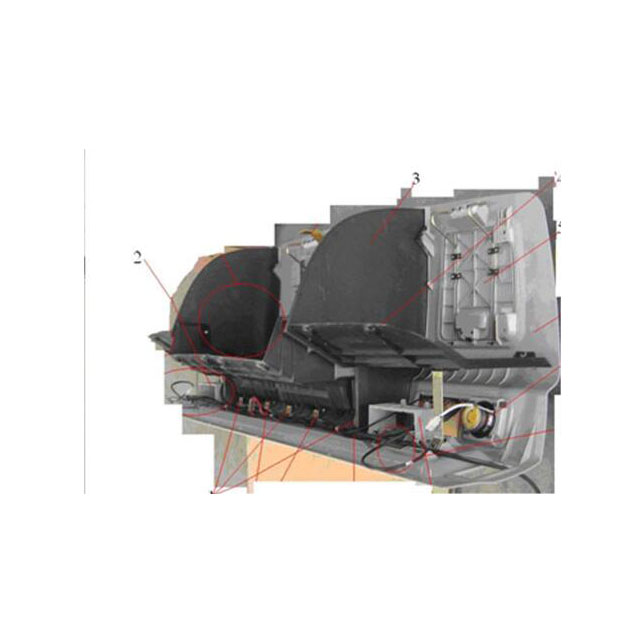

THE SUNDRIES BOX
2016-09-27

NO. Part No. Part Name Quantity 0 WG1644770102 Box body 1 1 WG1644770103 middle clapboard assy 1 2 WG1644770105 Bracket assy 1 3 WG1644770108 left clapboard assy 1 4 WG1644770117 left clapboard assy 1 5 WG1644770135 cover 1 6 WG1644770116 right clapboard assy 1 7 WG1644770120 right clapboard assy 1 8 WG1644770138 cover 1 9 WG1644770127 cover 1 10 WG1644770145 middle clapbo...
read more

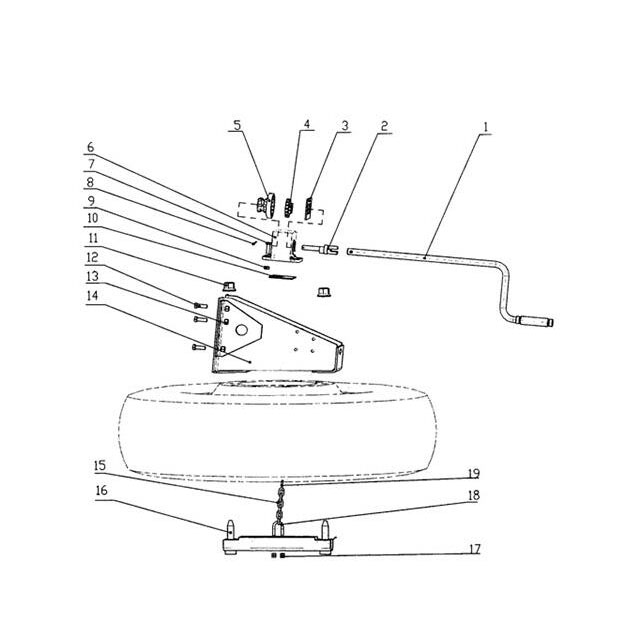

SPARE WHEEL CARRIER
2016-09-27

NO. Part No. Part Name Quantity 0 WG9719860027 Drive device（include 2~19） 1 0 AZ9719860018 Drive device（include 2~10,15~19） 1 1 AZ9719860014 Cranker 1 2 AZ9719860012 Shaft 1 3 17017860022 Locking sheet 1 4 17017860023 Drive wheel 1 5 17017860024 Driven wheel 1 6 AZ9719860007 Housing 1 7 Q150B1035 Screw 4 8 Q5004030 Split pin 1 9 Q33210 Nut 4 10 17017860027 Coveer 1 11 WG9003884160 Whee...
read more
