6×4SWIVEL SPRING AND SUSPENSION

Product catalog

SUSPENSION

6×4SWIVEL SPRING AND SUSPENSION

2016-09-27 13:32:08

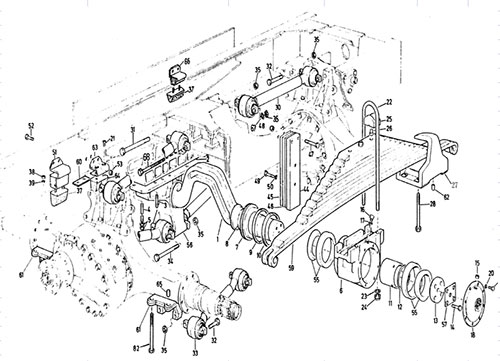

NO.	Part No.	Part Name	Quantity
0	AZ9725520110	Balance shaft C with housing (incl.1~20)	1
1	AZ9232520004	Balance shaft C	1
2	199014520217	Bracket	2
3	Q5211645	Pin	2
4	WG9014520227	Stud	28
5	190003871353	Nut	28
6	AZ9725520038	Blance shaft shouing	2
7	199114520136	Bearing sealing cover	2
8	WG614 130062	Sealing ring	2
9	AZ9114520223	Sealing ring	2
10	AZ9114520222	Ring	2
11	199014520191	Bush	2
12	199014520192	Spacer washer (option)	2
12a	199014520193	Spacer washer (option)	2
12b	199014520194	Spacer washer (option)	2
12c	199014520303	Spacer washer (option)	2
12d	199014520306	Spacer washer (option)	2
12e	99114520059	Spacer washer (option)	2
12f	AZ9100520008	Spacer washer (option)	2
13	199014520265	Stop washer	2
14	Q171B1655TF2	Screw	8
14a	WG9114520041	Screw	2
15	190003962021	Screw	2
16	Q150B0810	Screw	2
17	Q72308T5F	Gasket	2
18	199014520311	Cover	2
19	Q150B0820	Screw	16
20	Q40308	Spring washer	16
22	AZ9725520037	Spring clip	4
22/A	AZ9725520057	Spring clip	4
23	1880 340022	Washer	8
24	190003888749	Lock nut	8
24-A	AZ9625520749	Lock nut	8
25	AZ9638520005	Spring clip plate	2
26	199000520006	Guide bolt	4
27	AZ9725520001	Bracket left,front	1
27a	AZ9725520002	Bracket right,front	1
27b	AZ9725520003	Bracket left,rear	1
27c	AZ9725520004	Bracket right,rear	1
28	Q151B22230	Screw	16
30	WG9114521174	Bottom brace rod C	4
30/A	AZ9631521174	Bottom brace rod C	4
31	Q151B2090	Screw	2
32	190003803974	Screw	12
32/A	Q151B2090	Screw	12
33	WG9114521175	Top brace rod C	2
33/A	AZ9631521175	Top brace rod C	2
34	Q151B20200	Screw	4
35	190003888467	Lock nut	18
37	AZ9114520091	Stop C	4
37A	Q150B1035	Screw	16
38	Q340B10	Nut	16
39	Q40310	Spring washer	16
45
