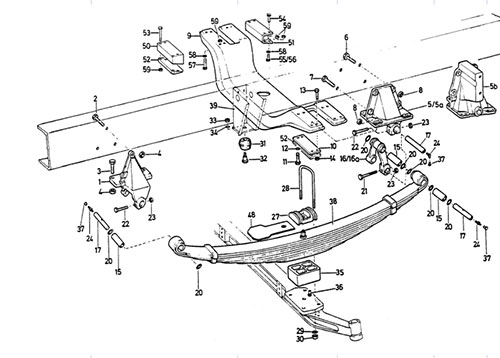

| NO. | Part No. | Part Name | Quantity |
| 1 | AZ9719520005 | Spring bracket front | 2 |
| 2 | Q151B1665 | Screw | 6 |
| 3 | Q151B1650 | Screw | 4 |
| 4 | 19003888459 | Nut | 10 |
| 5 | WG9232520010 | Spring bracket rear,left | 1 |
| 5a | WG9232520011 | Spring bracket rear,right | 1 |
| 6 | Q151B1650 | Screw | 8 |
| 8 | 190003888459 | Lock nut | 8 |
| 9 | WG9114510510 | Cross member | 1 |
| 10 | 199100520025 | Plate | 8 |
| 13 | Q151G1260 | Screw | 16 |
| 14 | 190003888457 | Lock nut | 16 |
| 15 | WG9000520078 | Bush | 4 |
| 16 | WG9100520034 | Spring shackle front C | 2 |
| 17 | WG9100520065 | Spring bolt | 6 |
| 20 | 1680 520050 | Washer | 12 |
| 21 | Q151C1270 | Screw | 2 |
| 22 | Q151C1275 | Screw | 4 |
| 23 | 190003888457 | Nut | 6 |
| 24 | 190003963115 | Grease nipple | 2 |
| 26 | 190003963127 | Grease nipple | 4 |
| 27 | WG80 520002 | Plate | 2 |
| 28 | AZ9100520015 | Spring clip | 4 |
| 28/A | 199014520238 | Spring clip | 4 |
| 29 | 1680 520056 | Washer | 8 |
| 30 | 190003888626 | Lock nut | 8 |
| 31 | WG9323520010 | Spring stop | 2 |
| 32 | 1880 520019 | Screw | 2 |
| 33 | Q340B10 | Nut | 2 |
| 34 | Q40310 | Spring washer | 2 |
| 38 | WG9100520042 | Front spring C, right | 1 |
| 38 | WG9100520002 | Front spring C, left | 1 |
| 39 | AZ9731520034 | Bracket for spring stop | 2 |
| 39a | Q150B1240 | Screw | 4 |
| 39b | Q150B1230 | Screw | 4 |
| 39c | Q33212 | Lock nut | 8 |
