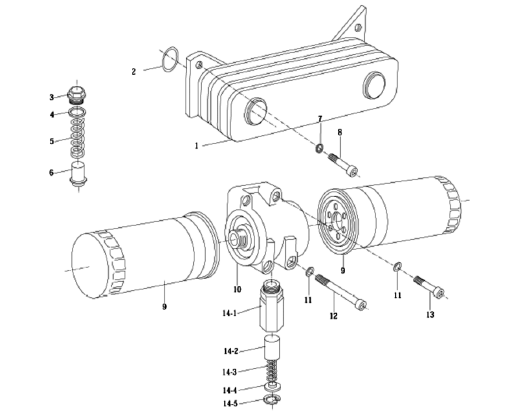

NO. |
Part No. |
Chinese Name |
Part Name |
|
1 |
61500010334 |
机油冷却器芯总成 |
Oil cooler core assembly |
|
2 |
81400010032 |
密封圈 |
Sealing ring |
|
3 |
6.126E+11 |
六角头螺塞 |
Six hexagon head screw |
|
4 |
6.126E+11 |
复合垫圈 |
Composite washer |
|
5 |
614070068 |
安全阀弹簧 |
Safety valve spring |
|
6 |
614070069 |
安全阀 |
Safety valve |
|
7 |
90003932023 |
波形弹性垫圈 |
Wave spring washer |
|
8 |
90003802419 |
内六角圆柱头螺钉 |
Inner six angle cylinder head screw |
|
9 |
61000070005 |
旋转式机油滤芯总成 |
Rotary type oil filter assembly |
|
10 |
61500070051 |
滤清器座组件 |
Filter seat assembly |
|
11 |
90003932023 |
波形弹性垫圈 |
Wave spring washer |
|
12 |
90003862482 |
内六角圆柱头螺钉 |
Inner six angle cylinder head screw |
|
13 |
90003862443 |
内六角圆柱头螺钉 |
Inner six angle cylinder head screw |
|
14 |
AZ1500070097 |
主油道压阀总成 |
Main oil pressure valve assembly |
|
1月14日 |
AZ1500070096 |
阀体 |
Body |
|
2月14日 |
407070032 |
阀 |
Valve |
|
3月14日 |
407070034 |
主油道限压阀弹簧座 |
Main oil pressure limiting valve spring seat |
|
4月14日 |
4139070059 |
主油道限压阀弹簧 |
Main oil pressure limiting valve spring |
|
41773 |
Az90003930012 |
孔用弹性挡圈 |
Circlip for hole |
|
NO. |
Part No. |
Chinese Name |
Part Name |
|

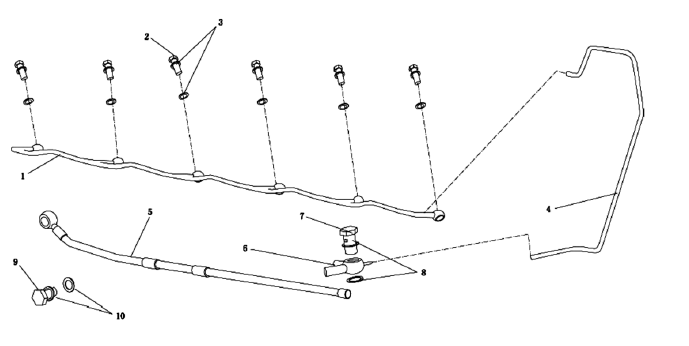

1 |
6.126E+11 |
回油管总成 |
Return line assembly |
|
2 |
90003962603 |
空心螺栓 |
Hollow bolt |
|
3 |
6.126E+11 |
密封垫圈 |
Sealing washer |
|
4 |
6.126E+11 |
回油管 |
Return line |
|
5 |
6.126E+11 |
回油管 |
Return line |
|
6 |
61260008065 |
三通管接头 |
Three way pipe joint |
|
7 |
6.12639E+11 |
空心螺栓 |
Hollow bolt |
|
8 |
6.12639E+11 |
密封垫圈 |
Sealing washer |
|
9 |
6.12639E+11 |
空心螺栓 |
Hollow bolt |
|
10 |
6.12639E+11 |
密封垫圈 |
Sealing washer |
|
11 |
6.12639E+11 |
空心螺栓 |
Hollow bolt |
|
12 |
6.12639E+11 |
密封垫圈 |
Sealing washer |
|
13 |
6.126E+11 |
燃油管总成 |
Fuel pipe assembly |
|
14 |
6.126E+11 |
燃油管总成 |
Fuel pipe assembly |
|
15 |
6.126E+11 |
燃油管总成 |
Fuel pipe assembly |
|
16 |
6.126E+11 |
燃油管总成 |
Fuel pipe assembly |
|
17 |
6.12639E+11 |
六角头螺栓 |
Hexagon headed bolt |
|
18 |
90003802532 |
