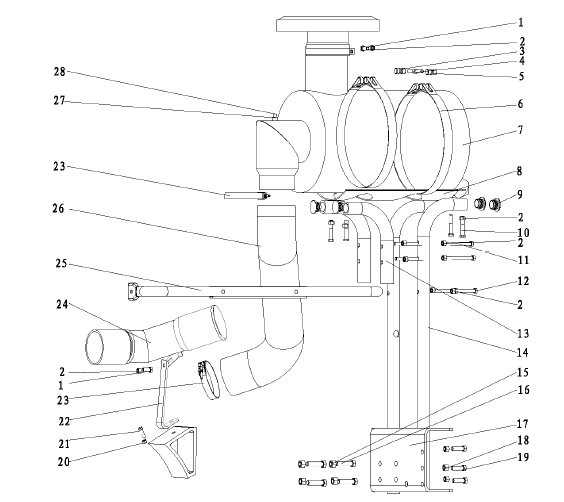

NO. |
Part No. |
Chinese Name |
Part Name |
|
1 |
Q150B1025 |
六角头螺栓 |
Hex screw |
|
2 |
Q33210 |
2 型全金属六角锁紧螺母 |
Hex. nut |
|
3 |
1.28001E+11 |
内螺纹销 |
Inside screw
thread dowel |
|
4 |
1.28001E+11 |
拉紧螺栓 |
Strain screw |
|
5 |
1.28001E+11 |
内螺纹销 |
Inside screw
thread dowel |
|
6 |
DZ93259190108 |
紧固带 |
Close strip |
|
7 |
DZ93259190101 |
空滤器总成（带防雨帽） |
Air cleaner |
|
8 |
DZ93259190160 |
安装板 |
Fix plate |
|
9 |
DZ91259955111 |
堵盖 |
Stopper |
|
10 |
Q150B1060 |
六角头螺栓 |
Hex screw |
|
11 |
Q150B10100 |
六角头螺栓 |
Hex screw |
|
12 |
Q150B1085 |
六角头螺栓 |
Hex screw |
|
13 |
DZ93259190138 |
支柱管 |
Brace |
|
14 |
DZ93259190158 |
支柱管（一） |
Brace |
|
15 |
Q33214 |
2 型全金属六角锁紧螺母 |
Hex. nut |
|
16 |
Q150B1455 |
六角头螺栓 |
Hex screw |
|
17 |
DZ93259190154 |
空滤器托架总成 |
Bracket |
|
18 |
Q33212 |
2 型全金属六角锁紧螺母 |
Hex. nut |
|
19 |
Q150B1265 |
六角头螺栓 |
Hex screw |
|
20 |
Q33208 |
2 型全金属六角锁紧螺母 |
Hex. nut |
|
21 |
Q150B0830 |
六角头螺栓 |
Hex screw |
|
22 |
DZ9112190168 |
角型支架 |
Triangle bracket
|
|
23 |
DZ9003532122 |
T 型卡箍 |
Clip |
|
24 |
DZ1560110168 |
压气机进气管总成 |
Air intake pipe |
|
25 |
DZ93259190161 |
横拉杆总成 |
Pull pole |
|
26 |
DZ9112190090 |
空气软管 |
Hose |
|
27 |
1.61E+11 |
干式空滤器堵塞开关 |
Stopper switch |
|
28 |
1.69E+11 |
保护罩 |
Protect cover |
