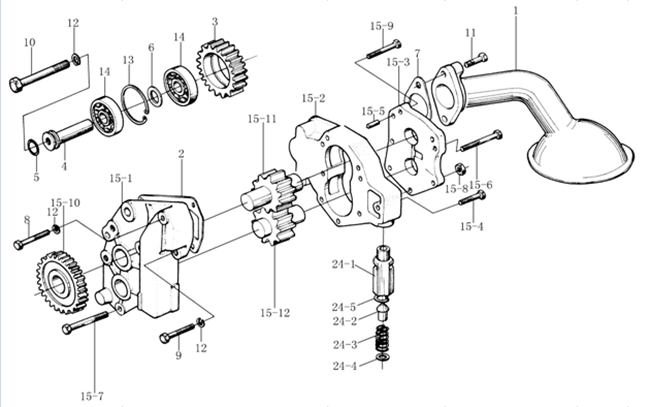

NO. | Part No. | Part Name | Quantity |
1 | VG1800070051 | Suction pipe | 1 |
2 | VG14070055 | Gasket | 1 |
3 | VG14070061 | Idler gear | 1 |
4 | VG14070056 | Axle | 1 |
5 | VG14070155 | O-ring | 1 |
6 | VG14070049 | Ring | 1 |
7 | VG14070078 | Joint | 1 |
8 | 190003800551 | Screw | 1 |
9 | 190003802527 | Screw | 1 |
10 | 190003802578 | Screw | 1 |
11 | 190003802523 | Screw | 2 |
12 | 190003931122 | Washer | 2 |
13 | 190003934732 | Circlip | 1 |
14 | 190003311410 | Ball bearing | 2 |
15 | VG1500070021 | Oil pump | 1 |
1/15 | VG1500070029 | Front cover | 1 |
2/15 | VG1500070015 | Housing | 1 |
3/15 | VG1500070024 | Rear cover | 1 |
4/15 | 190003800530 | Screw | 1 |
5/15 | 190003901420 | Pin | 4 |
6/15 | 190003800566 | Screw | 4 |
7/15 | 190003800579 | Screw | 1 |
8/15 | 190003871303 | Nut | 1 |
9/15 | Q218B1070 | Screw | 1 |
10/15 | VG14070060 | Gear | 1 |
11/15 | VG1500070020 | Gear pair | 1 |
24 | VG1560070099 | Release valve C | 1 |
1/24 | VG1500070098 | Valve body | 1 |
2/24 | VG14070130 | Valve cone | 1 |
3/24 | VG14070131 | Valve spring | 1 |
4/24 | VG681270027 | Washer | 1 |
5/24 | VG9003920029 | Split pin | 1 |
