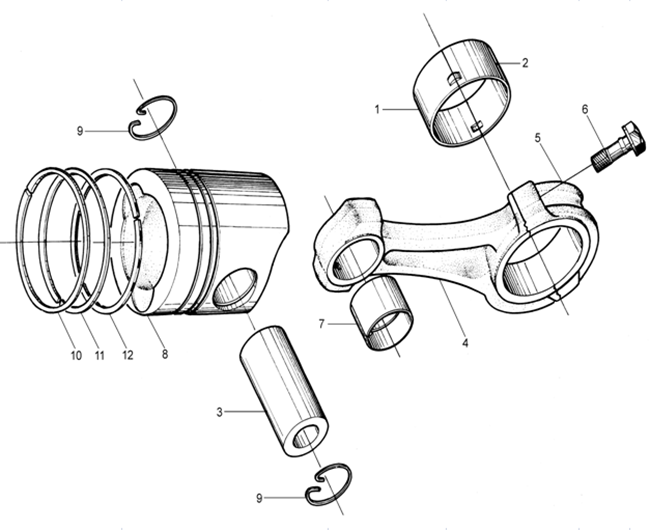

NO. | Part No. | Part Name | Quantity |
1 | VG1560030034J | Uper sleeve bearing | 6 |
1/A | VG1560030034 | Uper sleeve bearing | 6 |
2 | VG1560030034 | sleeve bearing | 6 |
2/A | VG1560030033 | sleeve bearing | 6 |
3 | VG1560030013 | Piston pin | 6 |
- | VG1560030009 | Connecting rod assembly | 6 |
4 | 161500030008 | Connecting rod | 6 |
5 | 161500030022 | Connecting cover | 6 |
6 | VG1500030023 | Screw | 12 |
7 | VG1500030077 | Bush | 6 |
8 | VG2600030011 | Piston | 6 |
8/A | VG1560037011 | Piston | 6 |
9 | VG1560030012 | Retaining ring | 12 |
10 | VG1560030046 | Double ladderring | 6 |
11 | VG1560030078 | Conical ring | 6 |
12 | VG1560030045 | Spiral spring oil ring | 6 |
