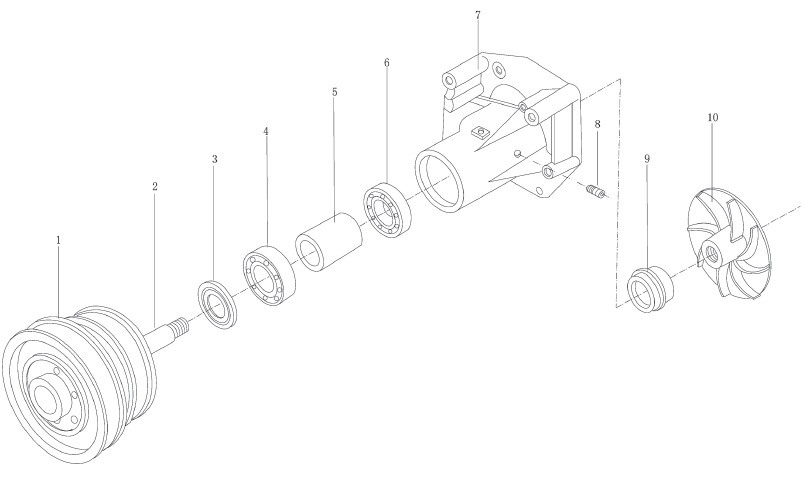

| NO. | Part No. | Chinese Name | Part Name |
| 1 | 612600060390 | 皮带轮 | Belt |
| 2 | 61500060248 | 泵轴 | Shaft |
| 3 | 61500060237 | 防护圈 | Ring |
| 4 | 90016040012 | 圆柱滚子轴承 | Bearing |
| 5 | 6150006025l | 支承套 | Bush |
| 6 | 90016020017 | 深沟球轴承 | Bearing |
| 7 | 61500060234 | 水泵体 | Pump body |
| 8 | 612600060538 | 紧定螺钉 | Screw |
| 9 | 612600060539 | C16水封总成 | Water seal ass’y |
| 10 | 61500060249 | 水泵叶轮 | Bottom roller |
