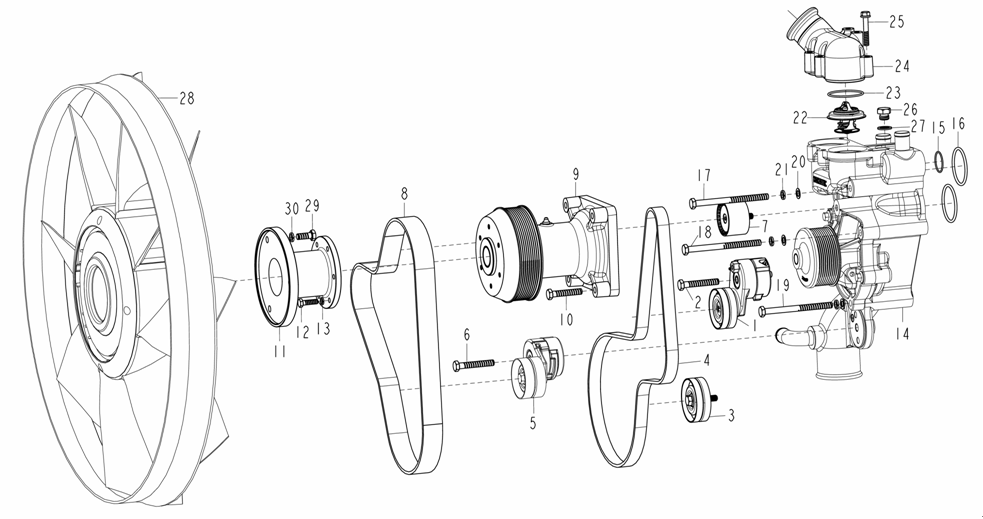

| NO. | Part NO | Part Name | Chinese Name |
| 1 | VG1246060001 | 自动张紧轮总成 | Automatic tensioning roller assembly |
| 2 | Q150B1065TF2 | 六角头螺栓 | Hex head bolt |
| 3 | VG1246060004 | 平惰轮 | Idle pulley |
| 4 | VG1246060008 | 多楔带 | Poly V belt |
| 5 | VG1246060002 | 自动张紧轮总成 | Automatic tensioning roller assembly |
| 6 | Q150B1065TF2 | 六角头螺栓 | Hex head bolt |
| 7 | VG1246060047 | 平惰轮 | Idle pulley |
| 8 | VG1246060082 | 多楔带 | Poly V belt |
| 9 | VG1246060070 | 风扇托架总成 | Fan support assembly |
| 10 | Q150B1055 | 六角头螺栓 | Hex head bolt |
| 11 | VG1246060045 | 中间法兰 | Flange |
| VG1246060046A | 中间法兰 | Flange | |
| 12 | Q150B0830 | 六角头螺栓 | Hex head bolt |
| 13 | Q40308 | 弹簧垫圈 | Spring washer |
| 14 | VG1246060042 | 水泵总成 | Water pump assembly |
| 15 | VG1246060027 | O型密封圈 | O-ring |
| 16 | VG1246060028 | O型密封圈 | O-ring |
| 17 | Q150B10150 | 六角头螺栓 | Hex head bolt |
| 18 | Q150B10135 | 六角头螺栓 | Hex head bolt |
| 19 | Q150B10125 | 六角头螺栓 | Hex head bolt |
| 20 | Q40110 | 平垫圈 | Washer |
| 21 | Q40310 | 弹簧垫圈 | Spring washer |
| 22 | VG1246060024 | 节温器 | Thermostat |
| VG1246060029 | 节温器（选装） | Thermostat | |
| 23 | VG1246060025 | O型密封圈 | O-ring |
| 24 | VG1246060023 | 节温器壳体 | Thermostat housing |
| 25 | Q1840850 | 六角法兰面螺栓 | Hex head bolt |
| 26 | Q617B14 | 六角头螺塞 | Screw plug |
| 27 | VG9003080005 | 复合密封垫圈 | Sealing washer |
| 28 | VG1234060034 | ø646环形硅油风扇总成 | Jet ring fan |
| VG1246060030 | ø704环形硅油风扇总成 | Jet ring fan & viscous drive assembly | |
| VG1246060051 | ø758环形硅油风扇总成 | Jet ring fan & viscous drive assembly | |
| 29 | Q150B1025 | 六角头螺栓 | Hex head bolt |
| 30 | Q40310 | 弹簧垫圈 | Spring washer |
