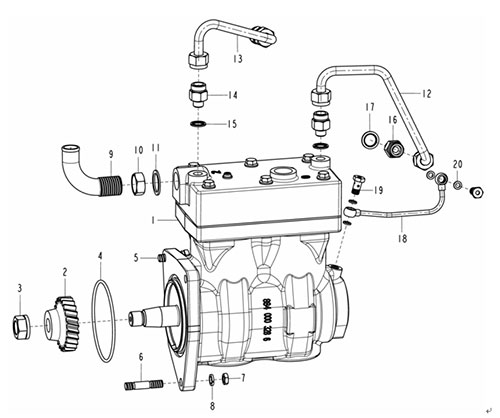

| NO. | Part No. | Chinese Name | Part name |
| 1 | VG1246130008 | 空压机总成 | Air compressor |
| 2 | VG1246130009 | 空压机齿轮 | Air compressor gear |
| 3 | VG1246130010 | 六角螺母 | Hexagon nut |
| 4 | VG1246130012 | O型密封圈 | O-ring |
| 5 | Q150B1030 | 六角头螺栓 | Hex head bolt |
| 6 | Q1201040F3 | 双头螺栓 | Hex head bolt |
| 7 | Q340B10 | 六角螺母 | Hexagon nut |
| 8 | Q40310 | 弹簧垫圈 | Spring washer |
| 9 | VG1246130016 | 空压机进气管接头 | Elbow connector |
| 10 | 190004000000 | 六角螺母 | Hexagon nut |
| 11 | VG2600130037 | 垫圈 | Washer |
| 12 | VG1246130003A | 空压机进水管总成 | Water supply pipe assembly |
| 13 | VG1246130020A | 空压机出水管总成 | Water drain pipe assembly |
| 14 | VG1246130021 | 管接头 | Pipe connector |
| 15 | VG9003080005 | 复合密封垫圈 | Sealing washer |
| 16 | VG1246130022 | 管接头 | Pipe connector |
| 17 | VG9003080006 | 复合密封垫圈 | Sealing washer |
| 18 | VG1246130006 | 空压机进油管 | Oil supply pipe assembly |
| 19 | 190004000000 | 空心螺栓 | Hollow bolt |
| 20 | VG9003080003 | 复合密封垫圈 | Sealing washer |
