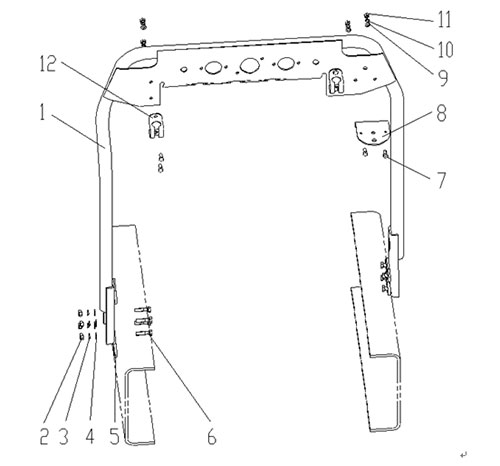

| NO | PART NO | Quantity | Part Name | 名 称 |
| 1 | AZ9925360813 | 1 | Spiral tube mounting bracket assembly | 螺旋管安装支架总成 |
| 2 | Q340810 | 8 | Hexagonal nut | 六角螺母 |
| 3 | Q40310 | 8 | Spring washer | 弹簧垫圈 |
| 4 | Q40110 | 8 | Flat washer | 平垫圈 |
| 5 | AZ9725550001 | 8 | The big washer | 大垫圈 |
| 6 | Q150B1040 | 8 | Hexagon head bolts | 六角头螺栓 |
| 7 | Q150B0820 | 6 | Hexagon head bolts | 六角头螺栓 |
| 8 | AZ9718360028 | 1 | Work light mounting bracket | 工作灯安装支架 |
| 9 | Q40108 | 6 | Flat washer | 平垫圈 |
| 10 | Q40308 | 6 | Spring washer | 弹簧垫圈 |
| 11 | Q340B08 | 6 | Type 1 hexagonal nut | 1型六角螺母 |
| 12 | AZ9718360027 | 2 | Trailer connector fixed bracket | 挂车接头固定支架 |
