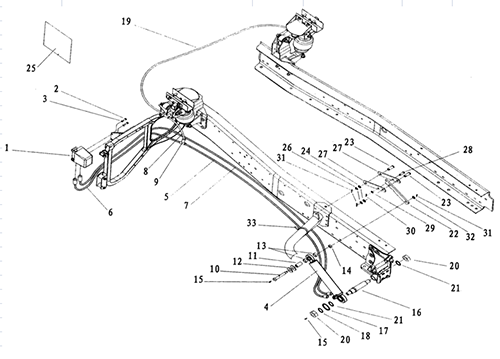

| NO. | Part No. | Part Name | Quantity |
| 1 | WG9719820001 | Hydr.hand pump | 1 |
| 2 | Q150B1020 | Screw | 2 |
| 3 | Q40310 | Spring washer | 2 |
| 4 | WG9719820002 | Hydr.cylinder | 1 |
| 5 | WG9719820005 | High pressure hose | 1 |
| 6 | WG9719820006 | High pressure hose | 1 |
| 7 | WG9719820007 | High pressure hose | 1 |
| 8 | WG1642440075 | High pressure hose | 1 |
| 9 | 190003559482 | T-nozzle | 1 |
| 10 | AZ9719820008 | Support shaft I | 1 |
| 11 | AZ9719820009 | Bush | 1 |
| 12 | Q40216 | Washer | 1 |
| 13 | AZ9719820012 | Bush | 2 |
| 14 | 190003888459 | Lock nut | 1 |
| 15 | Q700B06 | Grease nipple | 2 |
| 16 | AZ9719820010 | Support shaft II | 1 |
| 16/A | AZ9719820015 | Support shaft II | 1 |
| 17 | WG9719820011 | Washer | 1 |
| 18 | Q40124 | Washer | 1 |
| 20 | Q33424 | Lock nut | 2 |
| 21 | WG9719820013 | Washer | 2 |
| 22 | AZ9719820021 | Above brace | 1 |
| 23 | Q5101428 | Bolt | 2 |
| 24 | Q40114 | Washer | 2 |
| 25 | AZ9719930390 | Hydraulic cylindder bracket | 1 |
| 26 | Q41814 | Washer | 2 |
| 27 | AZ9719820022 | Bottom brace | 2 |
| 28 | 190003903452 | Bolt | 1 |
| 29 | Q41710 | Washer | 1 |
| 30 | Q5003216 | Split pin | 1 |
| 31 | Q5004028 | Split pin | 2 |
| 32 | Q40112 | Washer | 1 |
| 33 | 190003171356 | Plastic circlip | 15 |
