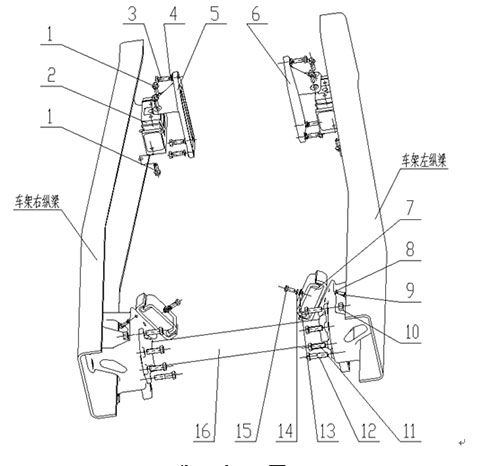

| NO. | Part No. | Quantity | Part Name | Chinese Name |
| 1 | Q1811235 | 8 | Screw | 六角法兰面带齿螺栓 |
| 2 | WG9100590031 | 2 | Bearing | 楔形支承总成 |
| 3 | Q151B1440 | 6 | Screw | 六角头螺栓 |
| 4 | Q40314 | 6 | Spring washer | 弹簧垫圈 |
| 5 | AZ9925590059 | 1 | Support left | 发动机后右支撑 |
| 6 | AZ9925590058 | 1 | Support right | 发动机后左支撑 |
| 7 | AZ9725591020 | 2 | Rubber support | 橡胶支撑总成 |
| 8 | Q40310 | 4 | Spring washer | 弹簧垫圈 |
| 9 | Q150B1025 | 4 | Screw | 六角头螺栓 |
| 10 | Q33216 | 10 | Nut | 2型全金属六角锁紧螺母 |
| 11 | Q150B1650 | 6 | Screw | 六角头螺栓 |
| 12 | Q150B1665 | 4 | Screw | 六角头螺栓 |
| 13 | Q40112 | 2 | Washer | 垫圈 |
| 14 | Q40312 | 2 | Spring washer | 弹簧垫圈 |
| 15 | Q150B1228 | 2 | Screw | 六角头螺栓 |
| 16 | AZ9925590009 | 1 | Crossbar | 管状横梁总成 |
