2016-09-27 11:51:33

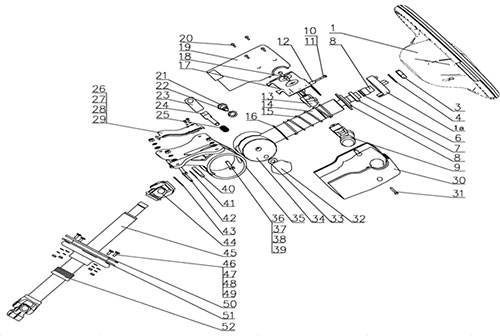

| NO. | Part No. | Part Name | Quantity |
| 1 | WG9719470100 | Steering wheel | 1 |
| 1a | WG9130583018 | Ring | 1 |
| 2 | WG9130583024 | Touch ring | 1 |
| 2a | AZ9719470050 | Steering tube assembly | 1 |
| 2b | AZ9719471050 | Steering tube assembly | 1 |
| 3 | Q351B22T15 | Nut | 1 |
| 4 | Q41822 | Spring washer | 1 |
| 6 | Q43125 | Snap ring | 1 |
| 7 | AZ9003320012 | Ball bearing | 1 |
| 8 | AZ9719470053 | Steering shaft | 1 |
| 9 | WG9130583019 | Start switch | 1 |
| 10 | Q150B0530 | Screw | 1 |
| 11 | Q340B05 | Nut | 1 |
| 12 | 81958010071 | Roller | 1 |
| 13 | 81464330005 | Clip | 1 |
| 14 | AZ9719470051 | Sleeve | 1 |
| 15 | AZ9123470129 | Spring | 1 |
| 16 | AZ9123470130 | Washer | 1 |
| 17 | AZ9100470424 | Support | 1 |
| 18 | Q150B0865 | Screw | 2 |
| 19 | AZ9719470041 | Cover of the steering column rear | 1 |
| 20 | Q2720412 | Screw | 4 |
| 21 | AZ9719470057 | Screw | 1 |
| 22 | Q40316 | Spring washer | 1 |
| 23 | AZ9719470058 | Plate | 1 |
| 24 | AZ9719470055 | Adjusting screw | 1 |
| 25 | AZ9123470153 | Spring | 1 |
| 26 | AZ9719470052 | Bracket for electrical line | 1 |
| 27 | Q150B0408 | Screw | 2 |
| 28 | Q40304 | Spring washer | 2 |
| 29 | Q40104 | Washer | 2 |
| 30 | AZ9719470042 | Cover of the steering column front | 1 |
| 31 | Q2714250 | Screw | 2 |
| 32 | AZ9123470150 | Hand wheel | 1 |
| 33 | AZ9123470155 | Washer | 1 |
| 34 | AZ9719470054 | Sleeve | 1 |
| 35 | AZ9719470056 | Support | 1 |
| 36 | Q150B0830 | Screw | 4 |
| 37 | Q340B08 | Nut | 4 |
| 38 | Q40308 | Spring washer | 4 |
| 39 | Q40108 | Washer | 4 |
| 40 | AZ9003320013 | Ball bearing | 1 |
| 41 | Q43130 | Snap ring | 1 |
| 42 | 81917100459 | Ring | 1 |
| 43 | Q43042 | Snap ring | 1 |
| 44 | AZ9719470043 | Gimbal –assembly | 1 |
| 45 | AZ9719470044 | Telescopic shaft | 1 |
| 46 | Q199B0616 | Screw | 4 |
| 47 | Q340B06 | Nut | 4 |
| 48 | Q40306 | Spring washer | 4 |
| 49 | Q40106 | Washer | 4 |
| 50 | AZ9719470045 | Bellow | 1 |
| 51 | AZ9719470046 | Plate | 2 |
| 52 | AZ9100470410 |
