| NO. | Part No. | Quantity | Part Name | Chinese name |

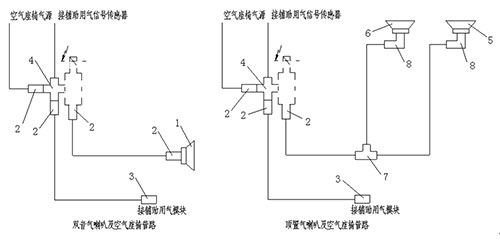

| 1 | WG9000270002 | 1 | Dual air horn without stents | 双音气喇叭无支架 |
| 2 | WG9000361107 | 4 | Through joint NG6 / NW4 | 直通接头体NG6/NW4 |
| 3 | ||||
| 3 | WG9000361109 | 1 | Through joint NG8 / NW4 | 直通接头体NG8/NW4 |
| 4 | WG9000361405 | 1 | 2 - NG6 cross connectors body/M10 x 1 / L6 | 十字四通接头体2-NG6/M10×1/L6 |
| 5 | WG9000270004 | 1 | Air horn assembly (arbor) | 气喇叭总成(长杆) |
| 6 | WG9000270005 | 1 | Air horn assembly (rod) | 气喇叭总成(短杆) |
| 7 | WG9000361317 | 1 | T the tee joint body 3 - NW6 | T型三通接头体3-NW6 |
| 8 | WG9000361207 | 2 | NG6 / NW4 right Angle connector body | 直角接头体NG6/NW4 |
| 其他管路连接件Other pipe fittings | ||||
| AZ9925360863 | 1 | Dual air horn stents | 双音气喇叭支架 | |
| Q150B0620 | 2 | Hexagon head bolts | 六角头螺栓 | |
| Q40306 | 2 | Spring washer | 弹簧垫圈 | |
| Q40106 | 2 | Flat washer | 平垫圈 | |
| Q340B06 | 2 | Type I hexagonal nut | I型六角螺母 | |
| WG9000361001 | 2 | Elastic element NG6 | 弹性元件NG6 | |
| 3 | ||||
| WG9000361002 | 2 | Circlip NG6 | 卡簧NG6 | |
| 3 | ||||
| WG9000361003 | 2 | Nut seat NG6 | 螺母座NG6 | |
| 3 | ||||
| Q150B0816 | 2 | Hexagon head bolts | 六角头螺栓 | |
| Q40308 | 2 | Spring washer | 弹簧垫圈 | |
| Q40108 | 2 | Flat washer | 平垫圈 | |
| Q340B08 | 2 | Type I hexagonal nut | I型六角螺母 | |
| Q150B0830 | 6 | Hexagon head bolts | 六角头螺栓 | |
| Q40308 | 6 | Spring washer | 弹簧垫圈 | |
| Q40108 | 6 | Flat washer | 平垫圈 | |
| 190003179782 | 8 | Polyamide phi pipe 6 | 聚酰胺管子φ6 | |
