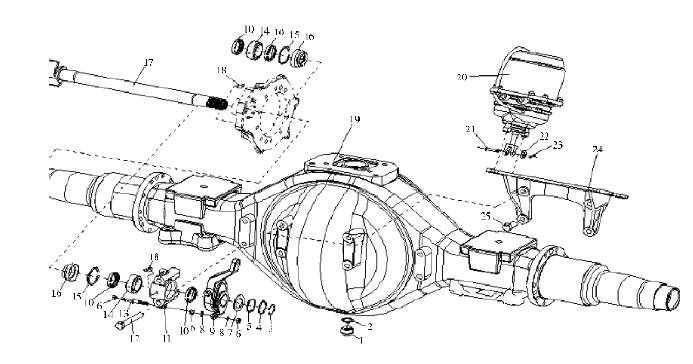

NO. |
Part No. |
Chinese Name |
Part Name |
|
1 |
58600330015 |
磁性螺塞总成 |
Magnetic plug assembly |
|
2 |
AZ9003090001 |
密封垫圈 |
Seal washer |
|
3 |
06.29010.0127 |
轴用弹性挡圈 |
Circlip for axle |
|
4 |
81.90711.0739 |
平垫圈 |
Plain washer |
|
5 |
81.90711.0706 |
调整垫圈 |
Adjusting washer |
|
|
81.90711.0707 |
调整垫圈 |
Adjusting washer |
|
|
81.90711.0738 |
调整垫圈 |
Adjusting washer |
|
6 |
Q340B08 |
Ⅰ型六角螺母 |
I-type hex nut |
|
7 |
81.90711.0714 |
指示片 |
Indicating plate |
|
8 |
Q40108 |
平垫圈 |
Plain washer |
|
9 |
81.50610.6210 |
自动间隙调整臂（右） |
ASA (right) |
|
|
81.50610.6211 |
自动间隙调整臂（左） |
ASA(left) |
|
10 |
06.56279.0133 |
油封 |
Grease packing |
|
11 |
81.50310.0330 |
凸轮轴支座 |
Camshaft bracket |
|
12 |
Q151B1695 |
六角头螺栓 |
Hex bolt |
|
13 |
81.91020.0318 |
双头螺柱 |
Stud |
|
14 |
06.36959.0014 |
球轴承 |
Ball bearing |
|
15 |
06.29029.0005 |
挡圈 |
Space ring |
|
16 |
81.50308.0011 |
密封圈座 |
Seal seat |
|
|
81.50301.0112 |
制动凸轮轴(右) |
Brake camshaft(right) |
|
17 |
81.50301.0113 |
制动凸轮轴(左) |
Brake camshaft(left) |
|
|
06.38070.0102 |
滑脂嘴 |
Grease nipple |
|
18 |
DZ9112330700 |
桥壳总成 |
Rear axle housing assembly |
|
19 |
DZ9112330720 |
桥壳总成 |
Rear axle housing assembly |
|
|
DZ9112330950 |
桥壳总成 |
Rear axle housing assembly |
|
|
DZ9112330940 |
桥壳总成 |
Rear axle housing assembly |
|
|
DZ9112360310 |
弹簧制动气室 |
Chamber |
|
20 |
Dz9112360330 |
弹簧制动气室 |
Chamber |
|
21 |
1.90004E+11 |
销轴 |
Pin roll |
|
22 |
Q40114 |
平垫圈 |
Plain washer |
|
23 |
Q5004022 |
开口销 |
Cotter pin |
|
24 |
81.50710.0110 |
气室支架 |
Chamber bracket |
|
25 |
Q1811640 |
六角头螺栓 |
Hex bolt |
|
26 |
06.56279.0311 |
油封 |
Grease packing |
|

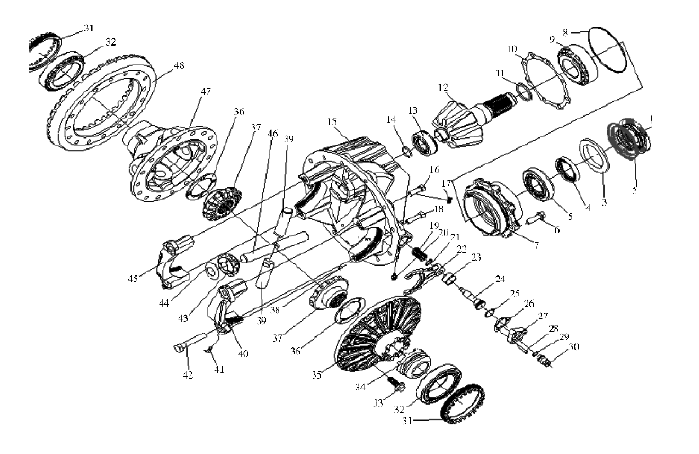

NO. |
Part No. |
Chinese Name |
Part Name |
|
1 |
81.90685.0303 |
凸缘螺母 |
Flange nut |
|
2 |
81.39115.5104 |
凸缘总成 |
