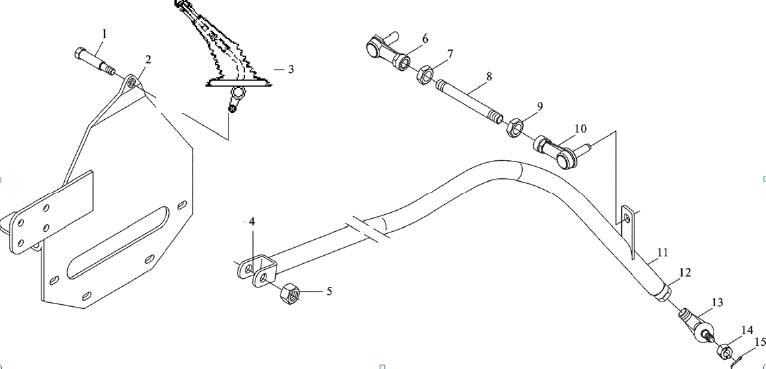

NO. |
Part No. |
Chinese Name |
Part Name |
|
1 |
81.91020.0603 |
销 |
Pin |
|
2 |
DZ9112240296 |
换档杆支架总成 |
Bracket |
|
3 |
81.32670.6184 |
变速杆总成 |
Shift lever |
|
4 |
DZ9114240112 |
铰接叉 |
Reom fork |
|
5 |
Q33212 |
锁紧螺母 |
Ball joint |
|
6 |
199112000000 |
球铰接头 |
Nut（left） |
|
7 |
900.0387.1313 |
六角薄螺母（左旋） |
Bolt |
|
8 |
1-99-951-042 |
螺杆 |
Nut |
|
9 |
Q340B12 |
I 型六角螺母 |
Ball joint |
|
10 |
199100000000 |
球铰接头 |
Draglink |
|
11 |
DZ9112240055 |
换档拉杆 |
Nut |
|
12 |
Q341B14T13F2 |
I 型六角螺母 |
Ball joint |
|
13 |
189000000000 |
球铰接头 |
Nut |
|
14 |
Q387B10 |
六角开槽薄螺母 |
Cotter pin |
|
15 |
Q5002022 |
开口销 |
|
