2015-10-10 15:57:35
|

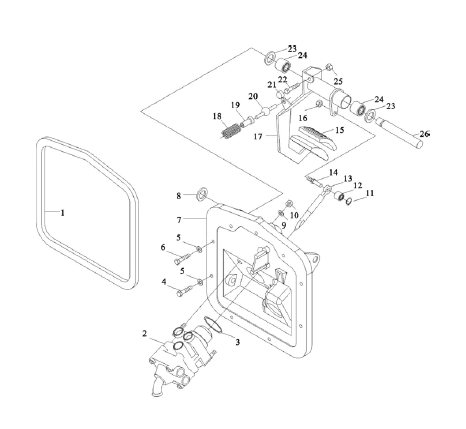

NO. |
Part No. |
Chinese Name |
Part Name |
|
1 |
81.96601.0659 |
衬垫 |
Gasket |
|
2 |
81.52130.6148 |
制动阀 |
brake valve |
|
3 |
06.56341.1241 |
复曲面密封件 |
Toric seal |
|
4 |
06.07069.0008 |
带槽六角有环螺栓 |
Grooved hex collar bolt |
|
5 |
06.15013.0411 |
垫圈 |
Washer |
|
6 |
06.07069.0011 |
带槽六角有环螺栓 |
Grooved hex collar bolt |
|
7 |
81.48220.0106 |
座板支架 |
Pedal bracket |
|
8 |
06.29050.0116 |
垫圈 |
Washer |
|
9 |
06.15013.0411 |
垫圈 |
Washer |
|
10 |
06.11064.2114 |
六角螺母 |
Hexagon nut |
|
11 |
06.29050.0111 |
挡圈 |
Criclip |
|
12 |
06.33719.0018 |
滚针轴承 |
Needle bearing |
|
13 |
81.91020.0610 |
挺杆 |
Tappet |
|
14 |
81.91020.0611 |
螺纹销 |
Threaded pin |
|
15 |
81.48227.0006 |
踏板防尘罩 |
Pedal covering |
|
16 |
06.11240.0406 |
六角锁紧螺母 |
Hex lock nut |
|
17 |
81.48235.5033 |
制动踏板总成 |
Brake pedal assembly |
|
18 |
06.46081.6338 |
压缩弹簧 |
Pressure spring |
|
19 |
81.97680.0019 |
弹簧座 |
Spring seat |
|
20 |
81.48225.0029 |
球销 |
Ball pin |
|
21 |
81.96020.0369 |
橡胶垫 |
Rubber pad |
|
22 |
06.01283.3115 |
六角螺栓 |
Hex.screw |
|
23 |
06.15114.0418 |
调整垫圈 |
Adjusting washer |
|
24 |
06.33719.0005 |
滚针轴承 |
Needle bearing |
|
25 |
06.11064.2114 |
六角螺母 |
Hexagon nut |
|
26 |
81.48210.0033 |
踏板轴 |
Pedal shaft |
