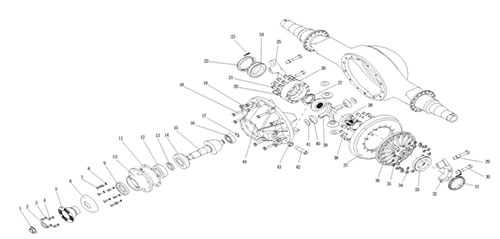

| NO. | Part No. | Quantity | Part Name | Chinese name |
| 1 | WG40X1233 | 1 | Nut | 自锁螺母 |
| 2 | 1229N1730 | 1 | Washer | 垫圈 |
| 3 | Q151C1245TF2 | 4 | Screw | 六角头螺栓10.9级 |
| 4 | 190003888468 | 4 | Nut | 自锁螺母 |
| 5 | AZ9761320381 | 1 | ф165 Toothed flange | 端面齿法兰（Φ165） |
| 6 | 3264P172 | 1 | Shield | 防护罩 |
| 7 | 41X1408 | 8 | Screw | 六角头螺栓 |
| 8 | 1229C1511 | 8 | Shim | 减速器壳与桥壳间的垫片 |
| 9 | A 1205Q2591 | 1 | Gasket | 油封总成 |
| 10 | AZ9761320002 | 1 | Bearing housing | 轴承座带轴承外环总成 |
| 11 | 2803Y2755 | 4 | Shim | 垫片-主动锥齿轮轴承座 |
| 2803Z2756 | 3 | Shim | 垫片-主动锥齿轮轴承座 | |
| 2803A2757 | 4 | Shim | 垫片-主动锥齿轮轴承座 | |
| 2803B2758 | 1 | Shim | 垫片-主动锥齿轮轴承座 | |
| 12 | H715311-H715334 | 1 | Bearing | 轴承外圈-轴承内圈 |
| 13 | S 2203H8536 | 1 | Shim | 调整垫片组 |
| 14 | 9220-9278 | 1 | Bearing | 轴承外圈-轴承内圈 |
| 15 | AZ9118320024 | 1 | Pinion gear | 主动锥齿轮（下偏置25.4，齿数9） |
| 16 | WG1228S1267 | 1 | Bearing | 滚柱轴承 |
| 17 | 1229L1624 | 1 | Gasket | 轴用挡圈 |
| 18 | MS216120 1 | 6 | Screw | 六角头螺栓（B-020M） |
| 19 | MS216060 1 | 8 | Screw | 六角头螺栓（B-020M） |
| 20 | 1229U1503 | 12 | Washer | 平垫圈 |
| 21 | WG41X1275 | 12 | Screw | 差速器壳联接螺栓（12.9级） |
| 22 | 2214S1137 | 1 | Screwed ring | 差速器轴承调整螺母成品 |
| 23 | 1199R2176 | 1 | Split pin | 开口销-调整环锁止 |
| 24 | JM822010-JM822049 | 1 | Bearing | 轴承外圈-轴承内圈 |
| 25 | A 3212X1194 | 1 | Bearing housing | 轴承盖总成 |
| 26 | 3235F2138 | 1 | Diff.housing | 差速器半壳(不带法兰) |
| 27 | 1229L3002 | 2 | Shim | 止推垫片 |
| 28 | 2234Z1066 | 2 | Bevel pinion | 半轴齿轮 |
| 29 | 42X1024 | 4 | Washer | 垫圈 |
| 30 | 41X1018 | 4 | Screw | 六角头螺栓(10.9级) |
| 31 | 2214G1125 | 1 | Screwed ring | 差速器轴承调整螺母成品 |
| 32 | A 3212Z1196 | 1 | Bearing housing | 轴承盖总成 |
| 33 | NP022042-NP579116 | 1 | Bearing | 轴承外圈-轴承内圈 |
| 34 | WG40X1182 | 16 | Nut | 自锁螺母-GB3098.2 12.0级 |
| 35 | 1229W1557 | 16 | Washer | 平垫圈 |
| 36 | AZ9761322143 | 1 | Diff.housing | 差速器半壳（带法兰） |
| 37 | AZ9118320025 | 1 | Ring gear | 从动锥齿轮（下偏置25.4，齿数38） |
| 38 | AZ9118321334 | 16 | Screw | 被动锥齿轮联接螺栓（12.9级） |
| 39 | 3278W335 | 1 | Diff.spider | 差速器十字轴成品 |
| 40 | AZ9118321001 | 4 | Bevel pinion | 差速器行星齿轮成品 |
| 41 | 1229K3001 |
