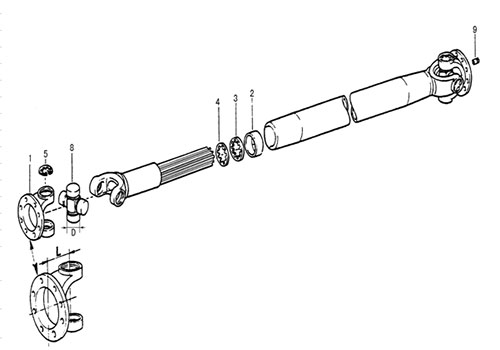

| NO. | Part No. | Part Name | Quantity |
| 1 | AZ9115311010 | φ180 tooth flange | 2 |
| 2 | AZ9115311055 | scraper(don't supply separately) | 1 |
| 3 | AZ9115311053 | gasket(don't supply separately) | 1 |
| 4 | AZ9115311052 | spacer(don't supply separately) | 1 |
| 5 | AZ9115311063 | circlip (don't supply separately) | 1 |
| 5 | AZ9115311064 | circlip (don't supply separately) | 1 |
| 5 | AZ9115311066 | circlip (don't supply separately) | 1 |
| 5 | AZ9115311067 | circlip (don't supply separately) | 1 |
| 5 | AZ9115311071 | circlip (don't supply separately) | 1 |
| 8 | WG9725310010 | spider(don't supply separately) | 2 |
| 9 | 26013311098 | overpressure valve | 1 |
| 1 | 26013314062 | φ165 flange | 2 |
| 2 | 26013315024 | scraper(don't supply separately) | 1 |
| 3 | 26013315023 | gasket(don't supply separately) | 1 |
| 4 | 26013315022 | spacer(don't supply separately) | 1 |
| 5 | 26013314063 | circlip (don't supply separately) | 1 |
| 5 | 26013314064 | circlip (don't supply separately) | 1 |
| 5 | 26013314065 | circlip (don't supply separately) | 1 |
| 5 | 26013314066 | circlip (don't supply separately) | 1 |
| 5 | 26013314067 | circlip (don't supply separately) | 1 |
| 8 | 26013314080 | spider(don't supply separately) | 2 |
| 9 | 26013311098 | overpressure valve | 1 |
