226B SERIES OF AGRICULTURAL
OIL PAN ASSEMBLY

2015-11-18 19:27:11

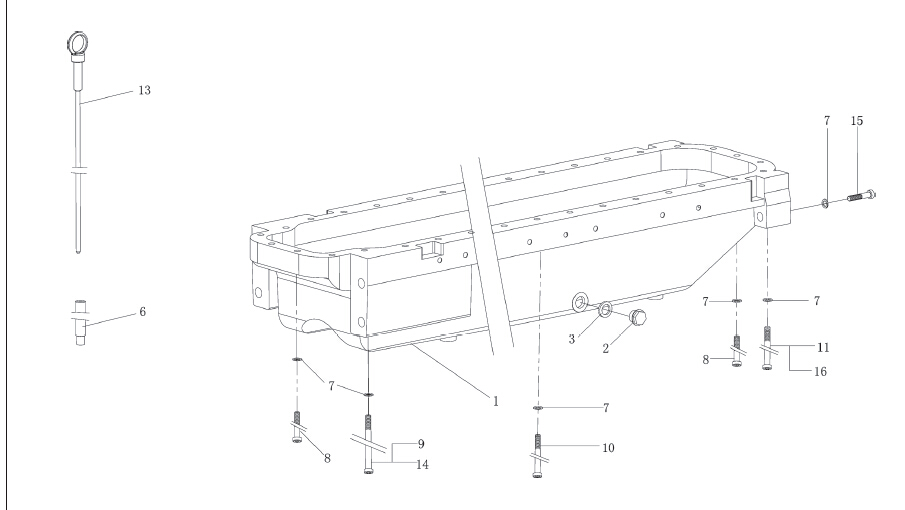

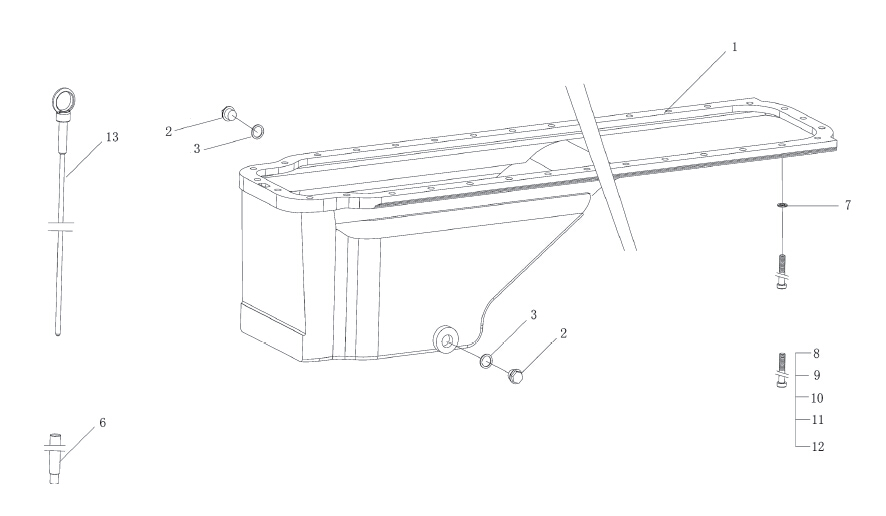

 NO. Part No. Chinese Name Part Name
1 13022829 油底壳 OIL PAN
  13024046 油底壳 OIL PAN
  13031186 油底壳 OIL PAN
  13022057 油底壳 OIL PAN
  13021554 油底壳 OIL PAN
  13023018 油底壳 OIL PAN
  13020252 油底壳 OIL PAN
  13022743 油底壳 OIL PAN
  13027075 油底壳 OIL PAN
  13022884 油底壳 OIL PAN
2 1110445 六角头螺塞 SCREW PLUG
  1133632 六角头螺塞 SCREW PLUG
  13022897 方头螺塞 SEALING RING
  13022969 六角头螺塞 SEALING RING
3 13023364 (组合)密封垫圈 SEALING RING
  13023361 (组合)密封垫圈 SEALING RING
  13023360 (组合)密封垫圈 SEALING RING
  1124011 (组合)密封垫圈 SEALING RING
6 12190556 油尺管 TUBE
  13020273 油尺管 TUBE
  13024739 油尺管 TUBE
  13028049 油尺管 TUBE
6 13022829 油尺管 TUBE
7 1177981 弹簧垫圈 SPRING LOCK WASHER
  1132562 平垫片 PLAIN WASHER
8 1151500 内六角圆柱头螺钉 CHEESE HEAD SCREW
  13024226 内六角圆柱头螺钉 CHEESE HEAD SCREW
  13024227 内六角圆柱头螺钉 CHEESE HEAD SCREW
  111151 六角头螺栓 HEXAGON BOLT
  1137083 六角头螺栓 HEXAGON BOLT
  1151569 六角头螺栓 HEXAGON BOLT
9 1110638 内六角圆柱头螺钉 CHEESE HEAD SCREW
  13024227 内六角圆柱头螺钉 CHEESE HEAD SCREW
  1110590 内六角圆柱头螺钉 CHEESE HEAD SCREW
  1111142 六角头螺栓 HEXAGON BOLT
  1112238 六角头螺栓 HEXAGON BOLT
10 1151507 内六角圆柱头螺钉 CHEESE HEAD SCREW
  13022514 内六角圆柱头螺钉 CHEESE HEAD SCREW
11 1152814 内六角圆柱头螺钉 CHEESE HEAD SCREW
  112339 六角头螺栓 HEXAGON BOLT
12 13024620 内六角圆柱头螺钉 CHEESE HEAD SCREW
13 12270457 油标尺 DIPSTICK
  12270444 油标尺 DIPSTICK
  12270440 油标尺 DIPSTICK
  13028050 油标尺 DIPSTICK
  12272672 油标尺 DIPSTICK
  13024738 油标尺 DIPSTICK
  13022965 油标尺 DIPSTICK
14 1154879 内六角圆柱头螺钉 CHEESE HEAD SCREW
15 1154885 内六角圆柱头螺钉 CHEESE HEAD SCREW
  1152861 内六角圆柱头螺钉 CHEESE HEAD SCREW
16 1152347 内六角圆柱头螺钉 CHEESE HEAD SCREW
