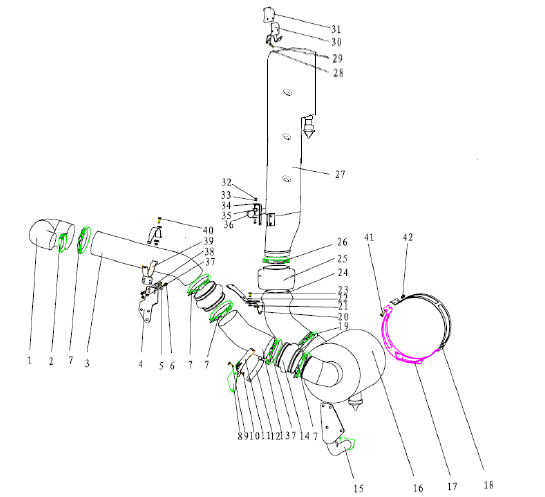

NO. |
Part No. |
Chinese Name |
Part Name |
|
1 |
DZ9100190086 |
弯管 |
Syphon |
|
2 |
DZ9003532122 |
T型卡箍 |
T Shape clip |
|
3 |
DZ9114190382 |
增压器进气管 |
Air intake pipe |
|
4 |
DZ9114190445 |
进气管支架 |
Bracket |
|
5 |
Q150B1025 |
六角头螺栓 |
Hex screw |
|
6 |
Q40210 |
大垫圈 |
Washer |
|
7 |
DZ9003532173 |
T型卡箍 |
T Shape clip |
|
8 |
DZ9112190362 |
支架 |
Bracket |
|
9 |
Q150B1430 |
六角头螺栓 |
Hex screw |
|
10 |
Q33214 |
2 型全金属六角锁紧螺母 |
Hex nut |
|
11 |
DZ9114190460 |
支架总成 |
Bracket |
|
12 |
DZ9114190363 |
卡箍 |
Clip |
|
13 |
DZ9114190381 |
空滤器出气管 |
Pipe |
|
14 |
DZ9100190085 |
波纹管 |
Hose pipe |
|
15 |
DZ9112190175 |
空滤器支架总成 |
Bracket |
|
16 |
DZ9112190093 |
空滤器总成 |
Air cleaner |
|
17 |
DZ9112190091 |
空滤器下固定夹 |
Bracket (lower) |
|
18 |
DZ9112190092 |
空滤器上固定夹 |
Bracket (upper) |
|
19 |
1.90004E+11 |
软管卡箍 |
Clip |
|
20 |
81.08240.0214 |
L 型短支架 |
L shape bracket |
|
21 |
Q150B0820 |
六角头螺栓 |
Hex screw |
|
22 |
81.08240.0213 |
支架 |
Bracket |
|
23 |
Q33208 |
2 型全金属六角锁紧螺母 |
Hex nut |
|
24 |
DZ9118190190 |
空滤器连接管总成 |
Hose |
|
25 |
DZ9118190191 |
进气扁管波纹接管 |
Screw pipe |
|
26 |
DZ9003980001 |
卡箍A181-200
M7.751-30 |
Clip |
|
27 |
81.08201.6053 |
进气管带支架总成 |
Intake pipe assembly |
|
28 |
1384D 410007 |
橡胶金属软垫 |
Pad |
|
29 |
Q2610860 |
六角头自攻锁紧螺钉 |
Locking screw |
|
30 |
81.08240.5201 |
蝴蝶支架 |
Bracket |
|
31 |
81.62940.5011 |
上垫板 |
Up plate |
|
32 |
Q340B08 |
1 型六角螺母 |
Hex nut |
|
33 |
Q40308 |
弹簧垫圈 |
Spring washer |
|
34 |
81.97488.0120 |
L型支架 |
L shape bracket |
|
35 |
81.96210.0289 |
缓冲块 |
Cushion block |
|
36 |
81.08240.0215 |
扁管托架 |
Bracket |
|
|
|
|
|
|
