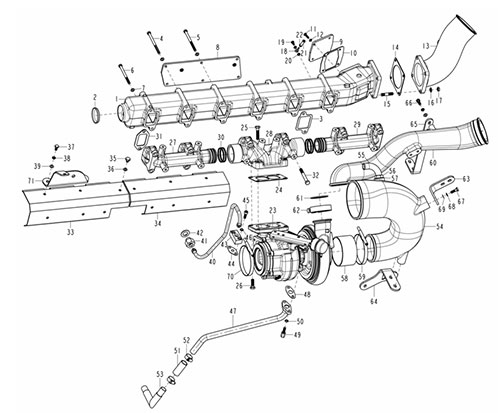

| NO. | Part no | Part Name | Chinese name |
| 1 | VG1246110002 | 进气管 | Intake manifold |
| 2 | 190003989286 | 碗形塞 | Core hole plug |
| 3 | VG1246110006 | 进气管垫片 | Gasket |
| 4 | Q150B08125 | 六角头螺栓 | Hex head bolt |
| 5 | Q150B08115 | 六角头螺栓 | Hex head bolt |
| 6 | Q150B08110 | 六角头螺栓 | Hex head bolt |
| 7 | Q41808 | 波形弹簧垫圈 | Spring washer |
| 8 | VG1246110044 | 共轨支架总成 | Bracket |
| 9 | VG1540110011A | 进气管盖板 | Intake manifold cover |
| 10 | VG1540110018A | 进气管盖板垫片 | Gasket |
| 11 | Q150B0620 | 六角头螺栓 | Hex head bolt |
| 12 | Q41806 | 波形垫片 | Spring washer |
| 13 | VG1246110100 | 进气接管 | Intake pipe connector |
| VG1246110093 | 进气接管 | Intake pipe connector | |
| 14 | VG1560110180 | 进气接管垫片 | Gasket |
| 15 | Q1201030F3 | 双头螺柱 | Stud |
| 16 | Q41810 | 波形弹性垫圈 | Spring washer |
| 17 | Q340B10 | 六角螺母 | Hexagon nut |
| 18 | VG1540110038 | 管接头 | Pipe tie-in |
| 19 | VG1540110037 | 空心螺栓 | Hollow bolt |
| 20 | VG9003080003 | 复合密封垫圈 | Sealing washer |
| 21 | VG1246110106 | 橡胶软管 | Hose |
| 22 | 190003989300 | 软管卡箍 | Pipe clip |
| 23 | VG1246110021 | 增压器 | Turbocharger |
| 24 | VG1540110017 | 增压器垫片 | Gasket |
| 25 | VG1500110002 | 耐热螺栓 | Bolt |
| 26 | VG1246110058 | 增压器螺栓 | Bolt |
| 27 | VG1246110108 | 前排气岐管 | Front exhaust manifold |
| 28 | VG1246110109 | 中排气岐管 | Mid exhaust manifold |
| 29 | VG1246110110 | 后排气歧管 | Rear exhaust manifold |
| 30 | VG1246110027 | 排气管密封环 | Laminated sealing ring |
| 31 | VG1246110028 | 排气管垫片 | Gasket |
| 32 | VG1246110052 | 排气管紧固螺栓 | Bolt |
| 33 | VG1246110111 | 后排气管隔热罩 | Rear heat insulation cover |
| 34 | VG1246110112 | 前排气管隔热罩 | Front heat insulation cover |
| 35 | VG1500110963 | 耐热螺栓 | Bolt |
| 36 | Q40208 | 大垫圈 | Washer |
| 37 | VG1246110113 | 耐热螺栓 | Bolt |
| 38 | Q40308 | 弹簧垫圈 | Spring washer |
| 39 | Q40108 | 平垫圈 | Washer |
| 40 | VG1246110053 | 增压器进油管总成 | Oil supply pipe assembly |
| 41 | VG1246110046 | 进油管座 | Two bolt flange |
| 42 | VG9003080007 | 复合密封垫圈 | Sealing washer |
| 43 | VG1560110152 | 进油管法兰 | Flange |
| 44 | VG609E110050 | 进油管垫片 | Gasket |
| 45 | Q218B0825 | 内六角圆柱头螺钉 | Socket bolt |
| 46 | VG188250083 | 自锁垫圈 | Retaining ring |
| 47 | VG1246110055 | 增压器回油管总成 | Oil return pipe assembly |
| 48 | VG2600110048 | 回油管法兰垫片 | Gasket |
| 49 | VG1460070014 | 回油管螺栓 | Bolt |
| 50 | VG188250083 | 自锁垫圈 | Retaining ring |
| 51 | VG2600070071 | 增压器回油用软管 | Oil return tube assemble |
| 52 | 190003989301 | 软管卡箍 | Pipe clip |
| 53 |
