2015-10-10 14:53:51
|

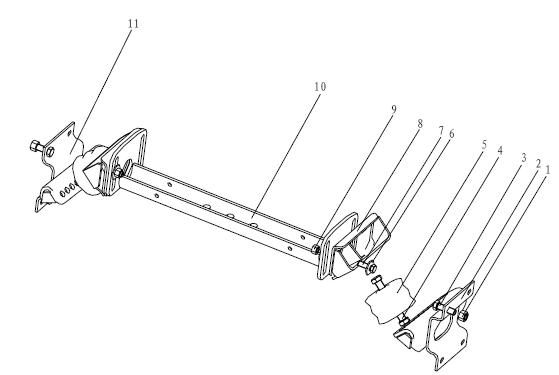

NO. |
Part No. |
Chinese Name |
Part Name |
|
1 |
Q33214 |
2 型全金属六角缩紧螺 |
Hex lock nut |
|
2 |
DZ93259594100 |
母 |
Left bracket |
|
3 |
Q150B1435 |
左支架总成 |
Hex lock screw |
|
4 |
Q150B1620 |
六角头螺栓 |
Hex lock screw |
|
5 |
DZ9114590125 |
六角头螺栓 |
Rubber pad |
|
6 |
Q40212 |
橡胶缓冲块 |
Washer |
|
7 |
Q150B1235 |
大垫圈 |
Hex lock screw |
|
8 |
81.41506.5269 |
六角头螺栓 |
Support bracket |
|
9 |
Q33212 |
托架 |
Hex lock nut |
|
10 |
DZ9112590889 |
2 型全金属六角缩紧螺 |
Cross member assy |
|
11 |
DZ93259594101 |
母 |
Right bracket |
|
|
|
横梁总成 |
|
|
|
|
右支架总成 |
|
|

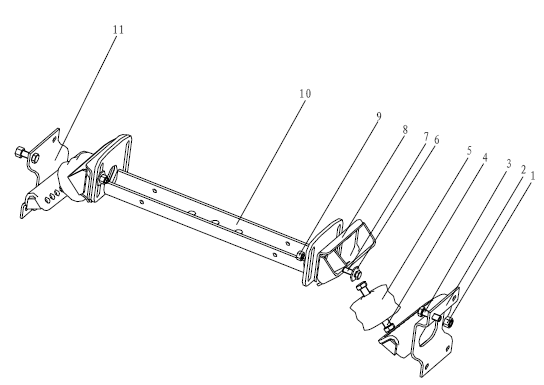

NO. |
Part No. |
Chinese Name |
Part Name |
|
1 |
Q33214 |
2 型全金属六角缩紧螺 |
Hex lock nut |
|
2 |
DZ9118593007 |
母 |
Left bracket |
|
3 |
Q150B1435 |
左支架总成 |
Hex lock screw |
|
4 |
Q150B1620 |
六角头螺栓 |
Hex lock screw |
|
5 |
DZ9114590125 |
六角头螺栓 |
Rubber pad |
|
6 |
Q40212 |
橡胶缓冲块 |
Washer |
|
7 |
Q150B1235 |
大垫圈 |
Hex lock screw |
|
8 |
81.41506.5269 |
六角头螺栓 |
Support bracket |
|
9 |
Q33212 |
托架 |
Hex lock nut |
|
10 |
DZ95259590060 |
2 型全金属六角缩紧螺 |
Cross member
assy |
|
11 |
DZ9118593008 |
母 |
Right bracket |
|
横梁总成 |
|||
|
右支架总成 |
|

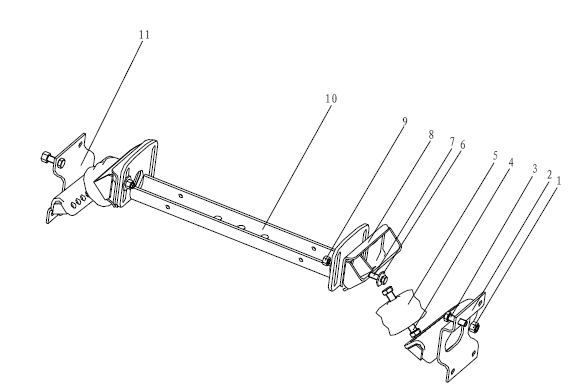

NO. |
Part No. |
Chinese Name |
Part Name |
|
1 |
Q33214 |
2 型全金属六角缩紧螺母 |
Hex lock nut |
|
2 |
DZ9112590883 |
左支架总成 |
Left bracket |
|
3 |
Q150B1435 |
六角头螺栓 |
Hex lock screw |
|
4 |
Q150B1620 |
六角头螺栓 |
Hex lock screw |
|
5 |
DZ9114590125 |
橡胶缓冲块 |
Rubber pad |
|
6 |
Q40212 |
大垫圈 |
Washer |
|
7 |
Q150B1235 |
六角头螺栓 |
Hex lock screw |
|
8 |
81.41506.5269 |
托架 |
Support bracket |
|
9 |
Q33212 |
2 型全金属六角缩紧螺母 |
Hex lock nut |
|
10 |
DZ9112590885 |
横梁总成 |
Cross member assy |
|
11 |
DZ9112590884 |
右支架总成 |
Right bracket |
|
