2015-04-15 11:40:00

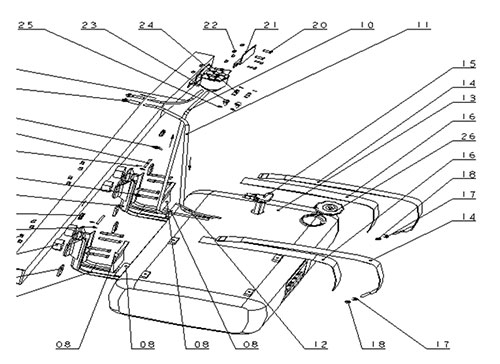

| NO. | Part No. | Quantity | Part Name | Chinese Name |
| 1 | 190003179045 | 320mm | Protective plastic sleeve | 穿线护套 |
| 2 | WG9725550026 | 2 | Hose connector | 管接头(16X2-M14) |
| 3 | Q33214 | 8 | Nut | 自锁螺母 |
| 4 | WG9925550010 | 2 | Tank mounting | 油箱支架总成 |
| 5 | Q5004020 | 2 | Split pin | 开口销 |
| 6 | Q5101275 | 2 | Bolt | 销轴 |
| 7 | Q150B1490 | 8 | Screw | 六角头螺栓 |
| 8 | WG9725550202 | 4 | Tank rubber pad | 橡胶垫 |
| 9 | 190003171697 | 6 | Cable binder | 塑料紧箍带 |
| 10 | AZ9725550121 | 400cm | Return line | 聚酰胺管 |
| 11 | AZ9725550121 | 400cm | Suction line | 聚酰胺管 |
| 12 | AZ9112550121 | 50cm | Pipe | 聚酰胺管 |
| 13 | WG9925550025 | 1 | 400L fuel tank | 400L铝合金踏板油箱(700X700) |
| 14 | WG9925550027 | 2 | Strap | 拉带总成 |
| 15 | WG9925550002 | 1 | Fuel gauge | 油位传感器 |
| 16 | WG9925550026 | 2 | Base | 垫带 |
| 17 | Q40112 | 2 | Washer | 垫圈 |
| 18 | Q33212 | 2 | Nut | 螺母 |
| 19 | AZ9725550121 | 150cm | Return line | 聚酰胺管 |
| 20 | Q150B1030 | 4 | Screw | 六角头螺栓 |
| 21 | AZ9925550080 | 1 | Preliminary filter bracket | 油水分离器支架总成 |
| 22 | Q33210 | 4 | Nut | 2型全金属六角锁紧螺母 |
| 23 | WG9725550025 | 2 | Hose connector | 管接头(16X2-M16) |
| 24 | 190003962627 | 2 | Hollow screw | 空心螺栓 |
| 25 | Q72316T5F | 4 | Washer | 密封垫圈 |
| 26 | WG9925550003 | 1 | Locking filler cap | 燃油箱锁盖总成 |
| 27 | AZ9925550036 | 4 | pad | 垫板 |
| 28 | AZ9925550003 | 4 | Pressure pad | 压板 |
| 29 | Q40112 | 2 | Washer | 垫圈 |
