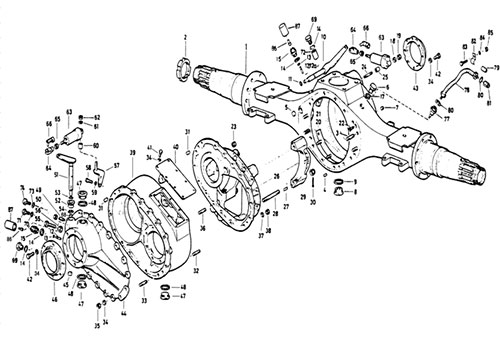

| NO. | Part No. | Part Name | Quantity |
| 0 | AH71131540523 | First rear axle | 1 |
| 1 | AZ9231332208 | Fir.rear axle housing | 1 |
| 2 | WG680340013 | Nut | 2 |
| 3 | 190003810631 | Stud | 4 |
| 4 | Q5211016 | Pin | 1 |
| 5 | 190003989290 | Core plug | 1 |
| 6 | 199000330006 | Breather | 1 |
| 7 | 190003962021 | Screw | 2 |
| 8 | 1586 330015 | Magnet plug | 1 |
| 9 | Q72336 | Gasket | 1 |
| 10 | WG9014330126 | Lever | 1 |
| 11 | 1680M 320015 | O-ring | 1 |
| 12 | WG69000330008 | Pin | 1 |
| 12 | WG69000330009 | Pin | 1 |
| 12 | WG9100330010 | Pin | 2 |
| 13 | Q72318 T5F | Gasket | 2 |
| 14 | Q72318 T5F | Gasket | 2 |
| 15 | WG9100710003 | Pressure switch | 1 |
| 18 | Q40108 | Washer | 1 |
| 19 | Q33208 | Nut | 1 |
| 20 | WG9014330146 | Connecting clip below | 1 |
| 21 | WG9014330147 | Connecting clip above | 1 |
| 22 | Q2540820 | Screw | 4 |
| 23 | 190003888457 | Nut | 16 |
| 24 | Q1200850F3 | Stud | 1 |
| 25 | WG61000060084 | Sleeve | 1 |
| 26 | WG9014320120 | Housing for 1st rear axle driver | 1 |
| 27 | Q5210820 | Pin | 4 |
| 28 | Q12316120 | Stud | 4 |
| 29 | 190003888459 | Nut | 4 |
| 31 | Q5211016 | Pin | 4 |
| 32 | 190003813628 | Stud | 14 |
| 33 | Q1201028F3 | Stud | 18 |
| 34 | Q40310 | Spring washer | 34 |
| 35 | Q340B10 | Nut | 18 |
| 36 | Q1201225F3 | Stud | 4 |
| 37 | Q40312 | Spring washer | 18 |
| 38 | Q340B12 | Nut | 18 |
| 39 | 199014320259 | Housing | 1 |
| 39/A | WG9014320259 | Housing | 1 |
| 39/A | AZ9231320259 | Housing | 1 |
| 40 | WG9014320118 | Cover | 1 |
| 41 | Q150B1020Q | Screw | 8 |
| 42 | Q150B1025 | Screw | 8 |
| 43 | WG9014320141 | Cover | 1 |
| 43/A | WG9014320129 | Cover | 1 |
| 44 | AZ9231320264 | Cover | 1 |
| 44/A | WG9014320144 | Cover | 1 |
| 45 | 190003989290 | Core plug | 1 |
| 46 | WG9014320175 | Cover | 1 |
| 47 | 1586 33 15 | Magenet plug | 2 |
| 47A | WG81500010163 | Plug | 1 |
| 48 | Q72336 | Gasket | 3 |
| 49 | 190003902070 |
