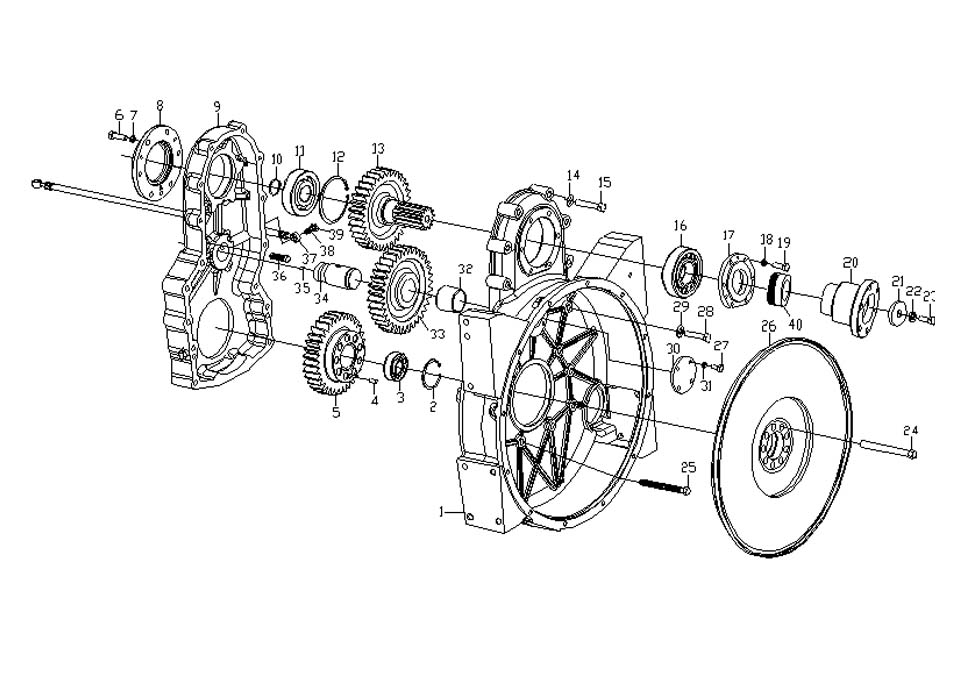

| NO. | Part no | Part Name | Chinese name |
| 1 | AZ1500019035 | Flywheel housing | 后取力飞轮壳 |
| 2 | 190003934310 | Retaining ring | 孔用弹性挡圈 |
| 3 | 190003311416 | Bearing | 轴承 |
| 4 | 190003901418 | Dowel | 定位销 |
| 5 | VG1500019014 | Crankshaft gear | 曲轴齿轮 |
| 6 | 190003802527 | Hex head bolt | 六角头螺栓 |
| 7 | 190003931122 | Spring lockwasher | 弹簧垫圈 |
| 8 | VG1500019024 | Bearing cover | 轴承盖 |
| 9 | AZ1500019031 | Power take-off housing | 取力器壳 |
| 10 | 190003933251 | Retaining ring | 轴用弹性挡圈 |
| 11 | AZ9003320122 | Roller bearing | 滚动轴承 |
| 12 | 190014570001 | Retaining ring | 孔用弹性挡圈 |
| 13 | VG1500019015A | Gear | 输出齿轮 |
| 14 | 190003932016 | Wave spring washer | 波形弹性垫圈 |
| 15 | 190011350066 | Hex head bolt | 六角头螺栓 |
| 16 | AZ9003320120 | Roller bearing | 滚动轴承 |
| 17 | VG1500019023A | Oil seal carrier | 油封座 |
| 18 | 190003931122 | Spring lockwasher | 弹簧垫圈 |
| 19 | 190003802527 | Hex head bolt | 六角头螺栓 |
| 20 | VG1500019025A | Flange | 输出法兰 |
| 21 | VG1500019026 | Clamp | 输出法兰紧固板 |
| 22 | 190003931162 | Spring lockwasher | 弹簧垫圈 |
| 23 | 190011270032 | Hex head bolt | 六角头螺栓 |
| 24 | VG1500029046 | Hex head bolt | 六角头螺栓 |
| 25 | VG1500019027 | Bolt | 飞轮壳螺栓 |
| VG1500019011 | Bolt | 飞轮壳螺栓 | |
| 26 | AZ1500029041 | Flywheel | 飞轮 |
| AZ1500029023 | Flywheel | 16孔飞轮 | |
| 27 | 190003802419 | Hex head bolt | 六角头螺栓 |
| 28 | 190011350058 | Hex head bolt | 六角头螺栓 |
| 29 | 190003932016 | Wave spring washer | 波形弹性垫圈 |
| 30 | VG1500019022 | Idler gear shaft cover | 中间齿轮轴盖板 |
| 31 | 190003931102 | Spring lockwasher | 弹簧垫圈 |
| 32 | VG1500019017 | Bush | 衬套 |
| 33 | VG1500019016 | Idler gear | 中间齿轮 |
| 34 | VG1500019033 | Idler gear shaft | 中间齿轮轴 |
| 35 | VG1500019034 | Plug | 油孔堵头 |
| 36 | VG1500019028 | Bolt | 飞轮壳螺栓 |
| VG1500019012 | Bolt | 飞轮壳螺栓 | |
| 37 | VG1500019029 | Oil pipe | 润滑油管总成 |
| 38 | VG9003080003 | Sealing washer | 复合密封垫圈 |
| 39 | 190003962607 | Hollow bolt | 空心螺栓 |
| 40 | VG1500019040 | Bush | 油封衬套 |
