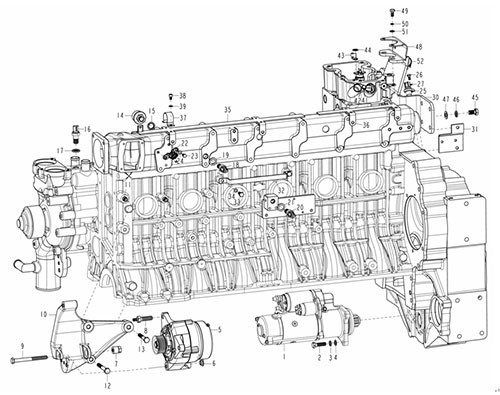

| NO. | Part no | Part name | Chinese name |
| 1 | VG1246090003 | 起动机 | Starter motor |
| 2 | Q150B1035 | 六角头螺栓 | Hex head bolt |
| 3 | Q40310 | 弹簧垫圈 | Spring washer |
| 4 | Q40110 | 平垫圈 | Washer |
| 5 | VG1246090005 | 发电机 | Alternator |
| 6 | VG1246090006 | 轴套 | Bush |
| 7 | VG1246090007 | 隔套 | Positioning nut |
| 8 | VG1246090027 | 双头螺栓 | Bolt |
| 9 | Q150B10110 | 六角头螺栓 | Hex head bolt |
| 10 | VG1246090008 | 发电机支架 | Bracket |
| 11 | VG1246090009 | 定位套 | Positioning bush |
| 12 | Q150B1075 | 六角头螺栓 | Hex head bolt |
| 13 | Q150B1060 | 六角头螺栓 | Hex head bolt |
| 14 | VG1092090311 | 电子机油压力传感器 | Pressure sensor |
| 15 | VG9003080007 | 复合密封垫圈 | Sealing washer |
| 16 | R61540090004 | 冷却水温度传感器 | Coolant temp. sensor |
| 17 | VG9003080006 | 复合密封垫圈 | Sealing washer |
| 18 | R61540090003 | 进气温度传感器 | Intake air temp. sensor |
| 19 | VG9003080006 | 复合密封垫圈 | Sealing washer |
| 20 | R61540090005 | 柴油温度传感器 | Fuel temp. sensor |
| 21 | VG1540090006 | 传感器密封圈 | Sealing washer |
| 22 | R61540090007 | 进气压力传感器 | Pressure sensor |
| 23 | Q150B0616 | 六角头螺栓 | Hex head bolt |
| 24 | Q41806 | 波形垫片 | Spring washer |
| 25 | R61540090008 | 曲轴转速传感器 | Crankshaft speed sensor |
| 26 | Q150B0612 | 六角头螺栓 | Hex head bolt |
| 27 | Q41806 | 波形垫片 | Spring washer |
| 28 | R61540090002 | ECU控制总成 | ECU assembly |
| 29 | VG1246090031 | 线束总成 | Wire harness |
| VG1246090032A | 线束总成 | Wire harness | |
| 30 | VG1246110206 | 空滤支架 | Air cleaner bracket |
| 31 | VG1246090034 | 线束支架Ⅱ | Bracket |
| 32 | VG1246090035 | 线束支架Ⅲ | Bracket |
| 33 | Q150B0816 | 六角头螺栓 | Hex head bolt |
| 34 | Q41808 | 波形弹簧垫圈 | Spring washer |
| 35 | VG1246090024 | 线束支架Ⅳ | Bracket |
| 36 | VG1246090025 | 线束支架Ⅴ | Bracket |
| 37 | VG1246090037 | 卡箍 | Clamp |
| 38 | Q218B0610 | 内六角圆柱头螺钉 | Socket bolt |
| 39 | Q41806 | 波形垫片 | Spring washer |
| 40 | VG1099090004 | 单耳喷油器线束（两线） | Fuel injector wire harness |
| 41 | Q150B0612 | 六角头螺栓 | Hex head bolt |
| 42 | Q41806 | 波形垫片 | Spring washer |
| 43 | VG1246090030 | 喷油器线束支架 | Bracket |
| 44 | Q41810 | 波形弹性垫圈 | Spring washer |
| 45 | Q150B1228 | 六角头螺栓 | Hex head bolt |
| 46 | Q40312 | 弹簧垫圈 | Spring washer |
| 47 | Q40112 | 平垫圈 | Washer |
| 48 | VG1246090042 | 线束支架 | Bracket |
| 49 | Q150B0825 | 六角头螺栓 | Hex head bolt |
| 50 | Q40308 | 弹簧垫圈 | Spring washer |
| 51 | Q40108 | 平垫圈 | Washer |
| 52 | 190003171390 | 塑料紧固带 | Plastic fastening tape |
